产品编号: 9434

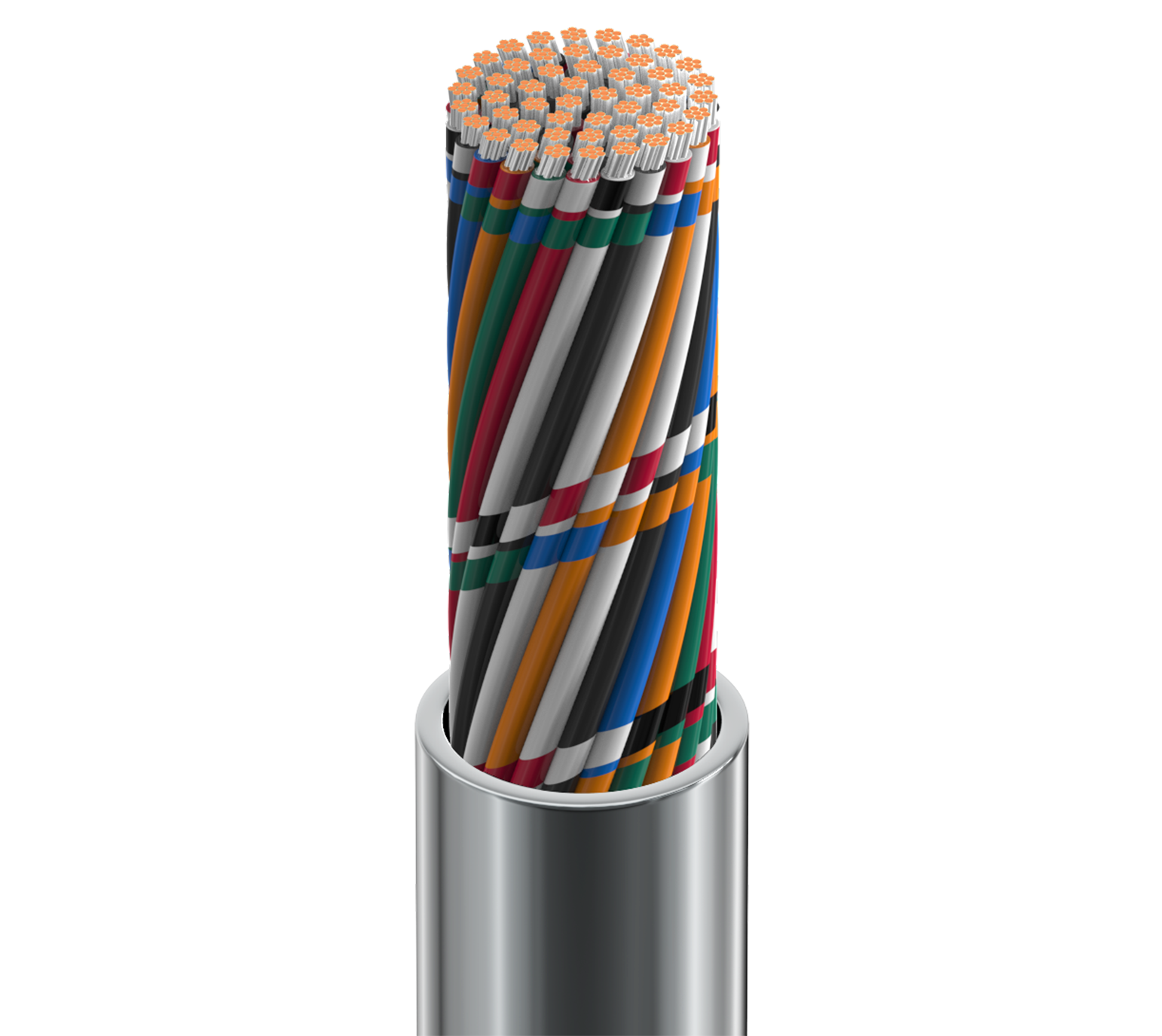

电子，50 C #22 Str TC，PVC Ins，PVC Jkt，CMG

电子，50 导体 22AWG (7x30) 镀锡铜，PVC 绝缘，PVC 外护套，CMG

  • 上架时间:
    全球
  • 状态:
    有源
9434
  • 9434
1 的 1

规格

Expand All

适合应用

低压模拟信号（4-20ma、0-10v、...）；低压控制（24v、√）；线路电平音频；语音通信；面板接线

导体

Element No. of Elements Size Stranding Material
Conductor(s) 50 22 AWG 7x30 TC - Tinned Copper

绝缘

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.050 in (1.3 mm) Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes

外层护套

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.045 in (1.1 mm) 0.500 in (12.7 mm)

线缆外廓直径（标称）

0.500 in (12.7 mm)

电气设备

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Inductance Max. Current
Conductor(s) 15.6 Ohm/1000ft 34 pF/ft (110 pF/m) 0.17 µH/ft (0.56 µH/m) 1.2 Amps per Conductor at 25ºC

电压

UL Voltage Rating
300 V (CMG), 150 V (UL AWM 2576)

温度

UL Temperature Operating
80°C -20°C to +80°C

弯曲半径

Stationary Min. Installation Min.
5.0 in (130 mm) 5.0 in (130 mm)

最大拉伸张力

455 lb (206 kg)

线缆毛重

187 磅/1000 英尺

环境适应性

室内（非立管或静压室等级），室内

阻燃性/遇火反应

UL 1685 FT4 装载，FT4

CPR合规性

CPR Euroclass：Eca

NEC/UL合规性

《中央政府采购法》第 800 条

AWM合规性

AWM 2576

CEC / C（UL）合规性

CMG

欧洲指令合规性

欧盟 CE 标志、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

英国监管合规性

UKCA标识

APAC合规性

中国 RoHS II (GB/T 26572-2011)

更新和修订

修订编号：0.506 修订日期：09-07-2025

脚注

C——采用木线盘收线。

更新和修订

修订编号：0.506 修订日期：09-07-2025

脚注

C——采用木线盘收线。

Report An Error

零件编号

货号 颜色 UPC 脚注
9434 0601000 铬黄 612825245933 C
9434 060500 铬黄 612825245940 C
