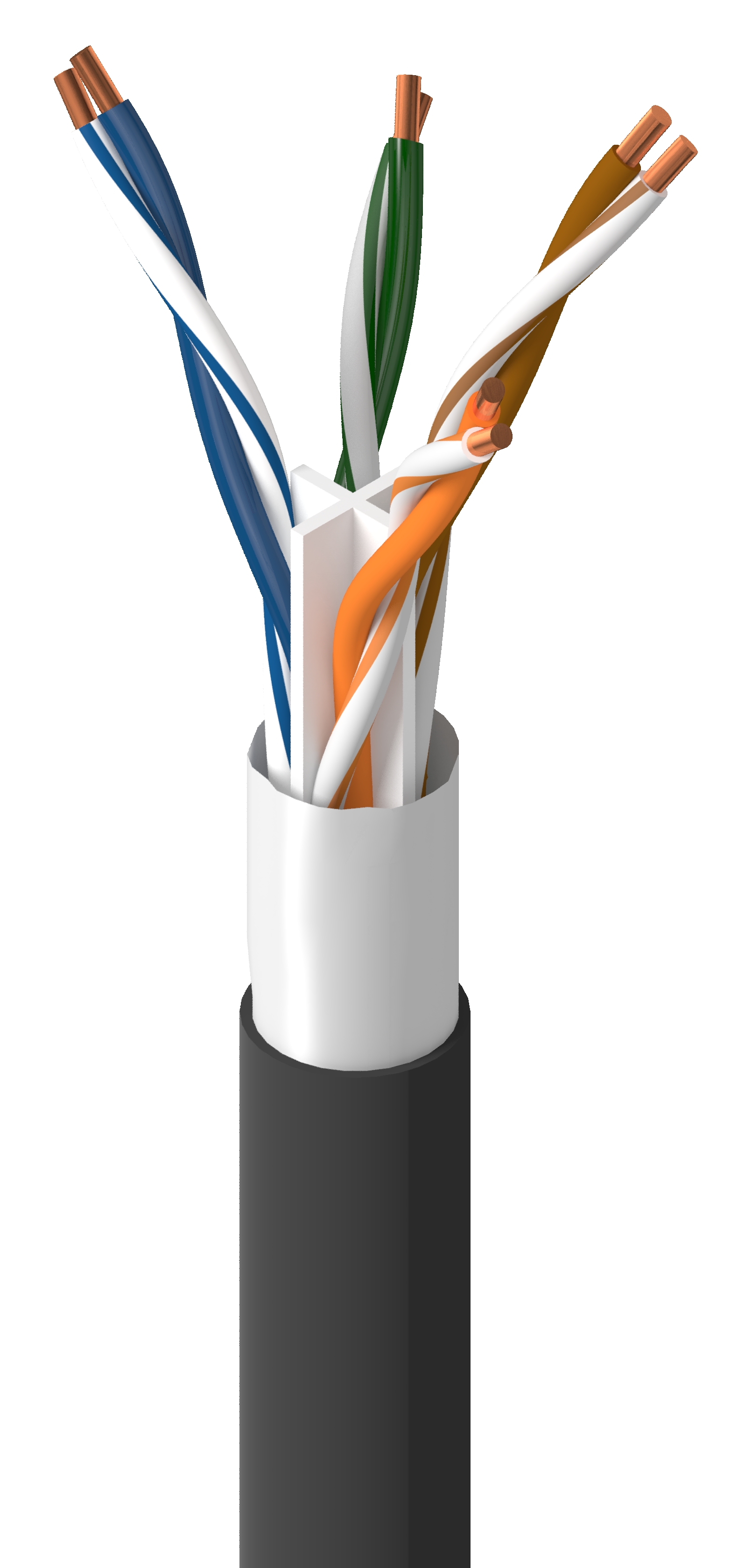

PoE Cable - IEA003

Industrial Ethernet Cat 6A, 4 Bonded-Pair, 23 AWG Solid Bare Copper, FEP Insulation, Patented X-Spline & EquiBlock™ Technologies, U/UTP-Unshielded, FEP Jacket, CMP

上架时间:

Global
状态:

有源

规格
零件编号
资源

规格

Expand All

Product Overview

Suitable Applications	extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Element	Size	Stranding	Material	No. of Pairs
Pair(s)	23 AWG	Solid	BC - Bare Copper	4

Insulation

Element	Material	Nom. Insulation Diameter	Color Code
Pair(s)	FEP - Fluorinated Ethylene Propylene	0.044 in (1.1 mm)	White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair	Yes

Outer Jacket

Separator	Material	Nom. Diameter
Center Member (Patented X-Spline®), EquiBlock™ Barrier Technology	FEP - Fluorinated Ethylene Propylene	0.269 in (6.83 mm)

Overall Cable Diameter (Nominal)	0.269 in (6.83 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR	Max. Capacitance Unbalance
23.2 Ohm/1000ft (76.1 Ohm/km)	45 pF/100m

Delay

Frequency	Max. Delay	Max. Delay Skew	Nom. Velocity of Prop.
100 MHz	537.6 ns/100m	45 ns/100m	65%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted)	Max./Min. Fitted Impedance	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1 dB/100m	74.3	72.3	72.2	70.2	67.8	64.8	20.0	105 ± 10 Ohm	115 +/- 15	67.0	67.0	40.0	35.0
4	3.8 dB/100m	65.3	63.3	61.5	59.5	55.8	52.8	23.0	100 ± 10 Ohm	100 +/- 7	67.0	66.2	40.0	23.0
8	5.3 dB/100m	60.8	58.8	55.4	53.4	49.7	46.7	24.5	100 ± 22 Ohm	100 ± 7 Ohm	67.0	60.1	40.0	16.9
10	5.9 dB/100m	59.3	57.3	53.4	51.4	47.8	44.8	25.0	100 ± 22 Ohm	100 ± 7 Ohm	67.0	58.2	40.0	15.0
16	7.5 dB/100m	56.2	54.2	48.8	46.8	43.7	40.7	25.0	100 ± 22 Ohm	100 ± 7 Ohm	67.0	54.1	38.0	10.9
20	8.4 dB/100m	54.8	52.8	46.4	44.4	41.8	38.8	25.0	100 ± 22 Ohm	100 ± 7 Ohm	67.0	52.2	37.0	9.0
25	9.4 dB/100m	53.3	51.3	44.0	42.0	39.8	36.8	24.3	100 ± 22 Ohm	100 ± 7 Ohm	67.0	50.2	36.0	7.0
31.25	10.5 dB/100m	51.9	49.9	41.4	39.4	37.9	34.9	23.6	100 ± 22 Ohm	100 ± 7 Ohm	67.0	48.3	35.1	5.1
62.5	15.0 dB/100m	47.4	45.4	32.4	30.4	31.9	28.9	21.5	100 ± 22 Ohm	100 ± 7 Ohm	65.6	42.3	32.0
100	19.1 dB/100m	44.3	42.3	25.2	23.2	27.8	24.8	20.1	100 ± 22 Ohm	100 ± 7 Ohm	62.5	38.2	30.0
200	27.6 dB/100m	39.8	37.8	12.2	10.2	21.8	18.8	18.0	100 ± 22 Ohm	100 ± 7 Ohm	58.0	32.2	27.0
250	31.1 dB/100m	38.3	36.3	7.3	5.3	19.8	16.8	17.3	100 ± 32 Ohm	100 ± 7 Ohm	56.5	30.2	26.0
300	34.3 dB/100m	37.1	35.1	2.9	0.9	18.3	15.3	16.8	100 ± 32 Ohm	100 ± 7 Ohm	55.3	28.7	25.2
350	37.2 dB/100m	36.1	34.1			16.9	13.9	16.3	100 ± 32 Ohm	100 ± 7 Ohm	54.3	27.3	24.6
400	40.1 dB/100m	35.3	33.3			15.8	12.8	15.9	100 ± 32 Ohm	100 ± 7 Ohm	53.5	26.2	24.0
450	42.7 dB/100m	34.5	32.5			14.7	11.7	15.5	100 +/- 32	100 +/- 7	52.7	25.1	23.5
500	45.3 dB/100m	33.8	31.8			13.8	10.8	15.2	100 +/- 32	100 +/- 7	52.0	24.2	23.0

Voltage

UL Voltage Rating	Voltage Rating
300 V RMS	300 V

Mechanical Characteristics

Temperature

UL Temperature	Operating	Installation	Storage
200°C	-70°C To +200°C	-40°C To +125°C	-70°C To +150°C

Bend Radius

Stationary Min.	Installation Min.
2.69 in (68.3 mm)	2.69 in (68.3 mm)

Max. Pull Tension	53 lbs (24 kg)
Bulk Cable Weight	42 lbs/1000ft

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
CPR Compliance	CPR Euroclass: Fca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP
ICEA Compliance	S-116-732, S-56-434, S-99-689, S-100-685
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance	ANSI/NEMA WC-66
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance	Segregation class according EN50174-2 = a
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	IEA001

Product Notes

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.
