产品编号: 7200A

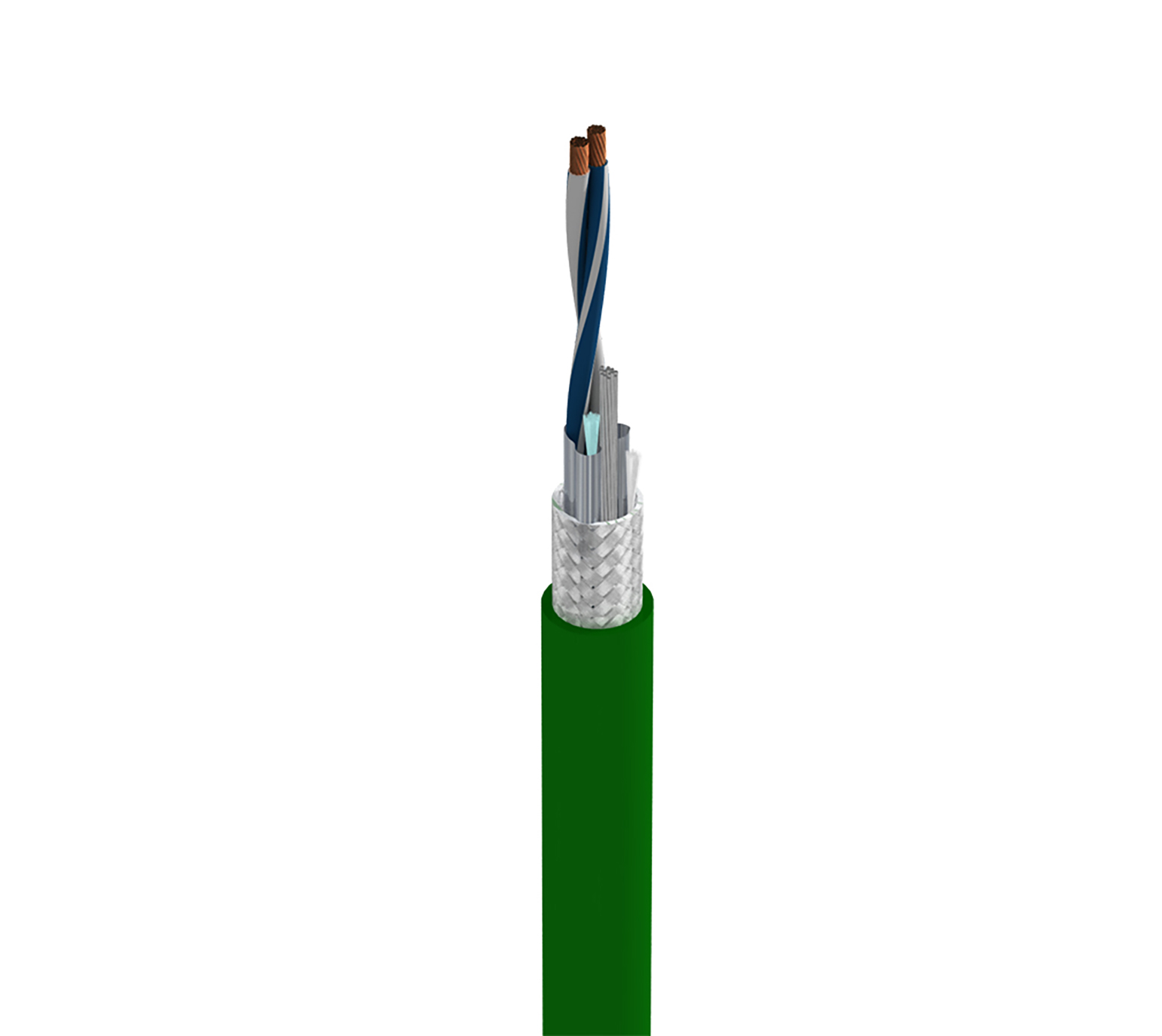

MachFlex™, 1 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM

MachFlex™ for High Flex, 1 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM

  • 上架时间:
    Global
  • 状态:
    有源
7200A
  • 7200A
1 的 1

规格

Expand All

Suitable Applications

Flex Data, RS232, RS485

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 2 24 AWG 41x40 BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene (Foam) 0.019 in (0.48 mm) 0.0705 in (1.79 mm) Blue, White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (41x40) TC
Braid Tinned Copper (TC) 89%

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.045 in (1.1 mm) 0.261 in

Overall Cable Diameter (Nominal)

0.261 in

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Velocity of Prop. Max. Current
27.2 Ohm/1000ft 15 pF/ft (49 pF/m) 72% 2.2 Amps per Conductor at 30ºC

Nom Outer Shield DCR@Cond DCR1-cnv

2.62 Ohm/1000ft (8.60 Ohm/km)

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
60°C -20°C To +60°C

Bend Radius

Stationary Min. Installation Min.
2.61 in (66.3 mm) 2.61 in

Max. Pull Tension

41 lbs (19 kg)

Bulk Cable Weight

34 lbs/1000ft

Environmental Suitability

Oil Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

RS Type: 232/485

Notes

1 million flex cycles based on proper installation techniques in a C-track cable guide.

Update and Revision

Revision Number: 0.332 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.332 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

零件编号

Item # Color Putup Type Length UPC Footnote
7200A X4P500 Green X4P Reel 500 ft 612825182689 C
