Auto-Configuration Adapter (ACA)

Cordless Auto-configuration adapter 512 MB, with M12 (USB 2.0) connection and extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed switches to be easily commissioned and quickly replaced.

上架时间:

Global
状态:

有源

报价

规格
零件编号
资源

规格

Expand All

Product description

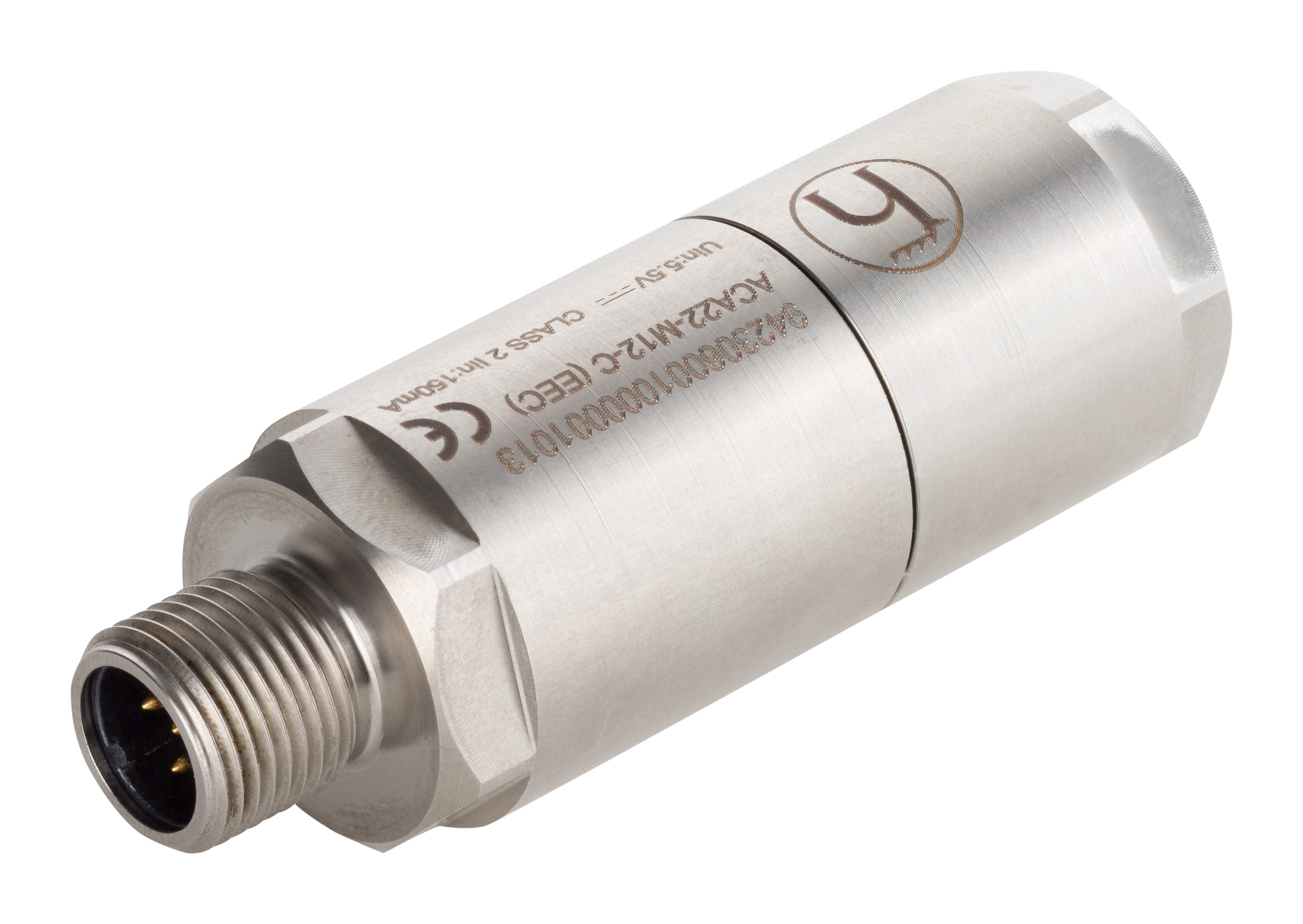

Name	ACA22-M12-C (EEC)

More Interfaces

USB interface on the switch	M12 connection

Power requirements

Operating Voltage	via the USB interface on the switch

Software

Diagnostics	writing to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)
Configuration	via USB interface of the switch and via SNMP/Web

Ambient conditions

MTBF	359 years (MIL-HDBK-217F)
Operating temperature	-40-+70 °C
Minimum Storage Temperature	-40-+85 °C
Relative humidity (non-condensing)	10-95 %
Dimensions (WxHxD)	23 mm × 23 mm × 65 mm
Weight	80 g
Mount Type	plug-in module
Protection class	IP67

Mechanical stability

IEC 60068-2-6 vibration	1 g, 10 Hz - 150 Hz, 30 cycles
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)	8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field	20 V/m

EMC emitted immunity

EN 55032	EN 55032 Class A

Approvals

Shipbuilding	DNV
Transportation	EN50121-4

Reliability

Guarantee	24 months (please refer to the <a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf"terms of guarantee </a for detailed information)
