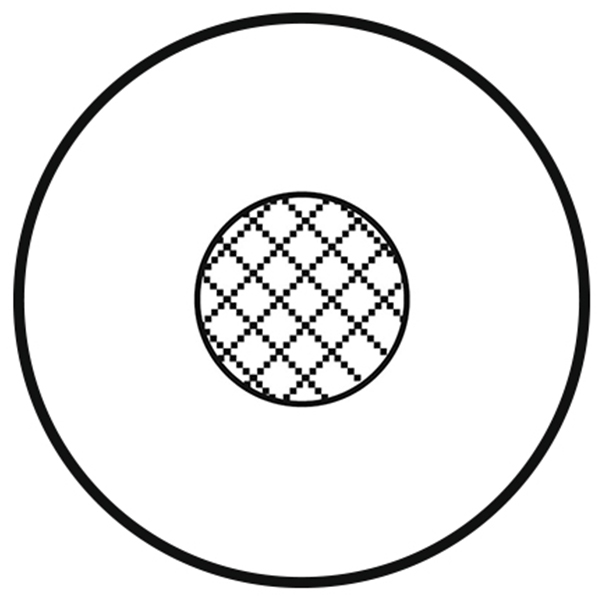

产品编号: BE41490

Lead Wire, #12 Str TC, PVC Ins, AWM 1015

UL AWM ST1015 VW1 12AWG/56X29T CSA TR32

  • 上架时间:
    EMEA
  • 状态:
    有源
BE41490
  • BE41490
1 的 1

规格

Expand All

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1015, 80C, 600 volt.; IEC-65 Internal wiring; CSA-C22.2 no. 16 Type TR-32 90C, 1400 volt peak

Conductor

Size Stranding Material
12 Stranded TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.79 mm (0.031 in) 4.22 mm (0.166 in)

Electricals

Max. Conductor DCR
5.1 Ohm/km

Voltage

UL Voltage Rating
600 V

Temperature

UL Temperature
80°C

Environmental Suitability

Indoor

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1015

Military Compliance

N/A

European Directive Compliance

EU CE Mark

Update and Revision

Revision Number: 0.160 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.160 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color Putup Type Length
BE41490.00300 Black Reel 300 m
BE41490.05300 Blue Reel 300 m
BE41490.04300 Gray Reel 300 m
BE41490.06300 Purple Reel 300 m
BE41490.03300 Red Reel 300 m
BE41490.02300 Yellow Reel 300 m
BE41490.01300 Yellow, Green Stripe Reel 300 m
