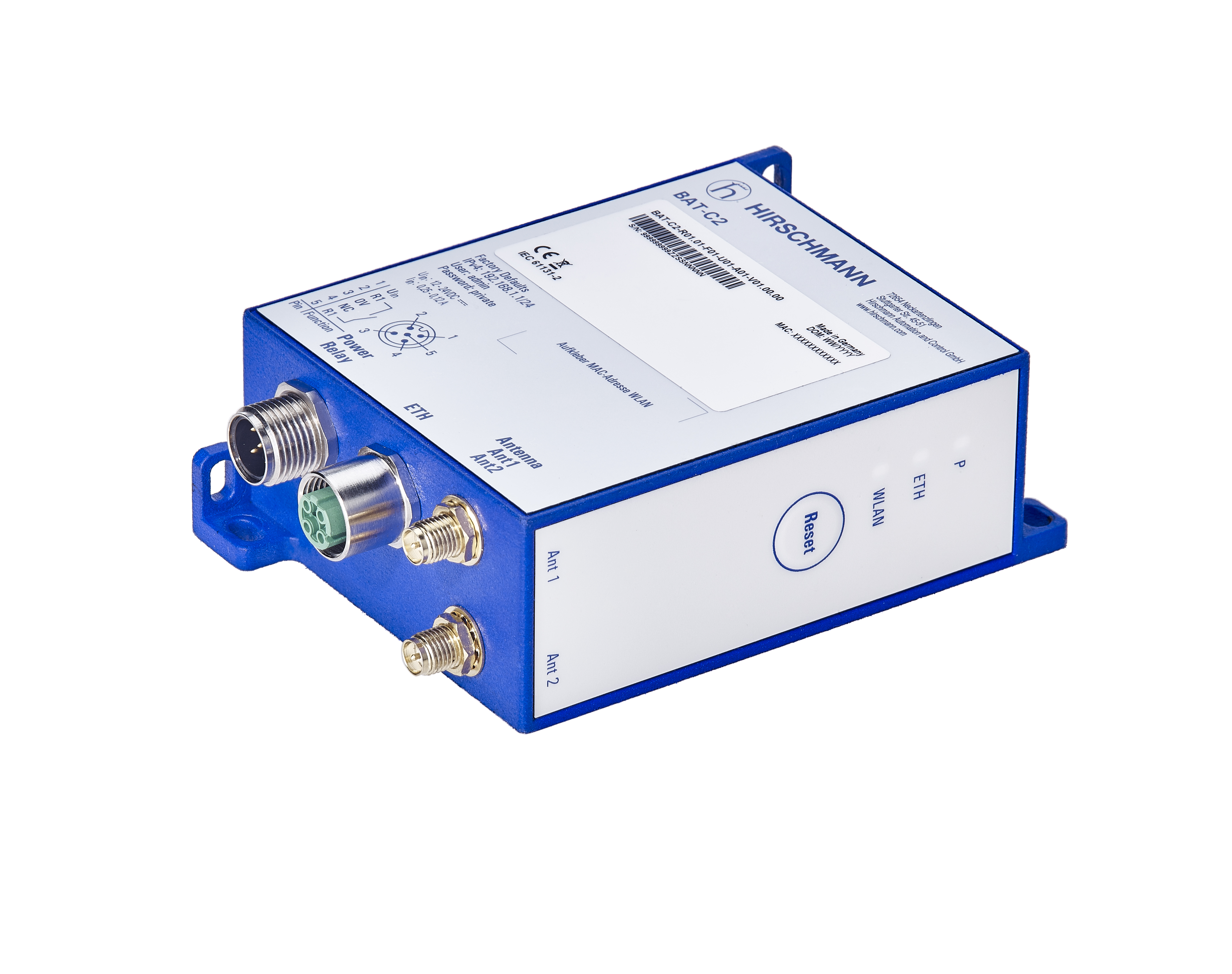

BAT-C2 - BAT-C2-W01.01-F01-U01-A01

The BAT-C2's compact design and low weight are unprecedented in its class of ruggedized industrial WLAN devices. It is optimized for integration either into mobile units or stationary machines. When used as a mobile client it delivers fast roaming at an enterprise security level. When used stationary it allows for simple integration and automatic control of its AccessPoint functionality to deliver wireless access locally around a machine.

上架时间:

Global
状态:

Limited Std Warranty Period

报价

规格
零件编号
资源

规格

Expand All

Product Overview

Type	BAT-C2-W01.01-F01-U01-A01
Port Type and Quantity	1 Port: 10/100 BASE TX

Product Life Cycle

Life Cycle	Limited Std Warranty Period - the product is no longer manufactured but service may be available for active equipment
Discontinuation Announcement Date	2023-12-12
Last Order Date	2024-06-01
Last Delivery Date	2024-10-01
Last Service Date	2029-10-01

General Information

Scope of delivery	1x Device, 1x General Safety Instructions, 1x Power Connector

More Interfaces

Ethernet	M12 D-Coded Socket Female
Power Supply	M12 A-Coded Socket Male

Radio technology

Modules

Description	Radio Protocol	Access Point Functionality	Client / STA Functionality
Module 1	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac	Yes	yes

Power requirements

Operating Voltage	12 VDC .. 24 VDC (nominal), 9.6 VDC .. 32 VDC (max tolerances)

Software

Software features	Filesystem to store custom data, QoS, QoS based on IP or Ports, GRE, MAC filter
Diagnostics	DNS, Routing, System Log, Ping, Traceroute, Syslog
Configuration	DHCP client, DHCP Server, Extendable via custom Python Scripts
Security	IPSec, Firewall, User Permission Management
Routing	Static, RIP, OSPF, 1:1 NAT, Port Forwarding
