产品编号: FS4H0246G

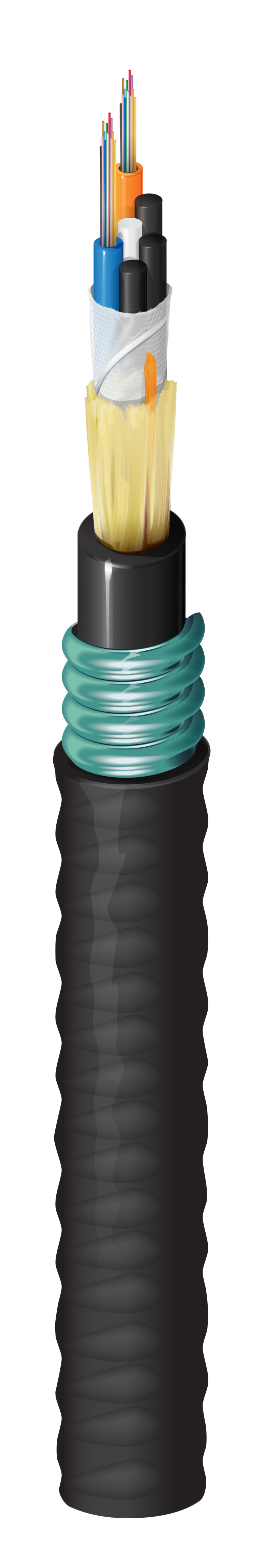

Heavy Duty Loose Tube OM4 24F OSP Armor Unitized

Outdoor Heavy Duty Loose Tube OM4 24 Fibers OSP Corrugated Steel Tape Armor Sub-Units(12F) Gel Black

  • 上架时间:
    Global
  • 状态:
    有源
FS4H0246G
  • FS4H0246G
1 的 1

规格

Expand All

Fiber Core Diameter

50/125μm

Fiber Count

24

Number of Active Subunits

2

Fibers Per Subunit

12

Subunit Waterblocking

Gel Filled

Subunit Diameter

0.110 in (2.8 mm)

Central Strength Member Type

GRP

Cable Core Water Blocking

Waterblock Tape

Material

PE - Polyethylene

Color

Black

Number of Inner Jacket Ripcords

2

Armor Type and Material

CST - Corrugated Steel Tape

Nom. Diameter

0.61 in (15.5 mm)

Outer Jacket Ripcord

2

Optical Characteristics

Wavelength 850 nm 1300 nm
Max. Attenuation 3.0 dB/km 1.0 dB/km

Minimum Bend Radius During Installation

20x Cable OD

Minimum Bend Radius During Operation

15x Cable OD

Crush Resistance

440

Environmental Suitability

Outdoor

TIA/EIA Compliance

ANSI/ICEA S-87-640

Update and Revision

Revision Number: 0.69 Revision Date: 09-25-2025

Update and Revision

Revision Number: 0.69 Revision Date: 09-25-2025


Report An Error

零件编号

Item # Color UPC
FS4H0246G Black 612825371656
