产品编号: 3105Z

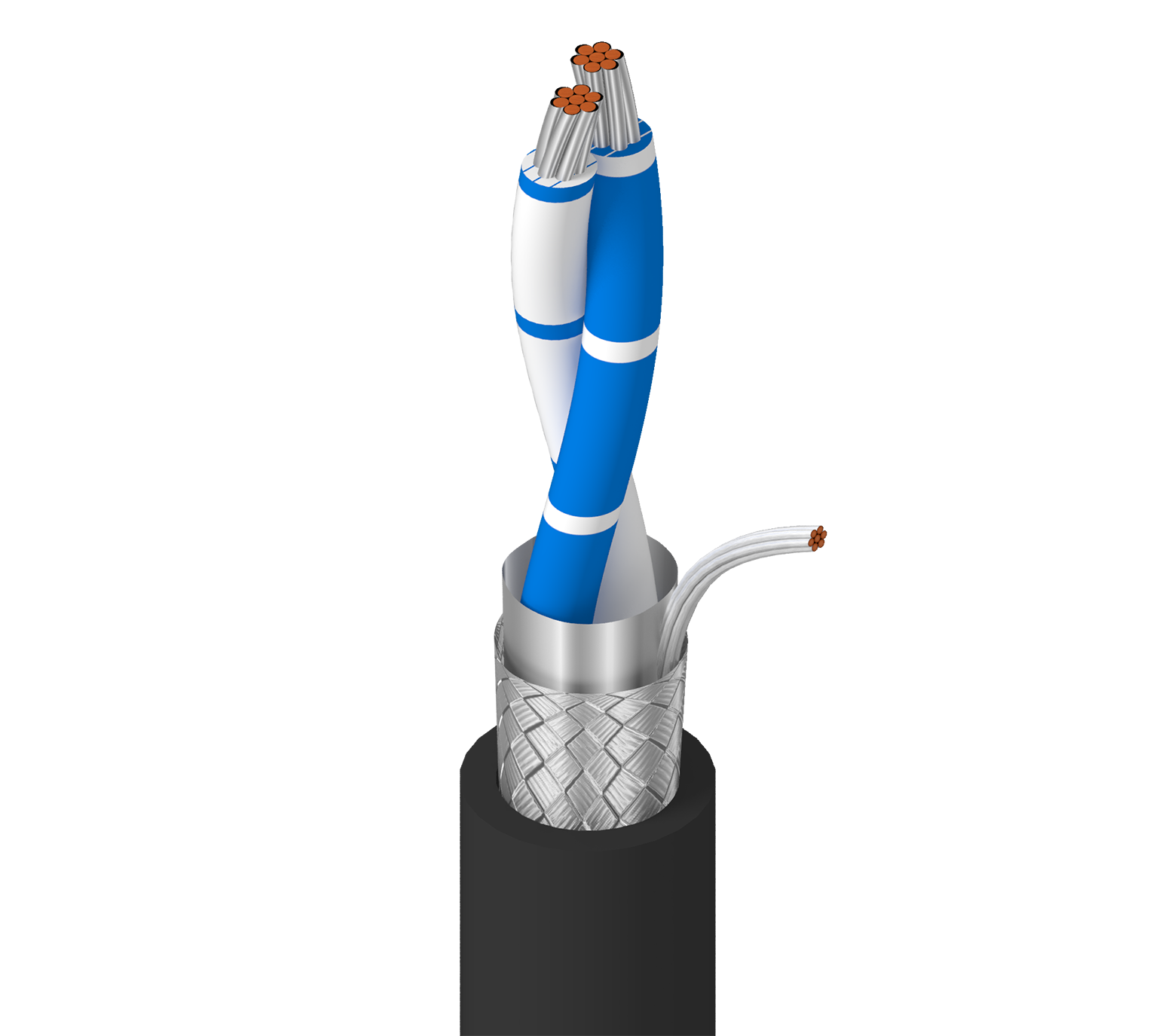

RS-485, 1 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, LSZH-TS Jkt, CMG, PLTC, Sun Res

MarineTuff RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, LSZH Thermoset jacket, CMG, PLTC, SUN RES,ABS (21-2090759-PDA-DUP)

  • 上架时间:
    Global
  • 状态:
    有源
3105Z
  • 3105Z
1 的 1

规格

Expand All

Suitable Applications

harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.029 in (0.74 mm) White/Blue Stripe & Blue/White Stripe HDPE

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Braid Tinned Copper (TC) 65%

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) 0.100 in (2.54 mm) 0.400 in (10.2 mm)

Overall Cable Diameter (Nominal)

0.400 in (10.2 mm)

Electricals

Element Max. Conductor DCR Nom. Characteristic Impedence Nom. Velocity of Prop.
Pair(s) 14.7 Ohm/km 120 Ohm 78%

High Frequency (Nominal/Typical)

Element Frequency [MHz] Nom. Insertion Loss (Attenuation) [dB/100ft]
Pair(s) 1 0.5

Voltage

UL Voltage Rating
300 V (CMG, PLTC)

Temperature

UL Temperature Operating
60°C -20°C to +60°C

Max. Pull Tension

60 lbs (27 kg)

Bulk Cable Weight

85 lbs/1000ft (130 kg/km)

Environmental Suitability

Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL 1685 UL Loading

NEC / UL Compliance

Article 725, Article 800, CMG, PLTC

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.321 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

Update and Revision

Revision Number: 0.321 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

Report An Error

零件编号

Item # Color UPC Footnote
3105Z 0105000 Black 612825141631 C N
