产品编号: 7834P

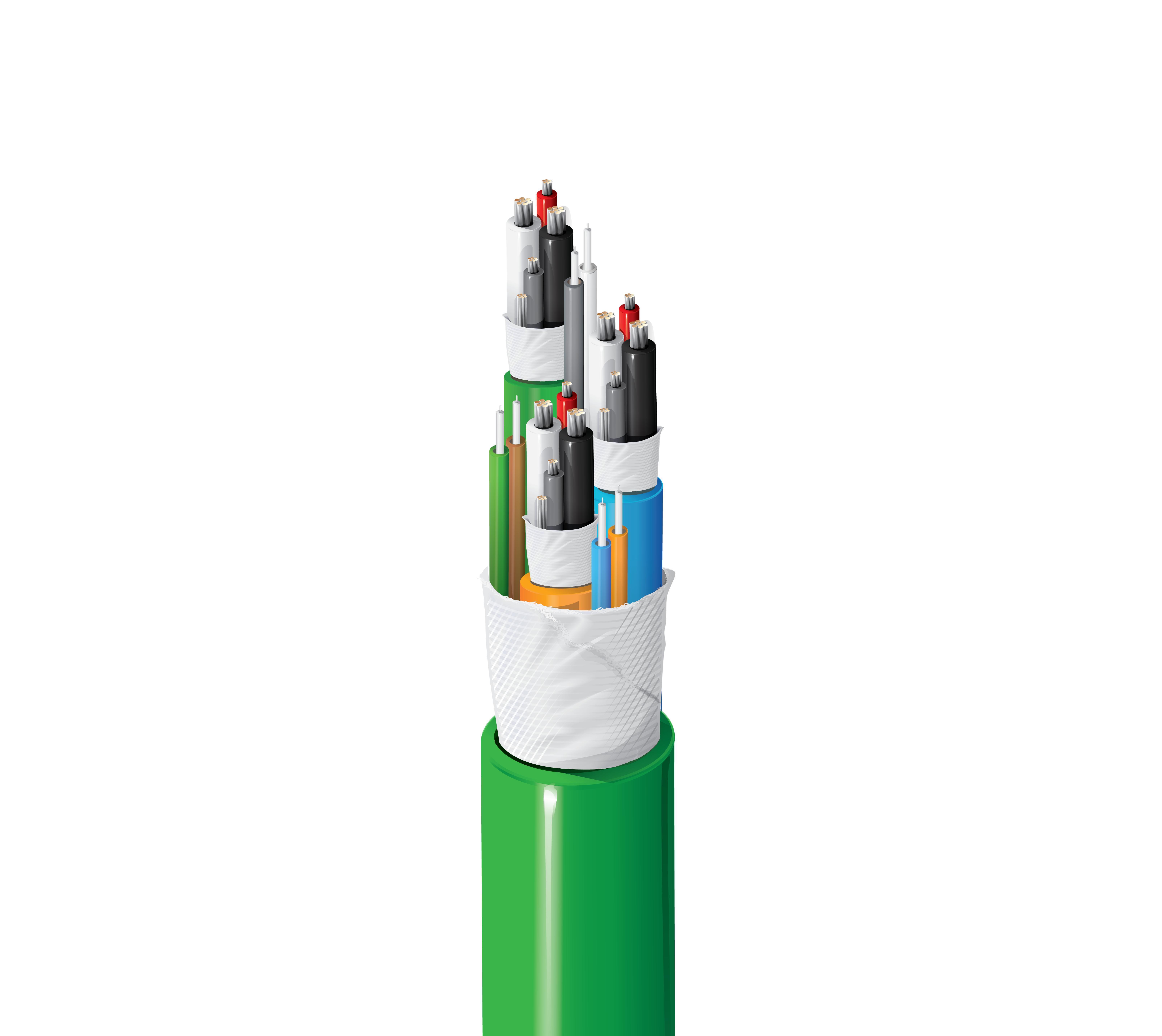

3-Channel SMPTE Stadium Cable, 6 Single Mode Fiber, 6 Conductor 18 AWG and 6 Conductor 24 AWG, Plenum

3-Channel SMPTE Stadium Cable, 6 Single Mode Fiber, 6 TC Conductor (19x30) 18 AWG and 6 TC Conductor (7x32) 24 AWG, FEP Insulation, Beldfoil Shield, PVDF Jacket, Plenum

  • 上架时间:
    Global
  • 状态:
    有源
7834P
  • 7834P
1 的 1

规格

Expand All

Product Category

SMPTE Cable

Suitable Applications

3 Channel Composite Camera Cable

Fiber Type

OS2, G.657.A2

Fiber Buffer Material

PVC - Polyvinyl Chloride

Fiber Buffer Diameter

900 µm

Fiber Count

6

Fiber Color Code

TIA-598-D

Fibers Per Subunit

1

Conductor Size

24 AWG, 18 AWG

Insulation Material

FEP

Nom. Diameter

0.437 in (11.1 mm)

Optical Characteristics

Wavelength 1310 nm 1550 nm
Max. Attenuation 0.50 dB/km 0.50 dB/km

Bulk Cable Weight

170 lbs/1000ft

Operating Temperature Range

0°C to 75°C

Installation Temperature Range

0°C to 70°C

Storage Temperature Range

0°C to 70°C

Environmental Suitability

Indoor - PlenumIndoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

SMPTE 311

Update and Revision

Revision Number: 0.31 Revision Date: 09-25-2025

Update and Revision

Revision Number: 0.31 Revision Date: 09-25-2025


Report An Error

零件编号

Item # Put-Up Type Length
7834P 0051000 Reel 1,000 ft
7834P 0051000 Reel 1,000 ft
7834P 0054000 Reel 4,000 ft
7834P 0054000 Reel 4,000 ft
