产品编号: 9104

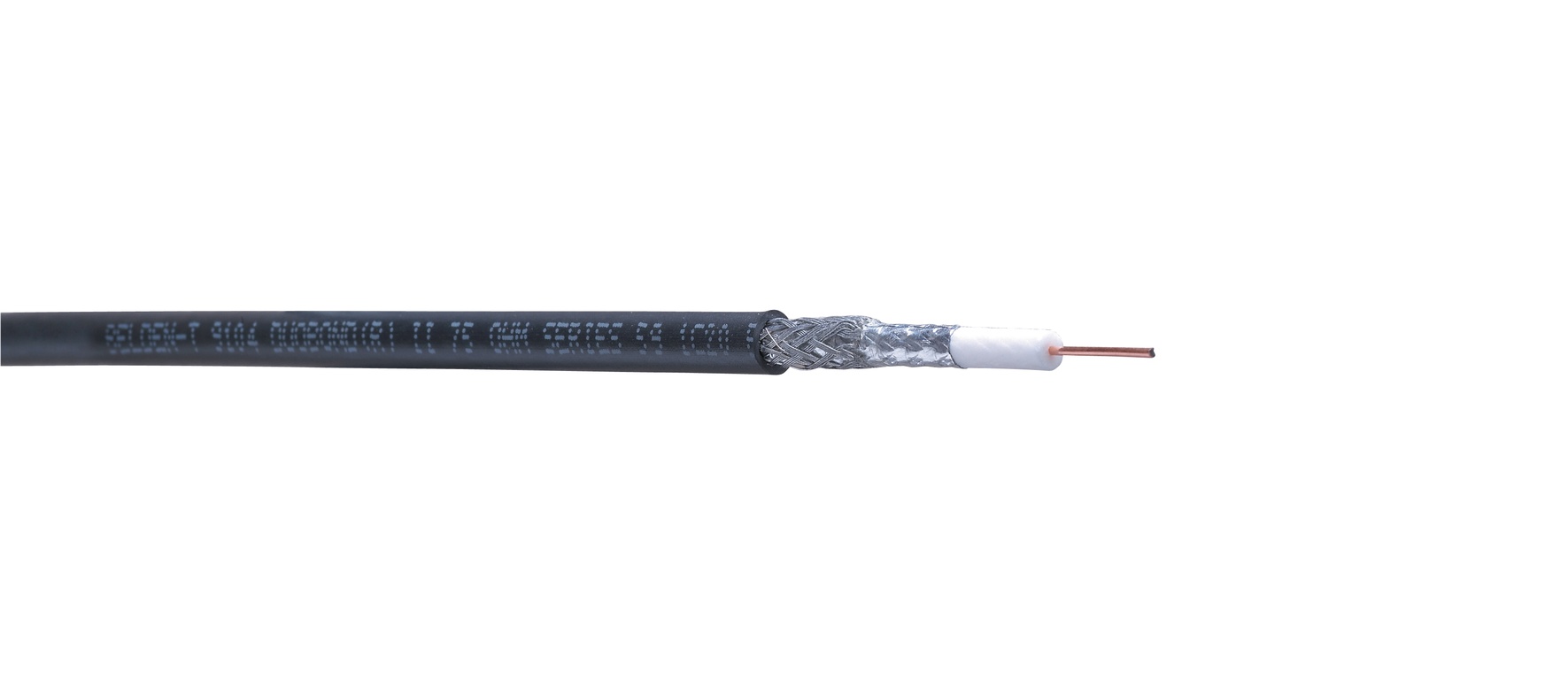

Broadband Coax, Series 59, 20 AWG Solid BCCS, Foil + 65% AL Braid, PVC Jkt, CM

Broadband Coax, Series 59, 20 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 65% Aluminum Braid Shield, PVC Jacket, CM

  • 上架时间:
    Global
  • 状态:
    有源
9104
  • 9104
1 的 1

规格

Expand All

Suitable Applications

Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Series Type

59

Conductor

No. of Elements Size Stranding Nom. Diameter Material
1 20 AWG Solid 0.032 in BCCS - Bare Copper Covered Steel

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 0.145 in (3.68 mm) White

Insulation Table Notes

Gas Injected

Outer Shield

Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Aluminum 65%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.237 in (6.02 mm)

Overall Cable Diameter (Nominal)

0.237 in (6.02 mm)

Return Loss

Frequency Min. Structural Return Loss
5-1000 MHz 20 dB

Attenuation

Frequency Max. Attenuation
5 MHz 0.86 dB/100ft
55 MHz 2.05 dB/100ft
211 MHz 3.80 dB/100ft
270 MHz 4.22 dB/100ft
300 MHz 4.45 dB/100ft
350 MHz 4.80 dB/100ft
400 MHz 5.10 dB/100ft
450 MHz 5.40 dB/100ft
550 MHz 5.95 dB/100ft
750 MHz 6.97 dB/100ft
870 MHz 7.57 dB/100ft
1000 MHz 8.12 dB/100ft

Electricals

Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
44.5 Ohm/1000ft (146 Ohm/km) 12 Ohm/1000ft (39 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%

Voltage

UL Voltage Rating
300 V RMS

Temperature

Operating
-40°C To +80°C

Bend Radius

Stationary Min. Installation Min.
2.25 in (57.2 mm) 2.25 in (57.2 mm)

Max. Pull Tension

104 lbs (47.2 kg)

Bulk Cable Weight

23 lbs/1000ft

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

UL1685 UL Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CATV, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.488 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.488 Revision Date: 02-03-2025


Report An Error

零件编号

Item # Color Putup Type Length UPC
9104 0101000 Black Reel 1,000 ft 612825224280
9104 010U1000 Black UnReel 1,000 ft 612825224266
9104 009U1000 White UnReel 1,000 ft 612825224297
9104 Q5HU1000 White, Neutral UnReel 1,000 ft 612825224303
