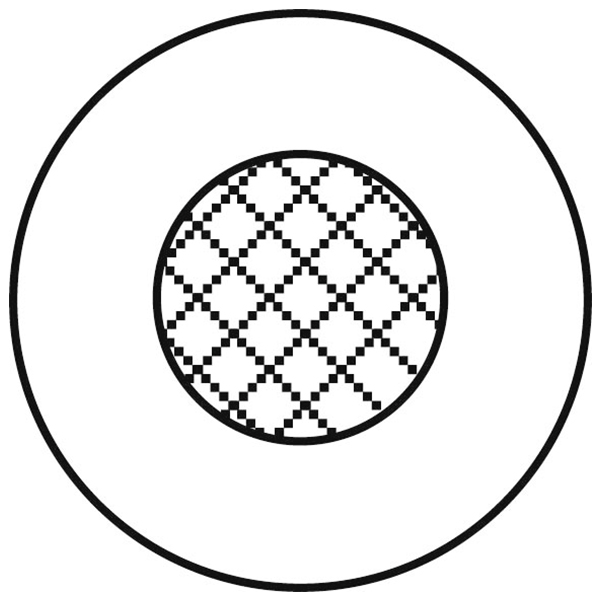

产品编号: BE41201

Lead Wire, #20 Str TC, PVC Ins, AWM 1007

UL AWM ST1007 VW1 24AWG/7x32T CSA TR 64

  • 上架时间:
    EMEA
  • 状态:
    有源
BE41201
  • BE41201
1 的 1

规格

Expand All

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

Conductor

Size Stranding Material
24 Stranded TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.38 mm (0.015 in) 1.44 mm (0.0567 in)

Electricals

Max. Conductor DCR
83.9 Ohm/km

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature
80°C

Environmental Suitability

Indoor

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1007

Military Compliance

N/A

European Directive Compliance

EU CE Mark

Update and Revision

Revision Number: 0.167 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.167 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color Putup Type Length
BE41201.003600 Black Reel 3,600 m
BE41201.0020K Black Reel 20,000 m
BE41201.101350 Blue Reel 1,350 m
BE41201.103600 Blue Reel 3,600 m
BE41201.043600 Brown Reel 3,600 m
BE41201.083600 Gray Reel 3,600 m
BE41201.053600 Green Reel 3,600 m
BE41201.063600 Orange Reel 3,600 m
BE41201.093600 Pink Reel 3,600 m
BE41201.073600 Red Reel 3,600 m
BE41201.013600 White Reel 3,600 m
BE41201.023600 Yellow Reel 3,600 m
