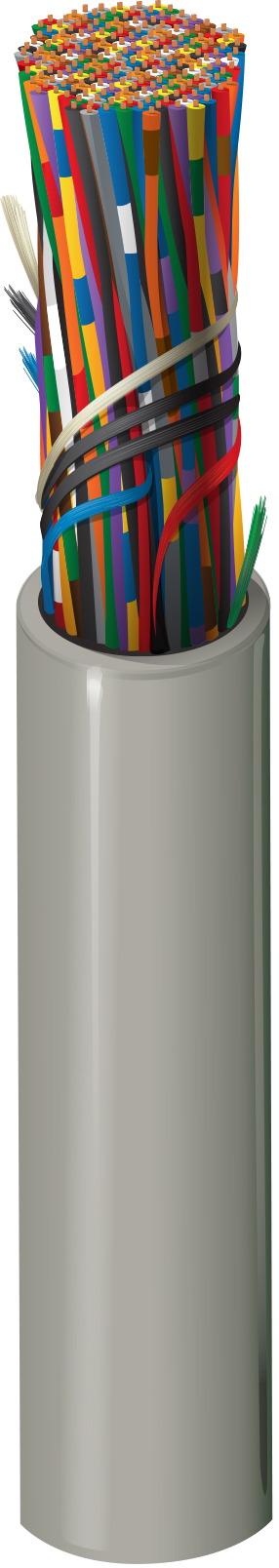

3 类电缆 - DPLN300

CAT3、DIW 300 对、U/UTP 非屏蔽、Plenum-CMP、楼宇主干电缆、24 AWG 实心裸铜导体、LS-PVC 绝缘、拉绳、LS-PVC 护套

上架时间:

全球
状态:

有源

报价

规格
零件编号
资源

规格

产品概述

适合应用	建筑主干线缆

构造详情

导体

Size	Stranding	Material	No. of Pairs
24	Solid	BC - Bare Copper	300

绝缘

Material	Color Code
PVC - Polyvinyl Chloride	White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Slate & Slate/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Slate & Slate/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Black/Green & Green/Black, Black/Brown & Brown/Black, Black/Slate & Slate/Black, Yellow/Blue & Blue/Yellow, Yellow/Orange & Orange/Yellow, Yellow/Green & Green/Yellow, Yellow/Brown & Brown/Yellow, Yellow/Slate & Slate/Yellow, Violet/Blue & Blue/Violet, Violet/Orange & Orange/Violet, Violet/Green & Green/Violet, Violet/Brown & Brown/Violet, Violet/Slate & Slate/Violet, White/Blue, White/Orange, White/Green, White/Brown, White/Slate, Red/Blue, Red/Orange, Red/Green, Red/Brown, Red/Slate, Black/Blue, Black/Orange
	Blue/White, Orange/White, Green/White, Brown/White, Gray/White, Blue/Red, Orange/Red, Green/Red, Red/Brown, Red/Gray, Black/Blue, Black/Orange

Material

Color Code

PVC - Polyvinyl Chloride

White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Slate & Slate/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Slate & Slate/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Black/Green & Green/Black, Black/Brown & Brown/Black, Black/Slate & Slate/Black, Yellow/Blue & Blue/Yellow, Yellow/Orange & Orange/Yellow, Yellow/Green & Green/Yellow, Yellow/Brown & Brown/Yellow, Yellow/Slate & Slate/Yellow, Violet/Blue & Blue/Violet, Violet/Orange & Orange/Violet, Violet/Green & Green/Violet, Violet/Brown & Brown/Violet, Violet/Slate & Slate/Violet, White/Blue, White/Orange, White/Green, White/Brown, White/Slate, Red/Blue, Red/Orange, Red/Green, Red/Brown, Red/Slate, Black/Blue, Black/Orange

Blue/White, Orange/White, Green/White, Brown/White, Gray/White, Blue/Red, Orange/Red, Green/Red, Red/Brown, Red/Gray, Black/Blue, Black/Orange

外层护套

Material	Material Trade Name	Nom. Diameter	Ripcord
PVC - Polyvinyl Chloride	Flamarrest®	1.350 in	Yes

电气特性

电气设备

Max. Conductor DCR	Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft)	330 pF/100m

延迟

Frequency	Max. Delay	Max. Delay Skew	Nom. Velocity of Prop.
16 MHz	543 ns/100m	45 ns/100m	61%

高频

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. RL (Return Loss) [dB]	Max./Min. Fitted Impedance
0.772	2.2	47.0	43.0	50.1	46.1
1	2.6	45.0	41.0	47.8	43.8	12.0	100 ± 15 Ohm
4	5.6	36.0	32.0	36.0	32.0	12.0	100 ± 15 Ohm
8	8.5	31.0	28.0	28.3	24.3	12.0	100 ± 15 Ohm
10	9.7	30.0	26.0	26.2	22.3	12.0	100 ± 15 Ohm
16	13.1	27.0	23.0	20.1	16.1	10.0	100 ± 15 Ohm

电压

UL Voltage Rating
300 V RMS

机械特性

温度

Operating	Installation	Storage
-30°C To +60°C	0°C To +50°C	-30°C To +60°C

弯曲半径

Stationary Min.	Installation Min.
13.5 in (343 mm)	27.0 in (686 mm)

最大拉伸张力	1800 lb (820 kg)
线缆毛重	1220 磅/1000 英尺（1820 千克/公里）

标准与合规性

环境适应性	室内静压室
阻燃性/遇火反应	NFPA 262 阻燃级（UL 910），FT6
CPR合规性	CPR Euroclass：Eca
NEC/UL合规性	CMP
CEC / C（UL）合规性	CMP
数据类别	第 3 类
TIA/EIA合规	ANSI/TIA-568-C.2 第 3 类
欧洲指令合规性	欧盟 CE 标志、欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)、REACH：2017-07-10
英国监管合规性	UKCA标识
APAC合规性	中国 RoHS II (GB/T 26572-2011)
非静压室编号	DIW300
