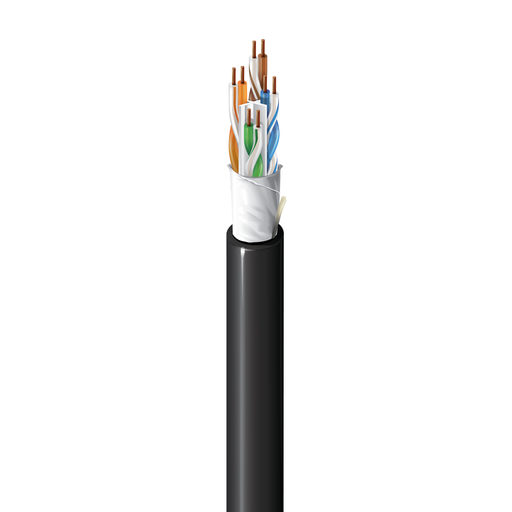

产品编号: DOSP6U

Category 6 OSP Cable, 4 Pair, U/UTP, Gel Free

Category 6 Premise Horizontal Cable, OSP Rated, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Gel Free

  • 上架时间:
    Global
  • 状态:
    有源
DOSP6U
  • DOSP6U
1 的 1

规格

Expand All

Suitable Applications

OSP-Outside Plant, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Conductor

Size Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4

Insulation

Material Color Code
PO - Polyolefin White & Blue, White & Orange, White & Green, White & Brown

Outer Jacket

Separator Material Nom. Diameter Ripcord
Center Member (Patented T-Spline®), EquiBlock™ Barrier Technology PO - Polyolefin 0.29 in (7.4 mm) Yes

Overall Cable Diameter (Nominal)

0.29 in (7.4 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km (25 Ohm/1000ft) 45 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 68%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm]
1 2.0 74.3 72.3 67.8 64.8 20 100 ± 15
4 3.8 65.3 63.3 55.8 52.7 23 100 ± 15
8 5.3 60.8 58.8 49.7 46.7 24.5 100 ± 15
10 6 59.3 57.3 47.8 44.8 25 100 ± 15
16 7.6 56.2 54.3 43.7 40.7 25 100 ± 15
20 8.5 54.8 52.8 41.8 38.8 25 100 ± 15
25 9.5 53.3 51.3 39.8 36.8 24.3 100 ± 15
31.25 10.7 51.9 49.9 37.9 34.9 23.6 100 ± 15
62.5 15.4 47.4 45.4 31.9 28.9 21.5 100 ± 15
100 19.8 44.3 42.3 27.8 24.8 20.1 100 ± 20
155 25.2 41.5 39.5 23.9 20.9 18.8 100 ± 20
200 29.0 39.8 37.8 21.8 18.8 18 100 ± 20
250 32.8 38.3 36.3 19.8 16.8 17.3 100 ± 20

Voltage

Voltage Rating
300 V

Temperature

Operating Installation Storage
-20°C To +70°C 0°C To +60°C -40°C To +75°C

Bend Radius

Installation Min.
2.9 in (74 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

33 lbs/1000ft (49 kg/km)

Environmental Suitability

Outdoor - Water Exposure, Outdoor

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

ISO/IEC Compliance

11801 ed 2.2 (2011) Class EA

CENELEC Compliance

Segregation class according EN50174-2 = a

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Suitable for burial or use in outdoor wet locations. Not recommended for Direct Burial applications without additional crush and impact protection. Additional crush and impact protection would include cable armoring, installation in conduit or installation with over top barriers per Belden Technical Bulletin T/8-6. Cable jacket system is specially designed to protect cable core. Cable contains no water-blocking tapes, gels, or powders. Install in accordance with all applicable electrical codes. Maintain jacket integrity throughout installation process. Do not allow water or fluids to penetrate jacket sheath or to enter ends of cable. Ensure ends of cable will be protected from water/fluids after installation. Belden recommends using an entrance demarcation point when transitioning inside buildings with OSP cables. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.

Update and Revision

Revision Number: 0.170 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.170 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color Putup Type Length
DOSP6U 0101000 Black Reel 1,000 ft
