Power Connectors

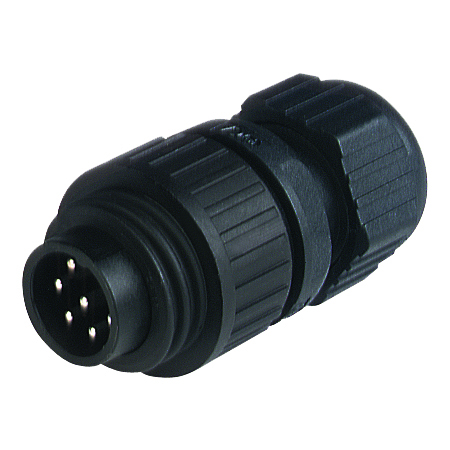

CA - Field Attachable Male Straight Connector | #Contacts: 7 (6+PE) | 250 V / 10 A | cURus

规格

Product Family	Power Connector
Side 1 Product Sub Family	CA (4, 6 contacts)
Connector Type	Field Attachable
Connector Sub Type	CA Power Series
Side 1 Type of Contact/Gender	Pin Contacts / Male
Connector Design	CA \| Male \| 6 Pole \| 0°
Number of Pins	7(6+PE)
Shielding Type	Unshielded
Attachment Type	Male Thread (coupling screw)
Voltage Rating	250 V AC/DC
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	10 A (0.75 mm²)
Contact Resistance	≤ 10 mOhm
Type of Connection	Solder
Cable Gland	TR22
Cross Section	max. 0.75 mm²
Strain-Relief	clamping cage
Suitable Cables	Gasket 1: Ø 6 mm to Ø 9 mm, Gasket 2: Ø 9 mm to Ø 12 mm
Ambient Temperature (Operation)*	- 40 °C to + 90 °C
Temperature Range (Gasket)	- 40 °C to + 90 °C
Protection Degree / IP Rating**	IP66, IP67
Design Standard	DIN EN 61984 (VDE 0627)
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper-Silver Alloy (Cu/Ag)
Contact Bearer Material	Nylon 66 (PA 66 GF)
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Flammability Class (Housing)	UL 94 V-0
Cable Gland Material	Nylon 66 (PA 66)
Cable Gland Gasket	Nitrile Butadiene Rubber (NBR)
Cable Gland Color	Black
Flammability Class (Cable Gland)	UL 94 V-0
Attachment Material	Nylon 66 (PA 66 GF)
Flammability Class (Attachment)	UL 94 V-0
Gasket Material	Nitrile Butadiene Rubber (NBR)

Fastening Torque (Cable Gland)	TR22: min. 250 Ncm
Mating Connectors / Fitting to	934-127-100 CA 6 LD (field attachable, straight), 934-131-100 CA 6 W LD (field attachable, angled), 932-325-100 CA 6 GD (receptacle, straight)
Accessories to Order Separately	Dust Cap; 831 530 400

Oil Resistance	Yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect or disconnect under load. Connectors are packaged in airtight bags and placed in sulfur free cartons to protect contacts against silver sulfide. Once packaging is opened, customer is responsible for correctly storing connectors to prevent tarnishing against environmental elements while in storage.

Note Derating	* Notice derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect or disconnect under load. Connectors are packaged in airtight bags and placed in sulfur free cartons to protect contacts against silver sulfide. Once packaging is opened, customer is responsible for correctly storing connectors to prevent tarnishing against environmental elements while in storage.
