产品编号: FC4D06SDFS

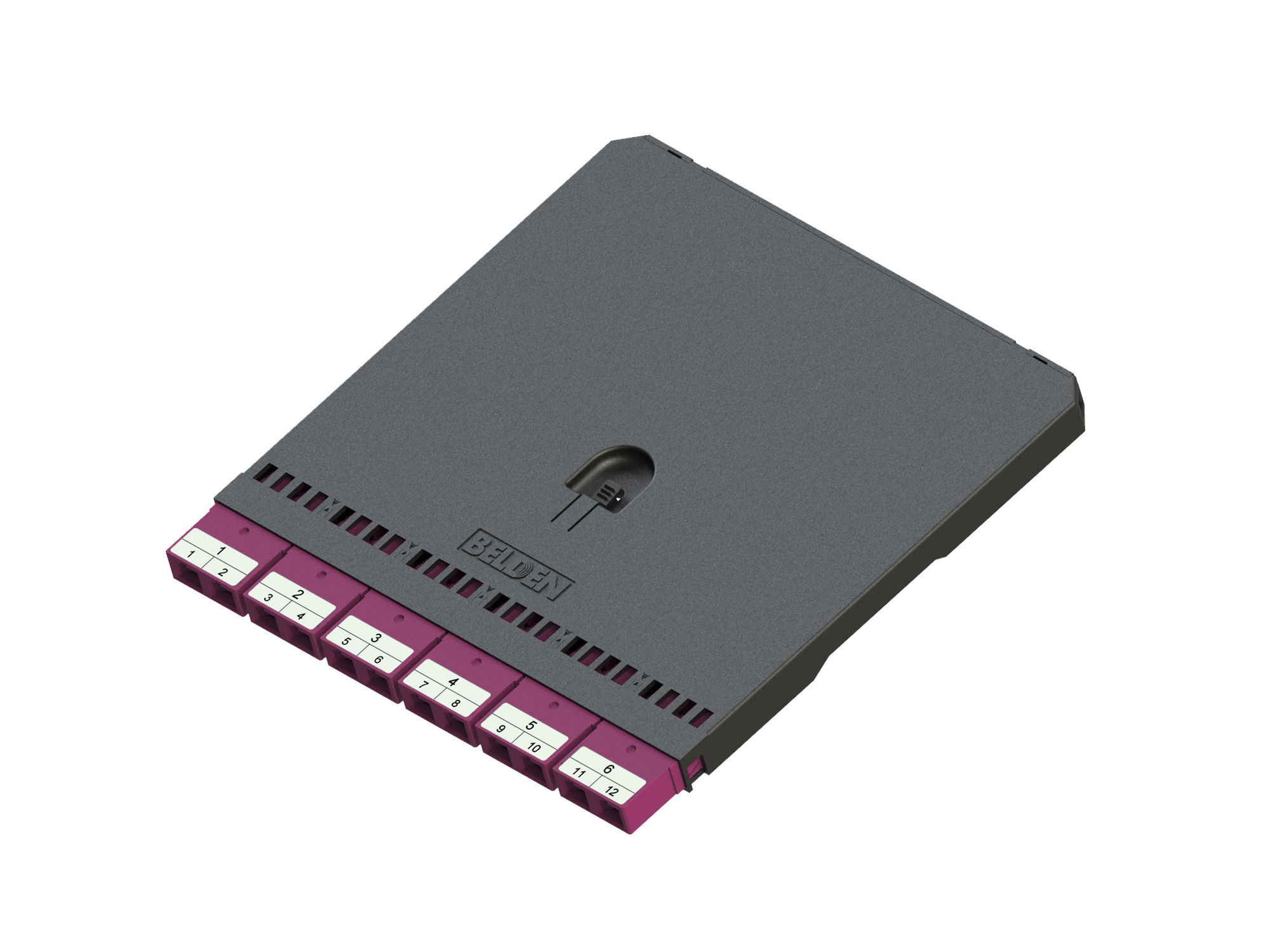

FX DCX Splice Cassette, OM4, 06 Ports SC Duplex

FX DCX Splice Cassette, OM4, 06 Ports SC Duplex, Erika Violet Adapters

  • 上架时间:
    Global
  • 状态:
    有源
FC4D06SDFS
  • FC4D06SDFS
1 的 1

规格

Expand All

Suitable Applications

DCX, Data Centers, Central Equipment Room

Weight

0.398 lbs

Overall Height

0.500 in

Overall Width

6.830 in

Depth

7.430 in

Max Capacity

12 Fibers

Mechanical Tests

Description

Operating Temperature Range

-10 to 60°C

Storage Temperature Range

-10 to 60°C

Materials

Description Material Color Type
Cassette Assembly Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Erika Violet SC Duplex
Adapter Sleeve Zirconia-Ceramic

MII Order #39 (China RoHS)

EUP 50

Included Parts

Cable rubber retention (2mm, 3mm)

Related Parts

DCX Frames, Modules, and Patch Panels

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Update and Revision

Revision Number: 0.235 Revision Date: 10-21-2025

Update and Revision

Revision Number: 0.235 Revision Date: 10-21-2025


Report An Error

零件编号

Item # Connector Type
FC4D06SDFS SC Duplex
