产品编号: FCSD12LDFS

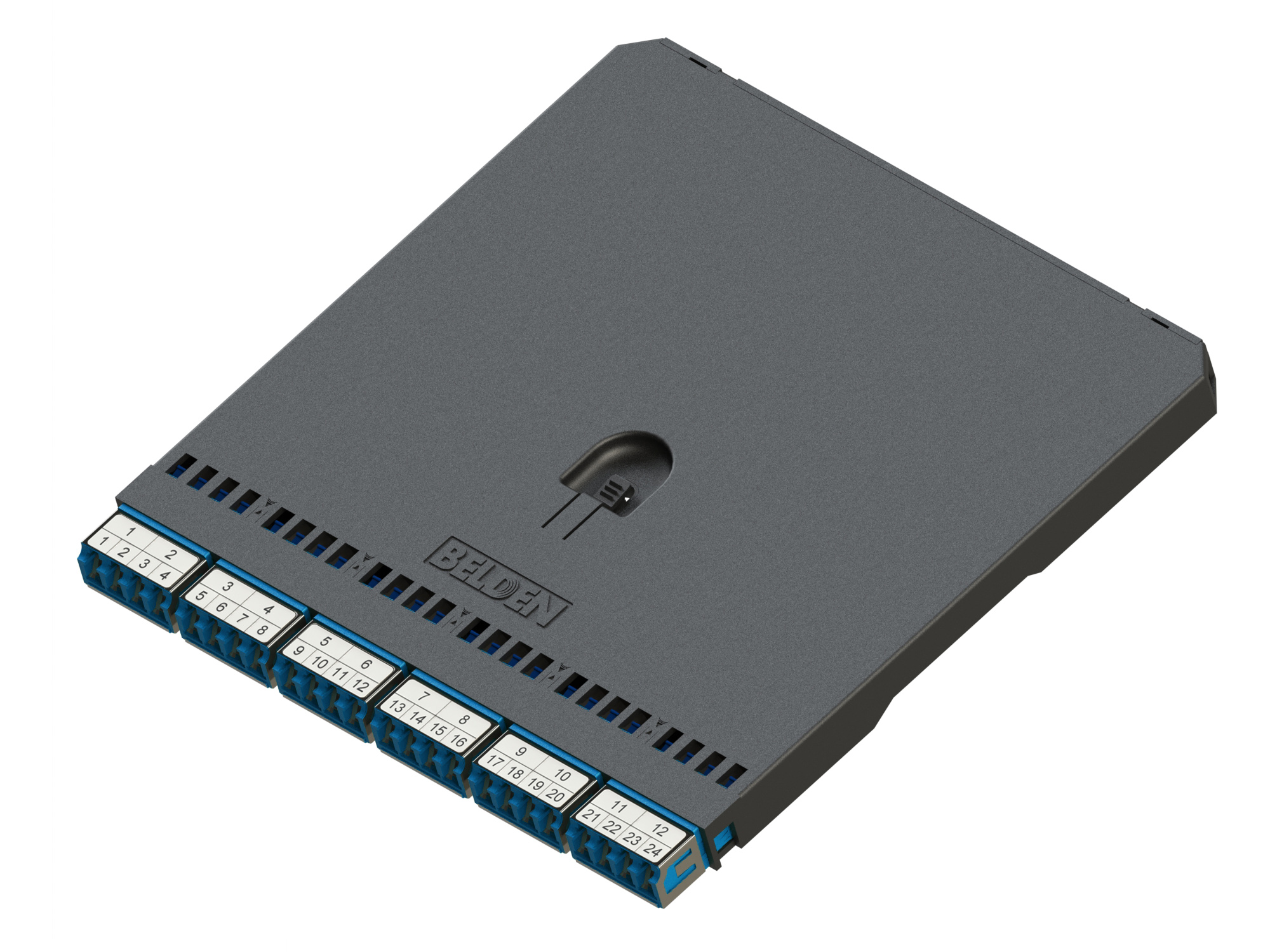

FX DCX Splice Cassette, OS2, 12 Ports LC Duplex

FX DCX Splice Cassette, OS2, 12 Ports LC Duplex, Blue Adapters

  • 上架时间:
    Global
  • 状态:
    有源
FCSD12LDFS
  • FCSD12LDFS
1 的 1

规格

Expand All

Suitable Applications

DCX, Data Centers, Central Equipment Room

Weight

0.360 lbs

Overall Height

0.500 in

Overall Width

6.830 in

Depth

7.190 in

Max Capacity

24 Fibers

Mechanical Tests

Description

Operating Temperature Range

-10 to 60°C

Storage Temperature Range

-10 to 60°C

Materials

Description Material Color Type
Cassette Assembly Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Blue LC Duplex
Adapter Sleeve Zirconia-Ceramic

MII Order #39 (China RoHS)

EUP 50

Included Parts

Cable rubber retention (2mm, 3mm)

Related Parts

DCX Frames, Modules, and Patch Panels

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Update and Revision

Revision Number: 0.93 Revision Date: 10-21-2025

Update and Revision

Revision Number: 0.93 Revision Date: 10-21-2025


Report An Error

零件编号

Item # Connector Type
FCSD12LDFS LC Duplex
