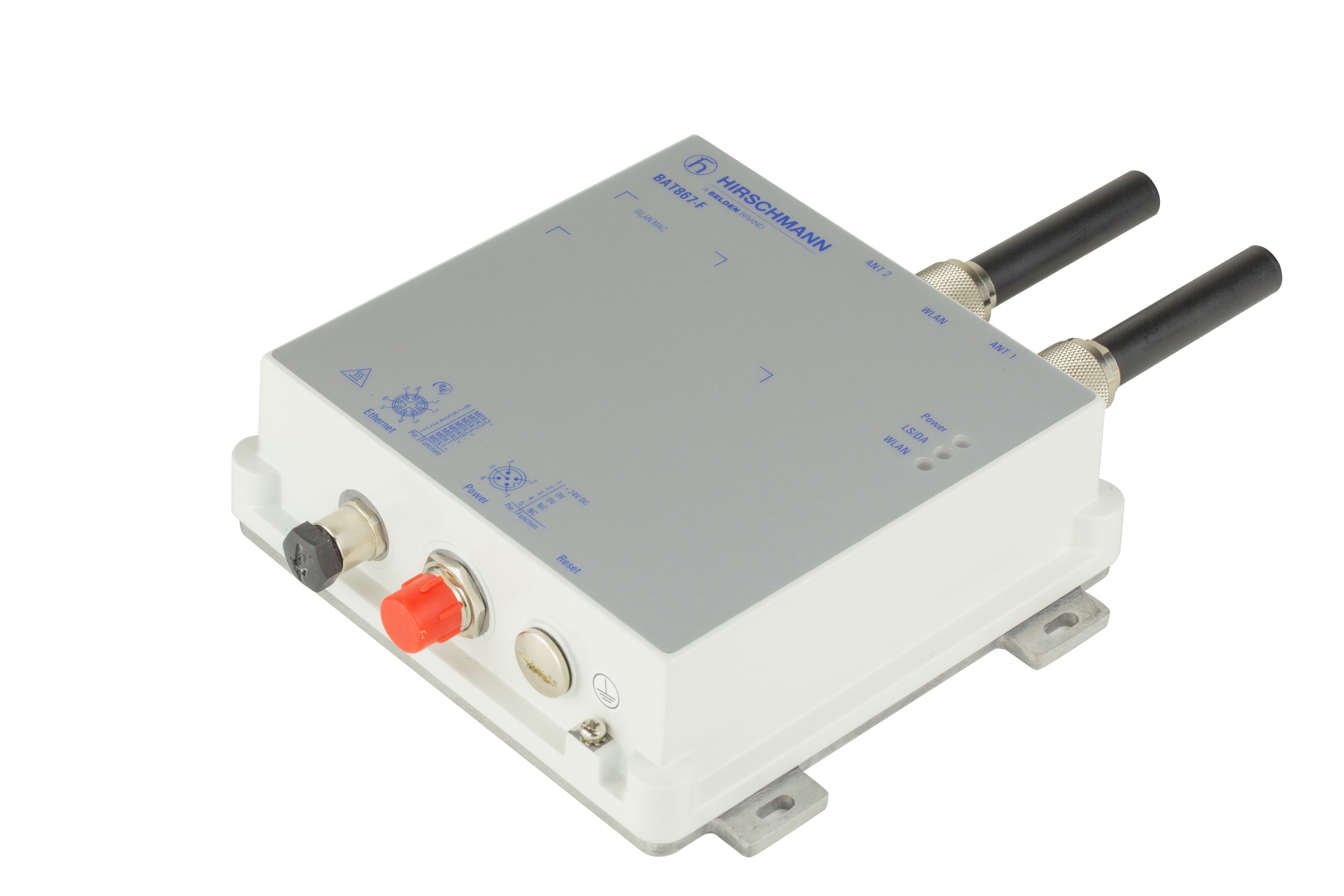

Wireless Accessories - BAT867-F Europe for Transportation

802.11ac IP65/IP67 WLAN Gateway, 2x2 MIMO, Dual Band,, Europe,, Accessories included,, Connectors included

上架时间:

Global
状态:

Limited Std Warranty Period

报价

规格
零件编号
资源

规格

Product Overview

Port Type and Quantity	1x Ethernet M12 X-Coded,, 1x Power M12 A-Coded

Product Life Cycle

Life Cycle	Limited Std Warranty Period - the product is no longer manufactured but service may be available for active equipment
Discontinuation Announcement Date	2024-11-14
Last Order Date	2025-03-31
Last Delivery Date	2025-07-31
Last Service Date	2030-12-31

General Information

Scope of delivery	Device, safety instructions, dust protection caps,, EU declaration of conformity,, outdoor safety instructions,, 2x Antenna (BAT-ANT-N-3AGN-IP67), 1x 50 Ω terminating resistor, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7),, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7)

Scope of delivery

Device, safety instructions, dust protection caps,, EU declaration of conformity,, outdoor safety instructions,, 2x Antenna (BAT-ANT-N-3AGN-IP67), 1x 50 Ω terminating resistor, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7),, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7)

More Interfaces

Local Management and Device Replacement	Webinterface, HiDiscovery v1, Config files and scripts, Different config levels (factory, customer-specific, rollout, running)
Ethernet Connector Type	1x 10/100/1000Mbit/s
Power Supply	PoE PD via Ethernet M12 X-Coded,, 24VDC via M12 A-coded 5-pin,, field assembly connectors included,, field assembly connectors included

Radio technology

Modules

Description	Antenna Connector	Additional Radio Features	Radio Protocol	Frequency Band	Modulation	Access Point Functionality	Client / STA Functionality
Module 1	2x N-Type Female Socket, requires N-Type Male Connectors on the Antenna	2x2 MIMO (configurable). Up to 2 streams (configurable). Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)	IEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac , 802.11F (IAPP) as Access Point, 802.11r as Access Point	Supports 2.4 GHz or 5 GHz: 2412-2472 MHz or 5180-5825 MHz (regulatory restrictions apply depending on the country of operation)	OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM; Note: MCS numbering changed with 11ac. Supported rates with up to 2 streams: MCS0-MCS9. Channel widths: 20MHz, 40MHz and 80MHz	Yes (Free selection between Access Point, Access Client and Point-to-Point functionality separately in software). Operates as Managed Access Point in combination with a BAT Controller (WLC). PMK Caching, Preauthentication, OKC (Opportunistic Key Caching).	Yes (Can be switched in software between AP, P2P, Client)

Power requirements

Operating Voltage	PoE PD 802.3af Class 3,, 24 VDC (18-32 VDC)
Power Consumption	Maximum power consumption : 9 W

Diagnostics features

Monitoring	Syslog (UDP), SNMPv1/2c/3, (W)LANMonitor, Console, Email (SMTP)

Service

Other services	DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP

Software

Software features	High performance operating system HiLCOS. Supports WLAN functions, routing, firewall, VLAN and redundancy. IPv4 and IPv6.
Operating system	HiLCOS, stores two separate firmware versions for fallback
Switching	IGMP Snooping, VLAN (802.1Q), Switching over WLAN (Client Briding or P2P)
Redundancy	RSTP, VRRP v2
Diagnostics	System log, reboot log, signal strength, Trace (via Lantools or Console), LEDs, IPerf Server and Client
Configuration	Text file configuration and script, HTTP(s), Console (SSH, Telnet), SNMPv1/2c/3, LANConfig
Time synchronisation	SNTP Client, SNTP Server
Routing	Static unicast routing, RIP, Multinetting, IP Masquerading, Port Forwarding, Proxy ARP, 1-to-1 NAT, 1-to-N NAT, N-to-N NAT
Management Software	Industrial HiVision , LANConfig,, optional BAT Controller (WLC for AccessPoint mode)
