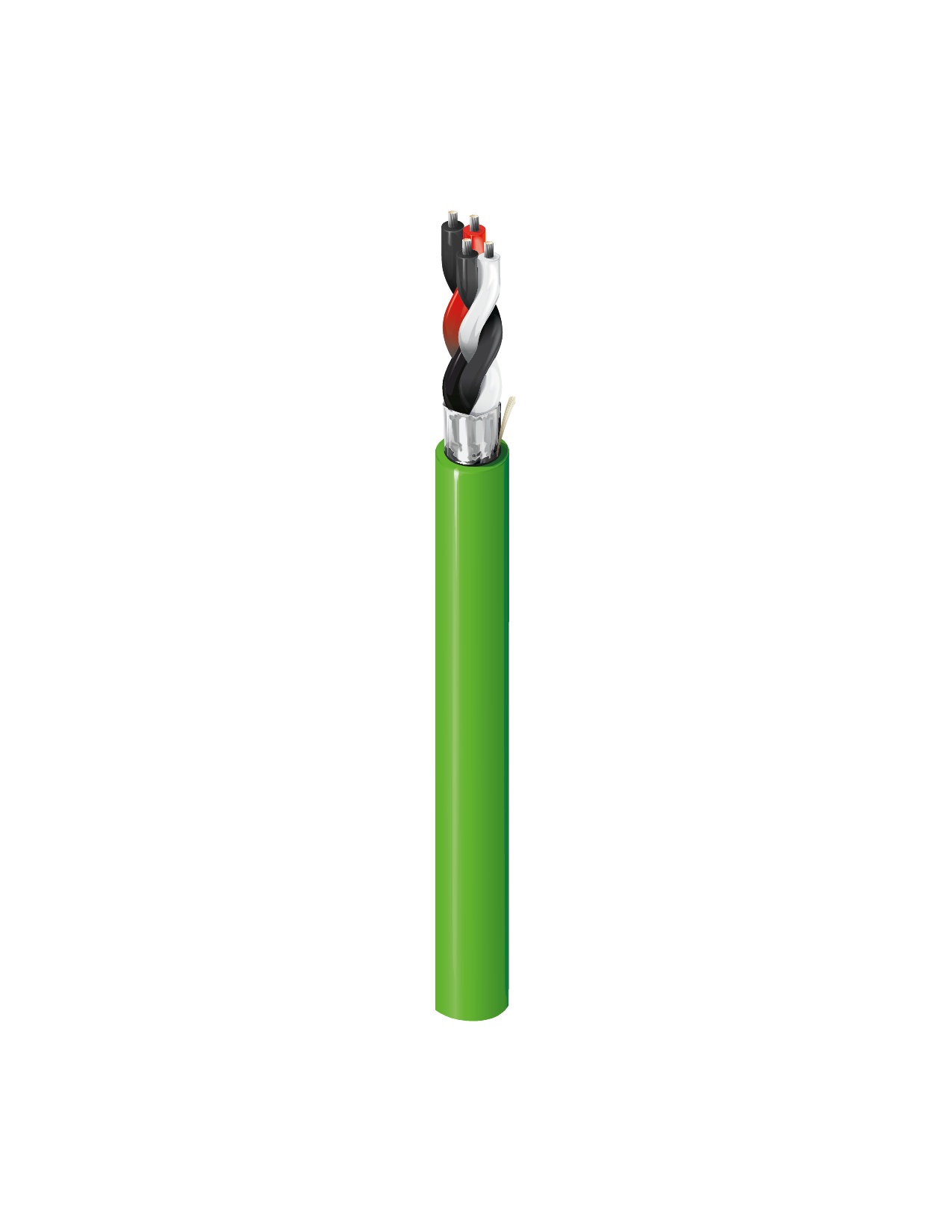

Product Number: DEIP142F

Digital Electricity™, 2 Pr #14 Str TC, O/A Foil, Flamarrest® Jkt, CL4P, CL3P

Digital Electricity™ Optimized Cable, 2 Twisted Pair 14 AWG (19 x 27) Stranded Tinned Copper, Flamarrest® Insulation, Overall Foil Shield, Flamarrest® Apple Green Jacket, Ripcord, CL4P, CL3P, 2000 Ft Reel

  • Availability:
    Global
  • Status:
    Active
DEIP142F
  • DEIP142F
1 of 1

规格

Expand All

Suitable Applications

Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, indoor

Conductor

Size Stranding Material
14 19x27 TC - Tinned Copper

Insulation

Material Nom. Thickness Color Code
PVC - Polyvinyl Chloride 0.011 in (0.28 mm) Black & Red, Black & White

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.391 in (9.93 mm)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
2.75 Ohm/1000ft 41 pF/ft (130 pF/m) 74 pF/ft (240 pF/m)
11 Amps per Conductor at 25ºC (35°C Temperature Rise)

Nom Outer Shield DCR@Cond DCR1-cnv

11.6 Ohm/1000ft (38.1 Ohm/km)

Voltage

UL Voltage Rating
450 V RMS

Temperature

UL Temperature Operating
75°C 0°C To +75°C

Max. Pull Tension

190 lbs (86 kg)

Bulk Cable Weight

79 lbs/1000ft

Environmental Suitability

Indoor

Flammability / Reaction to Fire

NFPA 262

NEC / UL Compliance

Article 725, CL4P, CL3P

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-27

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.54 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.54 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color Length
DEIP142F Apple Green 2,000 ft
