产品编号: 1172A

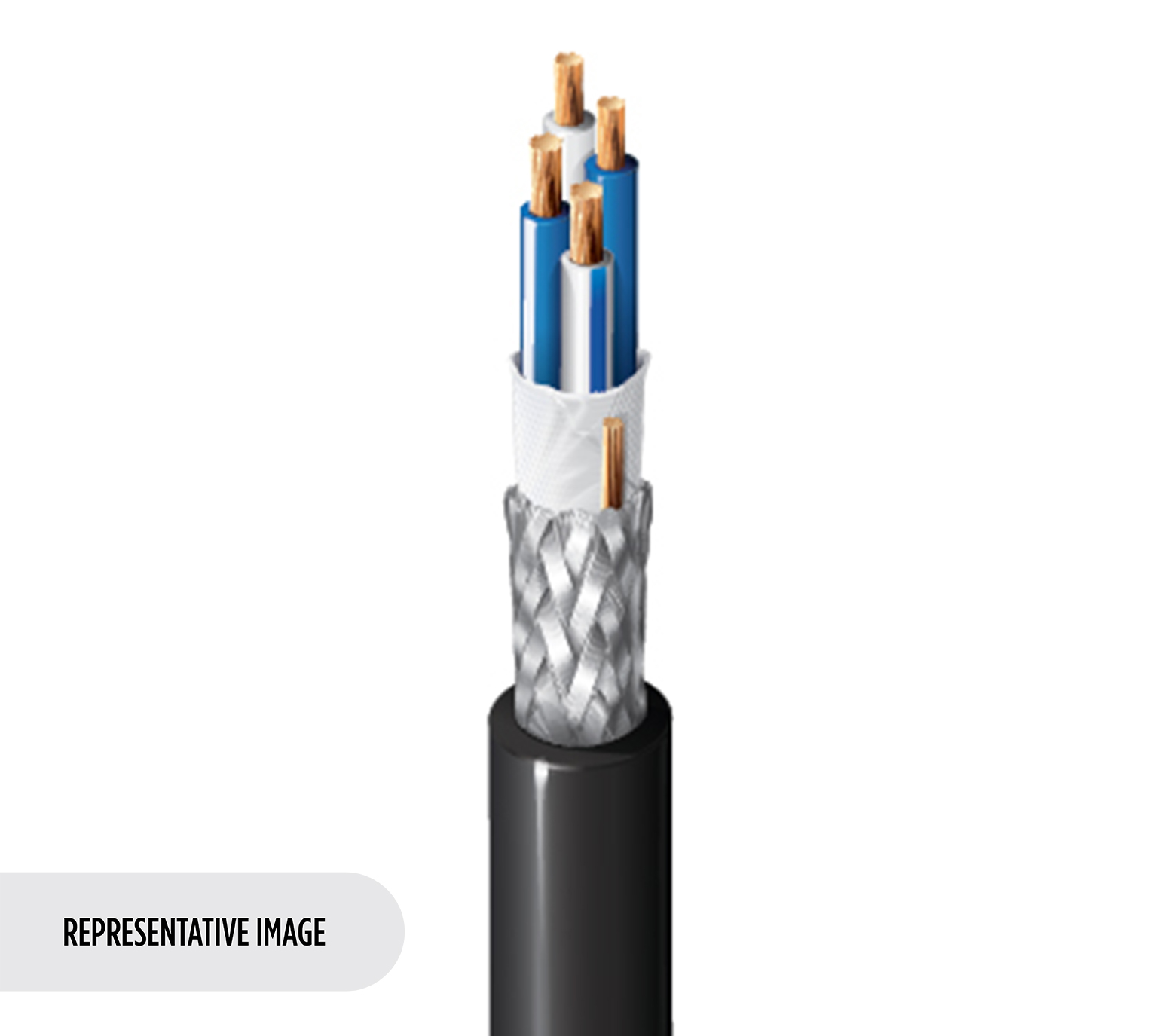

Microphone Cable, Star Quad, 4 C #26 Str BC, 95% TC French Braid, PVC Jkt, Flexible

Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) High Conductivity Bare Copper, PE Insulation, 95% Tinned Copper French Braid Shield, PVC Jacket, Flexible

  • 上架时间:
    Global
  • 状态:
    有源
1172A
  • 1172A
1 的 1

规格

Expand All

Suitable Applications

Microphone, Low Noise for high-EMI environments; Line level balanced analog audio

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 4 26 AWG 30x40 BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene 0.013 in (0.33 mm) 0.045 in (1.1 mm) Blue, White, Blue/White Stripe, White/Blue Stripe

Outer Shield

Shield Type Material Coverage Drainwire Type Notes
French Braid Tinned Copper (TC) 95% 28 AWG (19x40) BC Paper tape under braid with drain over tape

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.031 in (0.79 mm) 0.190 in (4.83 mm)

Overall Cable Diameter (Nominal)

0.190 in (4.83 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Inductance Nom. Velocity of Prop. Max. Current
Conductor(s) 36 Ohm/1000ft 39.2 pF/ft (129 pF/m) 0.21 µH/ft (0.69 µH/m) 66% 2.32 Amps per conductor @ 30°C

Nom Outer Shield DCR@Cond DCR1-cnv

6.8 Ohm/1000ft (22 Ohm/km)

Voltage

Voltage Rating
100 V

Temperature

Operating
-20°C to +60°C

Bend Radius

Stationary Min. Installation Min.
1.9 in (48 mm) 1.9 in (48 mm)

Max. Pull Tension

37.5 lbs (17.0 kg)

Bulk Cable Weight

25 lbs/1000ft

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor.

Update and Revision

Revision Number: 0.525 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.525 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

零件编号

Item # Color Putup Type Length UPC Footnote
1172A B59500 Black, Matte Reel 500 ft 612825107774
1172A B591000 Black, Matte Reel 1,000 ft 612825107767 C
1172A B59N1000 Black, Matte Reel w/Small Barrel 1,000 ft 612825367055
1172A G7X1000 Blue, Matte Reel 1,000 ft 612825107804
1172A U901000 Gray, Matte Reel 1,000 ft 612825107835
1172A G7W1000 Green, Matte Reel 1,000 ft 612825107798
1172A G8C1000 Purple, Matte Reel 1,000 ft
1172A G7V1000 Red, Matte Reel 1,000 ft 612825107781
1172A G7Y1000 White, Matte Reel 1,000 ft 612825107811
1172A G8M1000 Yellow, Matte Reel 1,000 ft 612825107828
