产品编号: 3092T

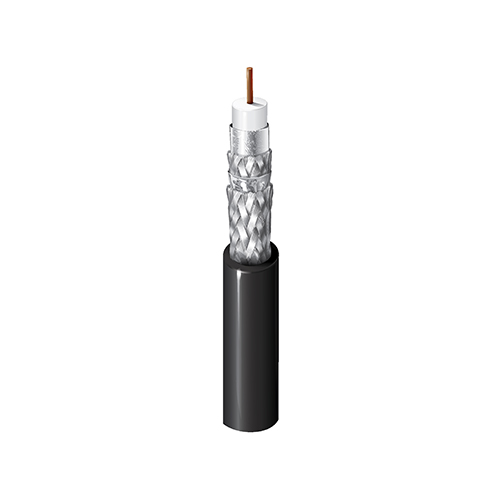

ControlBus™, Coax RG6, #18 Sol BCCS, PO Ins, QUAD AL Shld, LSZH Jkt, CMG

ControlBus™, Coax RG6 18AWG (Solid) Bare Copper Covered Steel, PO Insulation, Overall Duofoil®+ Aluminum Braid(60%)+Overall Duofoil®+Aluminum Braid(40%) Shield, LSZH Outer Jacket, CMG

  • 上架时间:
    Global
  • 状态:
    有源
3092T
  • 3092T
1 的 1

规格

Expand All

Suitable Applications

harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

RG Type

6

Conductor

Size Stranding Nom. Diameter Material
18 Solid 0.040 in BCCS - Bare Copper Covered Steel

Insulation

Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 0.180 in (4.57 mm)

Outer Shield

Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
4 Braid Aluminum 60%

Outer Jacket

Material Nom. Diameter
PE - Polyethylene 0.3 in

Outer Jacket1 Table Notes

Flame Retardant

Return Loss

Frequency Min. Structural Return Loss
5-50 MHz 23 dB

Attenuation

Frequency Nom. Attenuation
1 MHz 0.35 dB/100ft
2 MHz 0.38 dB/100ft
5 MHz 0.45 dB/100ft
10 MHz 0.59 dB/100ft
20 MHz 0.86 dB/100ft
50 MHz 1.37 dB/100ft
100 MHz 1.97 dB/100ft
200 MHz 2.82 dB/100ft
300 MHz 3.48 dB/100ft
400 MHz 4.04 dB/100ft

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft (92 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%

Voltage

UL Voltage Rating
300 V RMS

Temperature

UL Temperature Operating
75°C -20°C To +75°C

Max. Pull Tension

162 lbs (73.5 kg)

Bulk Cable Weight

35 lbs/1000ft (52 kg/km)

Flammability / Reaction to Fire

1202, IEC 60332-3-22

NEC / UL Compliance

CL2, CMG

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.332 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.332 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color UPC
3092T 0105000 Black 612825141433
