产品编号: 3094A

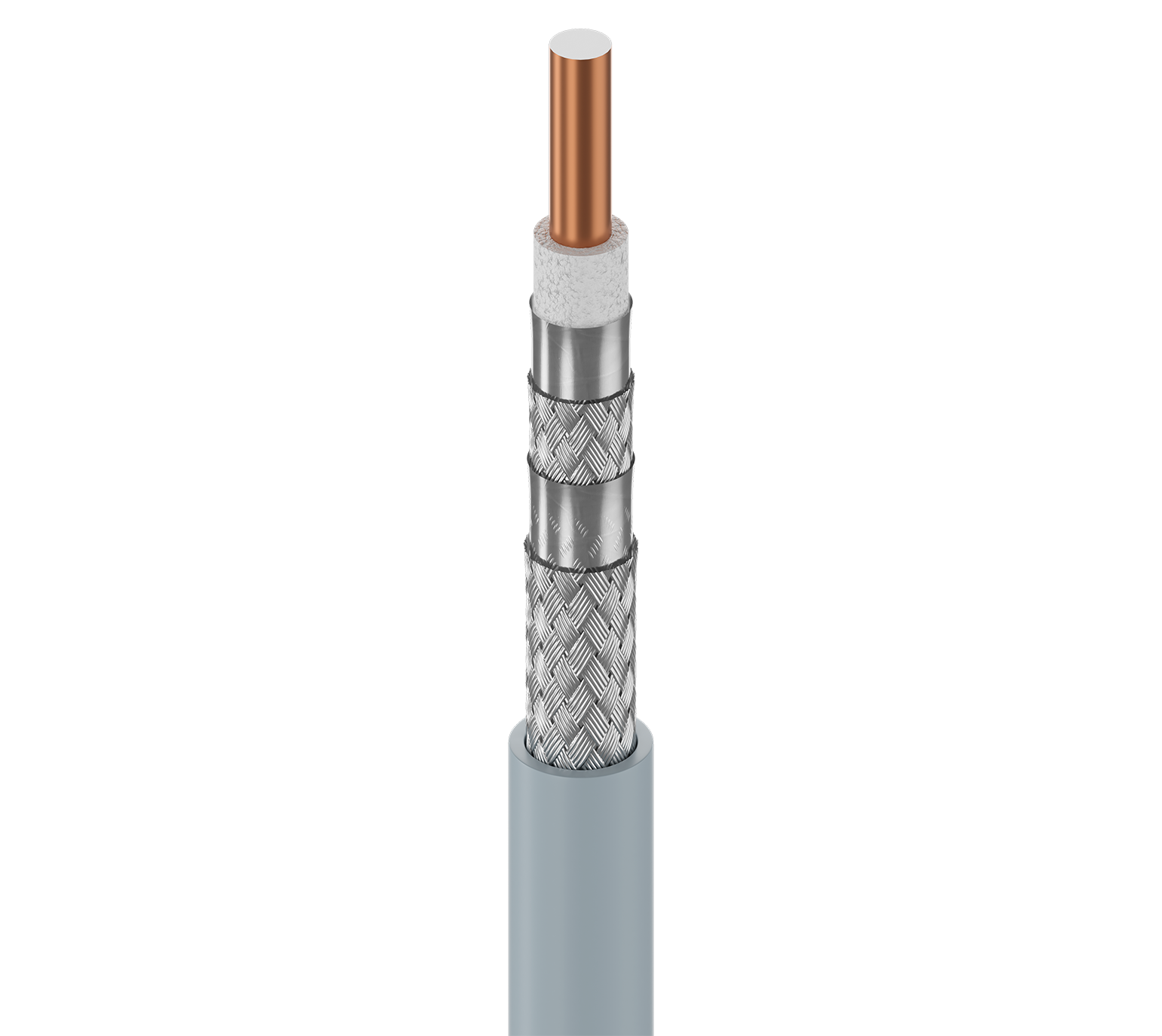

ControlBus™, Coax RG-11, #14 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR

Coax RG-11 14AWG (Solid) Bare Copper Covered Steel, Foam PE Insulation, Overall Duobond® II+ Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVC Outer Jacket, CMR

  • 上架时间:
    Global
  • 状态:
    有源
3094A
  • 3094A
1 的 1

规格

Expand All

Suitable Applications

Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

RG Type

11

Conductor

Size Stranding Nom. Diameter Material
14 AWG Solid 0.064 in BCCS - Bare Copper Covered Steel

Insulation

Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.280 in (7.11 mm) White Gas Injected

Outer Shield

Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
4 Braid Aluminum 40%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.407 in (10.3 mm)

Overall Cable Diameter (Nominal)

0.407 in (10.3 mm)

Return Loss

Frequency Min. Structural Return Loss
5 - 400 MHz 20 dB

Attenuation

Frequency Nom. Attenuation
1 MHz 0.16 dB/100ft
2 MHz 0.18 dB/100ft
5 MHz 0.26 dB/100ft
10 MHz 0.38 dB/100ft
20 MHz 0.55 dB/100ft
50 MHz 0.83 dB/100ft
100 MHz 1.17 dB/100ft
200 MHz 1.60 dB/100ft
300 MHz 1.99 dB/100ft
400 MHz 2.30 dB/100ft

Electricals

Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
11.5 Ohm/1000ft 1.8 Ohm/1000ft (5.9 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 83%

Voltage

UL Voltage Rating
300 V (CMR, CMG)

Temperature

UL Temperature Operating
75°C -30°C to 75°C

Bend Radius

Installation Min.
4 in (100 mm)

Max. Pull Tension

234 lbs (106 kg)

Bulk Cable Weight

60 lbs/1000ft

Environmental Suitability

Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1666 Riser

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMR, CL2R

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

3095A

Notes

Tap marks every 2.6 meters to aid users in installation.

Update and Revision

Revision Number: 0.515 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.515 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

零件编号

Item # Color Putup Type Length UPC Footnote
3094A F2V500 Gray, DEC Reel 500 ft 612825141525
3094A F2V1000 Gray, DEC Reel 1,000 ft 612825141501
3094A F2V2000 Gray, DEC Reel 2,000 ft 612825141518 C
