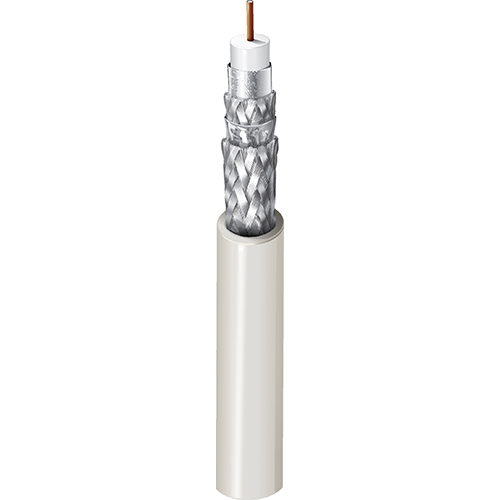

产品编号: 3132A

ControlBus™, Coax RG6, #18 Sol BCCS, FEP Ins, QUAD AL Shld, PVDF Jkt, CMP

ControlBus™, Coax RG6 18AWG (Solid) Bare Copper Covered Steel, FEP Insulation, Overall Duofoil®+ Aluminum Braid(60%)+Overall Duofoil®+Aluminum Braid(40%) Shield, PVDF Outer Jacket, CMP

  • 上架时间:
    Global
  • 状态:
    有源
3132A
  • 3132A
1 的 1

规格

Expand All

Suitable Applications

harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

Conductor

AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BCCS - Bare Copper Covered Steel 0.04 in 1

Conductor Count

1

Insulation

Material Nominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam) 0.17 in

Outer Shield

Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Aluminum 60%
Tape 3 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 4 Aluminum 40%

Outer Jacket

Material Nominal Diameter
PVDF - Polyvinylidene Fluoride 0.274 in

Conductor DCR

Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
28 Ohm/1000ft 7.2 Ohm/1000ft 7.2 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Shield
16.3 pF/ft

Inductance

Nominal Inductance
0.093 µH/ft

Impedance

Nominal Characteristic Impedance Nominal Characteristic Tolerance
100 Ohm ± 3 Ohm

High Frequency (Nominal/Typical)

Frequency [MHz] Nom. Insertion Loss
1 MHz 0.36 dB/100ft
2 MHz 0.38 dB/100ft
5 MHz 0.5 dB/100ft
10 MHz 0.65 dB/100ft
20 MHz 0.95 dB/100ft
50 MHz 1.5 dB/100ft
100 MHz 2.12 dB/100ft
200 MHz 2.99 dB/100ft
300 MHz 3.66 dB/100ft
400 MHz 4.23 dB/100ft

Delay

Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 82%

Phase Delay Distortion

f/B %PDD/100M (5MB)
0.5 -0.54
1 -0.19
1.5 0
2 0.16
2.5 0.3

High Frequency

Frequency [MHz] Min. SRL (Structural Return Loss)
1 MHz 23 dB
2 MHz
5 MHz
10 MHz
20 MHz
50 MHz
100 MHz
200 MHz
300 MHz
400 MHz

Voltage

UL Voltage Rating
300 V RMS

Electrical Characteristics Notes

Tilt 5 to 10 MHz: .48 dB/100 M

Other Electrical Characteristic 2

Tilt 10 to 20 MHz: .93 dB/100 M

Other Electrical Characteristic 3

Sweep Tested 5 to 400MHz.

UL Temperature Rating

150°C

Operating Temperature Range

-20°C To +150°C

Bulk Cable Weight

43 lbs/1000ft

Maximum Recommended Pulling Tension

104 lbs

Minimum Minor Axis Bend Radius

2.75 in

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

RG Type

6

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability - Burial

Yes

Suitability - Outdoor

Yes

UL Flammability

NFPA 262

CSA Flammability

FT6

UL voltage rating

300 V RMS

Plenum (Y/N)

Yes

Non-Plenum Number

3131A

Footnote

C - CRATE REEL PUT-UP.

Notes

Tap Marks Every 2.6 Meters to aid in users installation.

Update and Revision

Revision Number: 0.417 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.417 Revision Date: 02-03-2025


Report An Error

零件编号

Item # Color Put-Up Type Length UPC
3132A F2V1000 Gray, DEC Reel 1,000 ft 612825142065
