产品编号: 37506

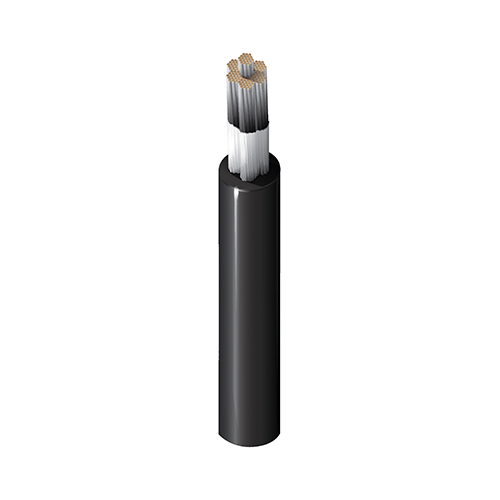

Lead Wire, #6 Str TC, EPDM Ins, AWM 3499

Rubber Lead Wire, 6AWG (84x25) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C

  • 上架时间:
    Global
  • 状态:
    有源
37506
  • 37506
1 的 1

规格

Expand All

Suitable Applications

internal wiring of appliances, high voltage and high temperature applications

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 1 6 AWG 84x25 TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter
EPDM - Ethylene Propylene Diene Monomer 0.131 in (3.33 mm) 0.47 in (12 mm)

Overall Cable Diameter (Nominal)

0.47 in (12 mm)

Electricals

Nom. Conductor DCR Max. Current
0.431 Ohm/1000ft 153.6 Amps per Conductor at 30ºC

Voltage

UL Voltage Rating
7500 V (AWM 3499)

Temperature

UL Temperature Operating
150°C -55°C To +150°C

Bend Radius

Stationary Min. Installation Min.
4.7 in (120 mm) 4.7 in (120 mm)

Max. Pull Tension

304 lbs (138 kg)

Bulk Cable Weight

165 lbs/1000ft

Environmental Suitability

Indoor, Outdoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

Horizontal flame

AWM Compliance

AWM 3499

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Separator Material over Conductor: Y,

Update and Revision

Revision Number: 0.489 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

Update and Revision

Revision Number: 0.489 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

Report An Error

零件编号

Item # Color Putup Type Length UPC Footnote
37506 01050 Black Reel 50 ft 612825147336 C
37506 010500 Black Reel 500 ft 612825147343 C F
37506 0101000 Black Reel 1,000 ft 612825147329 C F
