产品编号: 9579

Electronic, 4 C #16 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR

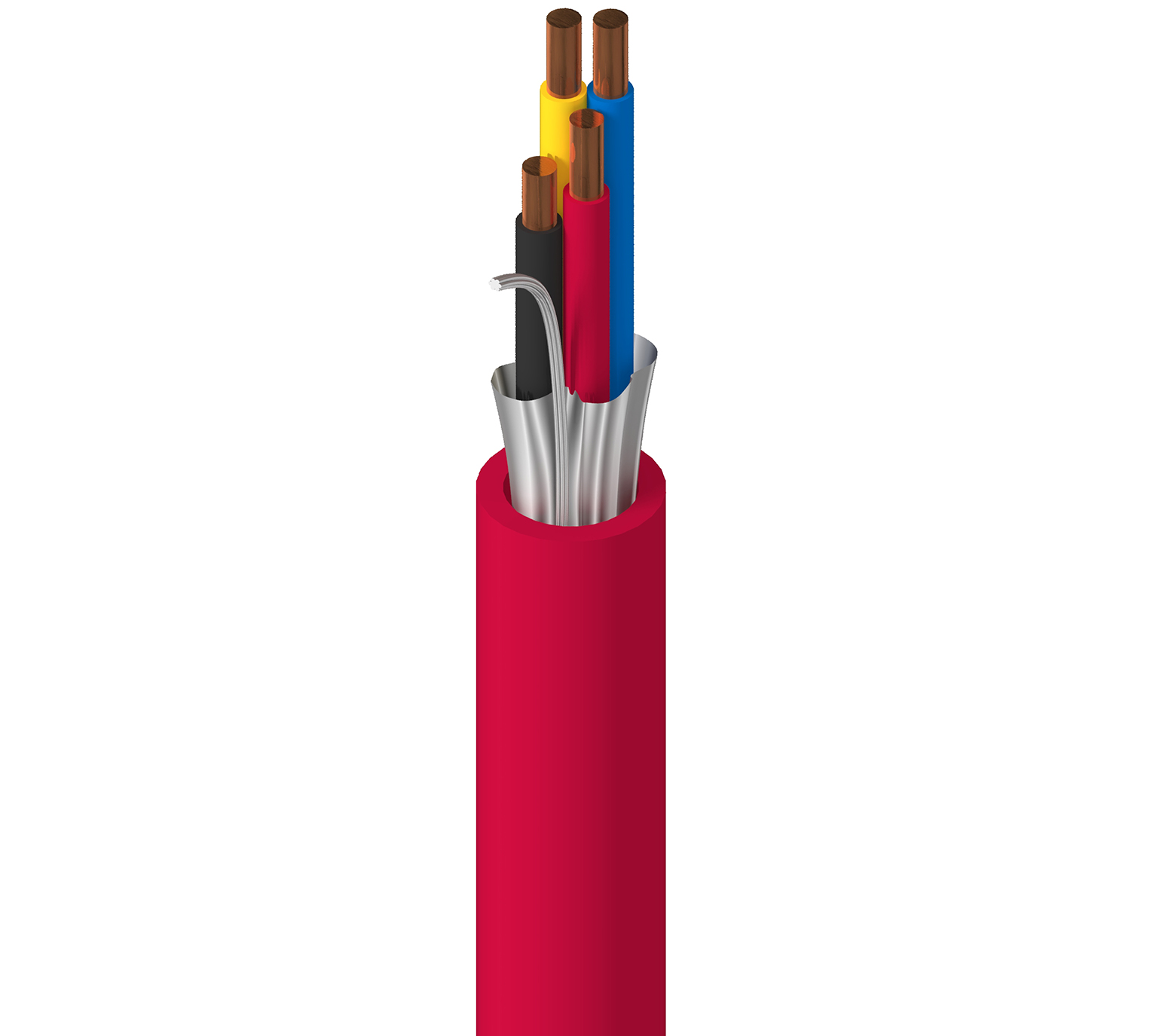

Electronic, 4 Conductor 16AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR

  • 上架时间:
    Global
  • 状态:
    有源
9579
  • 9579
1 的 1

规格

Expand All

Suitable Applications

fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 4 16 AWG Solid BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.018 in (0.46 mm) 0.087 in (2.2 mm) Black, Red, Yellow, Blue

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.042 in (1.1 mm) 0.301 in

Overall Cable Diameter (Nominal)

0.301 in

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 4.1 Ohm/1000ft 53 pF/ft (170 pF/m) 98 pF/ft (320 pF/m) 9.6 Amps per Conductor at 25ºC

Nom Outer Shield DCR@Cond DCR1-cnv

9.2 Ohm/1000ft (30 Ohm/km)

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
105°C -40°C To +105°C

Bend Radius

Stationary Min. Installation Min.
3.01 in (76.5 mm) 3.01 in

Max. Pull Tension

133 lbs (60.3 kg)

Bulk Cable Weight

65 lbs/1000ft

Environmental Suitability

Indoor, Indoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1666 Riser, FT4

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 760, Article 800, CMR, FPLR

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG, FAS105

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

California State Fire Marshall

Update and Revision

Revision Number: 0.577 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.577 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.
