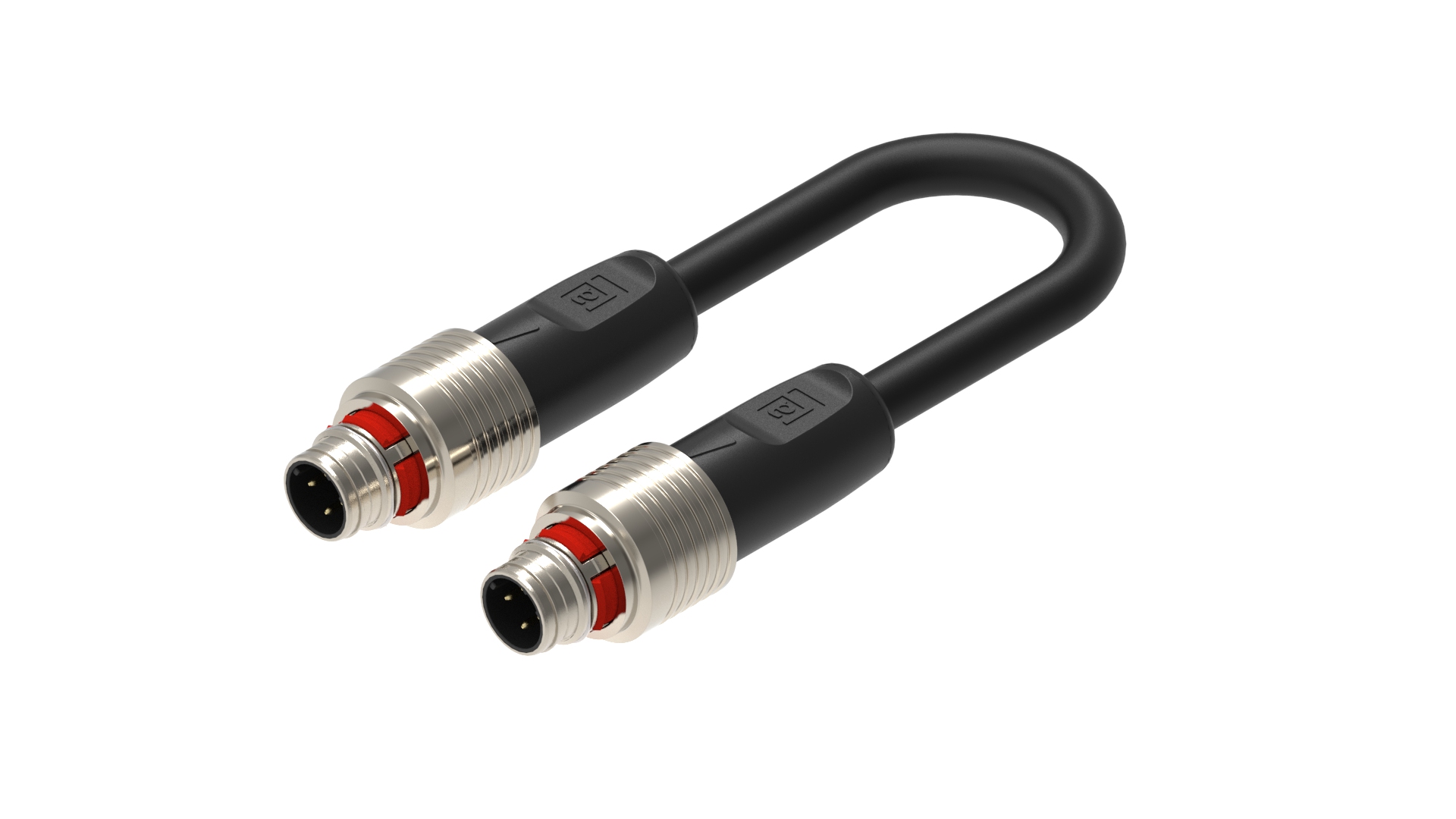

产品编号: RP12M-MSSV4D-RP12M-MSSV4D-0508
M12 cordset, Push Pull, Rolling Stock, EN45545, PUR black cable, shielded, male, straight, D-coded, 4-Pin, 4x0.34mm², PoE
M12 cordset, Push Pull acc. to IEC 61076-2-010, Rolling Stock, EN45545-2, PUR black cable, shielded, male to male, straight to straight, D-coded, 4-Pin, 2x0.34mm², PoE, 100BASE-T, CAT 5, 50 V AC / 60 V DC, 4 A, - 40 °C - + 85 °C (operating temp.), IP65, IP67, DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1, CSA FT-1, DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Free of lacquer wetting disturbing substances, Exclusion of silicone, Coldness flexibilty
-
上架时间:
Global
-
状态:
有源
- 规格
- 零件编号
规格
Face View Side 1
|
Product Family |
Data Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding Type |
Shielded |
|
Voltage Rating |
60 V |
|
Rated Impulse Voltage |
1.5 kV |
|
Operating Voltage |
50 V AC / 60 V DC |
|
Current Rating |
4 A |
|
Data Transmission Type |
Fast Ethernet Cat5e |
|
Data Transmission Rate |
100 Mbit/s |
Technical Data Side 1
|
Side 1 Product Sub Family |
M12 Railway push pull |
|---|---|
|
Side 1 Type of Contact/Gender |
Male |
|
Connector Design |
Straight |
|
Attachment Type |
Snap Ring |
|
Number of Pins |
4 |
|
Coding, Side 1 |
D |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 85 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|
Side 1 Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
PA |
|
Molded Body Color |
Black |
|
Flammability Class (Molded Body) |
UL 94 V-0 |
|
Attachment Material |
PA |
|
Shielding Material |
GD-Zn, nickel-plated |
|
Fastening Torque (Attachment) |
PushPull |
Cable Data
|
Cable Number |
508 |
|---|---|
|
Conductor Size |
0.34 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor Material |
Cu |
|
Cable Jacket Material |
X-FRNC |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 6.70 ± 0.30 mm |
|
Wire Insulation Material |
Polyolefin |
|
Insulated Wire Diameter |
ø 1.63 ± 0.05 mm |
|
Overall Shield (Cable) |
Cu-ETP1 tinned |
|
Foil shield |
Al-PT Foil |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 90 °C |
|
Ambient Temperature (Flex Installation) |
- 40 °C - + 90 °C |
|
Flammability Class (Cable Jacket) |
Flame resistance acc. IEC 45545: IEC 60332-1-2, EN50305 and IEC60332-3-25 cat D |
|
Cable Characteristics |
cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN50153 EN50155, EN50305 and CEN/TS 45545 |
|
Core Colors |
white & blue, yellow & orange |
Technical Data Side 2
|
Side 2 Product Sub Family |
M12 Railway push pull |
|---|---|
|
Side 2 Type of Contact/Gender |
Male |
|
Connector Design, Side 2 |
Straight |
|
Attachment Type, Side 2 |
Snap Ring |
|
Number of Pins, Side 2 |
4 |
|
Coding, Side 2 |
D |
|
Contact Resistance, Side 2 |
≤ 10 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
≤ 100 |
|
Protection Degree / IP Rating, Side 2** |
IP65, IP67 |
|
Pollution Degree, Side 2 |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category, Side 2 |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
CuSn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
PA |
|
Contact Bearer Color, Side 2 |
Black |
|
Flammability Class (Contact Bearer), Side 2 |
UL 94 V0 |
|
Molded Body Material, Side 2 |
PA |
|
Molded Body Color, Side 2 |
Black |
|
Flammability Class (Molded Body), Side 2 |
UL 94 V0 |
|
Attachment Material, Side 2 |
PA |
|
Shielding Material, Side 2 |
GD-Zn, nickel-plated |
|
Fastening Torque (Attachment), Side 2 |
PushPull |
Safety & Environmental Compliance
|
RoHS Compliant |
yes |
|---|
Resistances
|
Halogenfree |
IEC 60754-1, EN 50267-1-2, HCL ˂ 0.4% |
|---|---|
|
Oil Resistance |
IEC 60811-2-1, EN 50306 par 4.8, EN 50306 par 4.9, EN 50306 par 4.10 |
Notes
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
* Notice derating |
History
|
Update and Revision |
Revision Number: 0.16 Revision Date: 05-04-2025 |
|---|
信息
|
Update and Revision |
Revision Number: 0.16 Revision Date: 05-04-2025 |
|---|
零件编号
| Item # | Item Description |
|---|---|
| 935302008 | RP12M-MSSV4D-RP12M-MSSV4D-0508-0500 |
| 935302007 | RP12M-MSSV4D-RP12M-MSSV4D-0508-0300 |
| 935302006 | RP12M-MSSV4D-RP12M-MSSV4D-0508-0200 |
| 935302005 | RP12M-MSSV4D-RP12M-MSSV4D-0508-0100 |
