产品编号: 0905 203 301

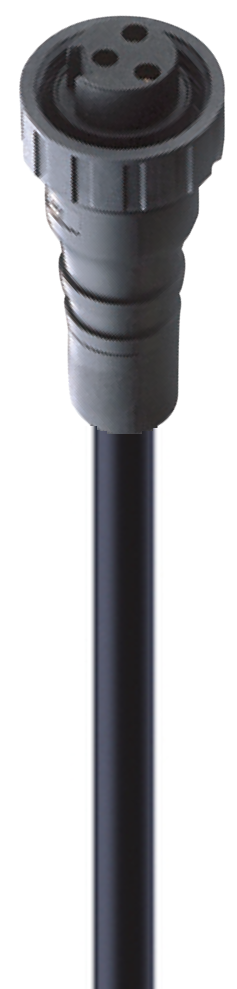

DeviceNet Power Supply Cable, 7/8" Power Single-Ended Cordset: Female straight, 3-pin(2+PE), black body, 63 V, 12 A; PUR black cable, 1.00 mm²

0905 203 301 - DeviceNet Power Supply Cable, 7/8" Power Single-Ended Cordset: Female straight, 3-pin(2+PE), black body, 63 V, 12 A; PUR black cable, 1.00 mm²

  • 上架时间:
    Global
  • 状态:
    有源
0905 203 301
  • 0905 203 301
1 的 1

规格

Expand All

Product Family

Power Connector

Side 1 Product Sub Family

7/8"

Connector Type

Cordset, single ended

Side 1 Type of Contact/Gender

Female

Connector Design

Straight

Number of Pins

3

Coding, Side 1

A

Shielding Type

Unshielded

Attachment Type

Coupling Nut [internal threaded]

Voltage Rating

63 V

Rated Impulse Voltage

0.8 kV

Operating Voltage

≤ 50V AC / 60V DC

Current Rating

12 A

Contact Resistance

10 mOhm

Insulation Resistance

10^9 Ohm

Mating Cycles

max. 50

Ambient Temperature (Operation)*

-40 °C to +90 °C

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

CuZn

Side 1 Contact Plating

Ag/Au

Contact Bearer Material

TPU

Contact Bearer Color

Black

Molded Body Material

TPU

Molded Body Color

Black

Housing Material

TPU

Attachment Material

PA

Cable Number

203

Conductor Size

1 mm²

Number of Wires

3

Minimal Bending Radius (Fixed Inst)

˃ 5 x D

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Cable Jacket Material

PUR

Cable Jacket Color

Black

Cable Diameter D

Ø 6.5 mm

Wire Insulation Material

PVC

Insulated Wire Diameter

Ø 2.2 mm

Ambient Temperature (Fixed Installation)

-40 °C to +90°C

Ambient Temperature (Flex Installation)

-5 °C to +90°C

Ambient Temperature (Drag Chain Inst)

-5 °C to +60°C

Flammability Class (Cable Jacket)

VDE 0482-265-2-1, EN 50265-2-1, IEC 60332-1

Cable Characteristics

Continuous Flex cable; Resistances against, Oil, Grease ,Coolant, Tear, Vibration, UV, and Abrasion

RoHS Compliant

Yes

Halogenfree

Yes

Oil Resistance

Yes

Note Derating

Notice derating

Note Derating

Notice derating
