G Series - RSMV 3-RKT 4-3-224

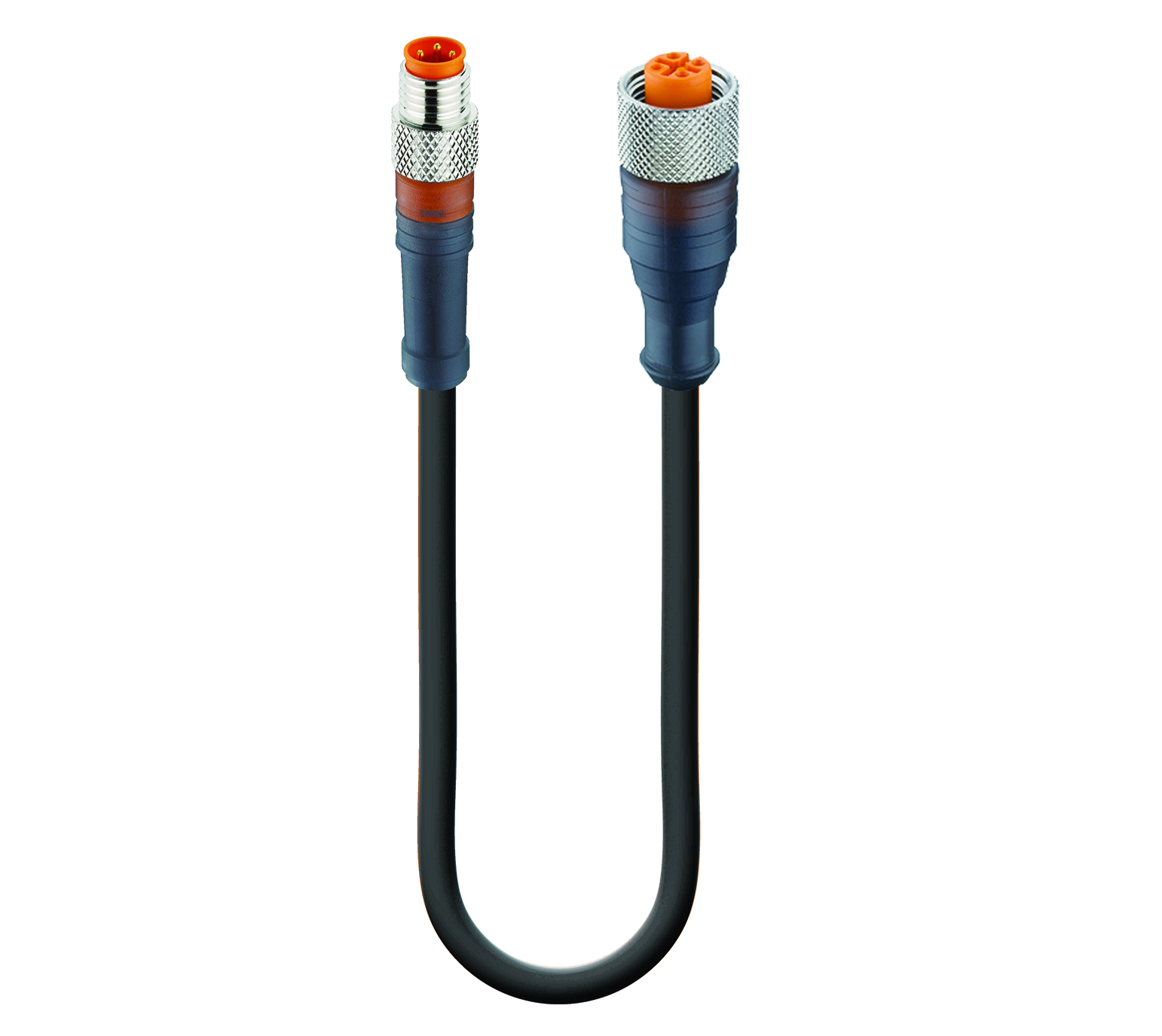

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 3-pin M8 Standard connector to female straight A-coded translucent 4-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 3-wires, 0.34 mm²

上架时间:

Global
状态:

有源

报价

规格
零件编号
资源

规格

Expand All

信息

Face View Side 1

Pin 1	Pin 3	Pin 4
brown	blue	black

Face View Side 2

Pin 1	Pin 2	Pin 3	Pin 4
brown	n.c.	blue	black

Product Family	Sensor / Actuator Connectors
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	60 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Rated Current (UL)*	1

Technical Data Side 1

Side 1 Product Sub Family	M8 Standard
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	3
Coding, Side 1	A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 50 °C
Protection Degree / IP Rating**	IP65, IP67, IP69K
Design Standard	IEC 61076-2-104
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Fastening Torque (Attachment)	M 8x1: 30 Ncm, hand-tight
Note	Do not connect or disconnect under load.

Cable Data

Cable Number	224
Conductor Size	0.34 mm²
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 4.30 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.30 ± 0.10 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness flexibility

Technical Data Side 2

Side 2 Product Sub Family	M12 Standard
Side 2 Type of Contact/Gender	Female
Connector Design, Side 2	Straight
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	4
Coding, Side 2	A
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 90 °C
Operating Temperature (UL), Side 2	max. + 50 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuSn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	TPU
Contact Bearer Color, Side 2	Orange
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Translucent
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
O-Ring Material, Side 2	FKM, green
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
Oil Resistance	Good chemical and oil resistance

Notes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

信息

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating
