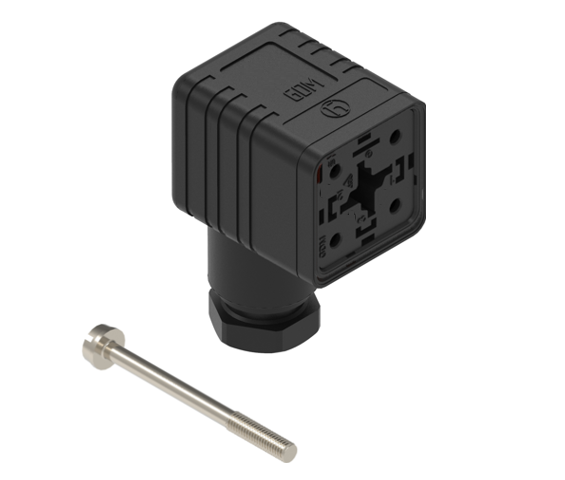

Valve Connectors - GDM 2009 Black

GDM Legacy- 175301-803 (DIN 43650), Form A, 18mm, 2 Pole+Ground (Protective Earth), PG9, Black Housing, without circuitry, 250V | 16 A, Steel Center Screw, Bulk Packaging

上架时间:

Global
状态:

有源

报价

规格
零件编号
资源

规格

Expand All

Face View

Product Life Cycle

Availability	Obsolete with direct replacement
Last Order Date	2024-08-02
Last Delivery Date	2024-12-31

Technical data

Product Family	Valve Connectors
Side 1 Product Sub Family	GDM Legacy
Connector Type	Field Attachable
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	2+PE (PE across cable outlet)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	250 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	16 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Screw
Cable Gland	PG9
Cross Section	0.25 - 1.5 mm²
Suitable Cables	Ø 4.5 - 7 mm
Ambient Temperature (Operation)*	-40°C to +125°C
Protection Degree / IP Rating**	IP65
Design Standard	DIN EN 175301-803-A, ISO 4400
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Material	PA GF
Housing Color	Black
Flammability Class (Housing)	UL 94 HB
Cable Gland Material	PA GF
Cable Gland Gasket	NBR
Cable Gland Color	Black
Attachment Material	Steel, Philips combi slot
Gasket Material	Sold separately

Circuitry

Fastening Torque (Contact Screw)	(50-60) Ncm
Fastening Torque (Cable Gland)	(250-375) Ncm
Fastening Torque (Attachment)	(50-60) Ncm

Approvals

VDE	Yes
SEV	Yes

Safety & Environmental Compliance

RoHS Compliant	Yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Hirschmann / Lumberg Automation mating product
