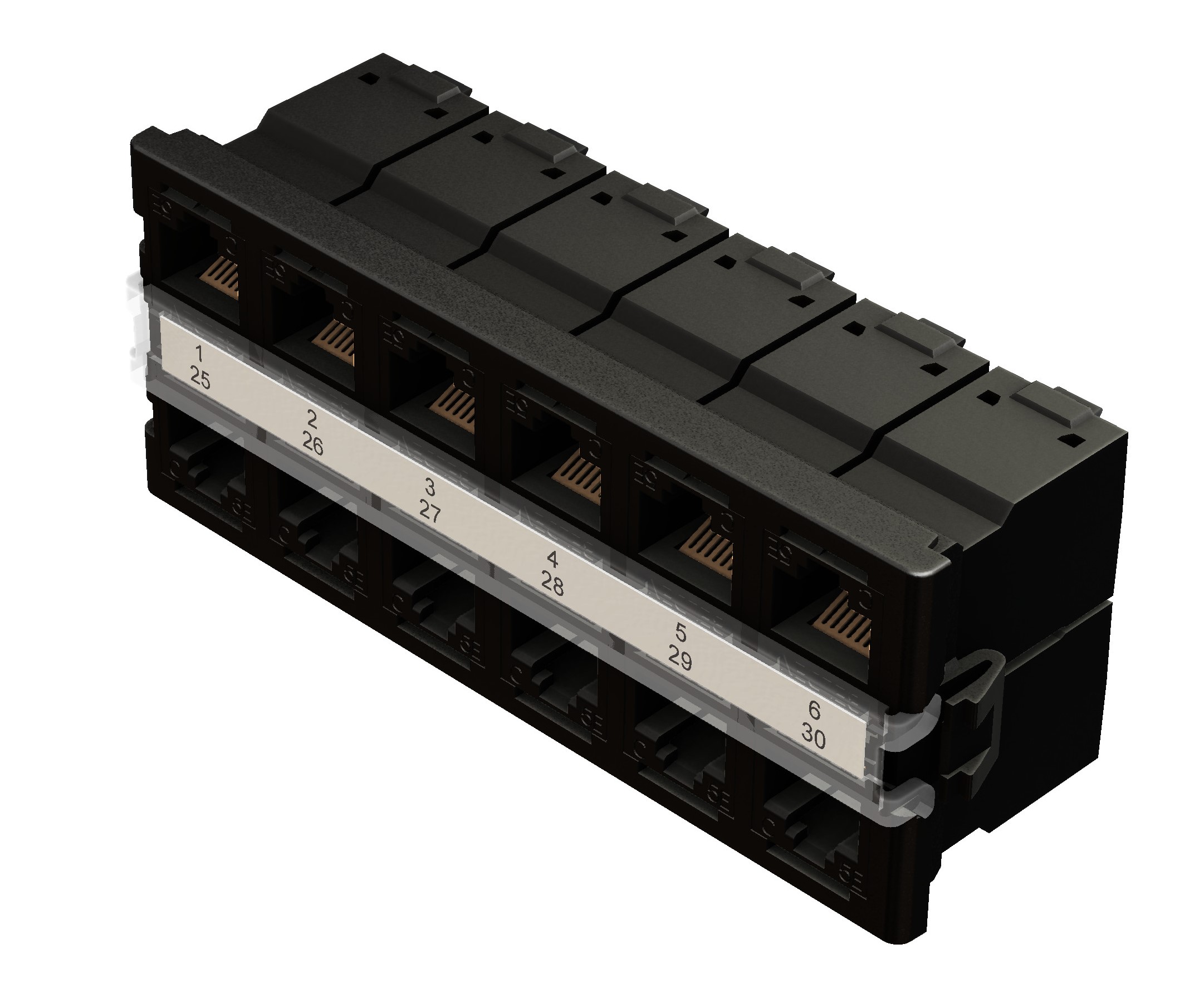

产品编号: RV5PPTM12JBK

REVConnect HD Patch Panel Termination Module, Cat 5e, 12 Port

REVConnect Category 5e Patch Panel Termination Module, 12 Port, Black

  • 上架时间:
    Global
  • 状态:
    有源
RV5PPTM12JBK
  • RV5PPTM12JBK
1 的 1

规格

Expand All

Suitable Applications

REVConnect 1200 System, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Overall Height

1.73

Overall Width

4.33

Depth

1.52

Number of Ports

12 Port

Packaging

Individually packaged in a cardboard box.

Weight

0.353

Materials

Description Material Type
Front Connection Copper Clad Flexible PCB, 50µin Gold-plated Contacts over Nickel RJ45
Rear Connection Copper Alloy, Gold-plated Contacts over Nickel REVConnect
Connector Body PBT Glass Reinforced UL94V-0

Max Capacity

12 Connectors (Preloaded)

Dielectric Strength

1,000 V RMS @ 60 Hz for 1 minute

Current Rating

1.300 A

Insulation Resistance

500 M-Ohm Minimum

Termination Resistance

2.5 mOhm

Installation Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C to +70°C

Operating Temperature Range

-10°C to +60°C

Connector System Compatibility

REVConnect

Tool Compatibility

REVConnect Termination Tool (RVUTT01)

Plug /Jack Compatibility

RJ45

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 Cycles

Termination Rear Connection

Mated Connection

Termination Rear Connection Durability

20 Cycles

Cable/Connector Retention

15 lbs

Connector/Hardware Retention

20 lbs

Plug/Connector Retention

11.250 lbs

UL Rating

UL94V-0

Data Category

Category 5e

TIA/EIA Compliance

Category 5e - TIA 568-C.2

IEEE Compliance

Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)

Other Standards

FCC Part 68, Subpart F, IEC 60603-7

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Safety Listing

c(UL)us Listed

Related Parts

REVConnect Termination Tool, Cat 5e Modular Cords, REVConnect Empty High Density Patch Panels

Included Parts

12 Cat 5e REVConnect High Density Jacks, Black, Preloaded; 12 REVConnect Cable Managers and Caps; 1 Clear Window; 1 Frame; 1 Installation Guide

Notes

For proper installation, refer to Installation Guide PX107031.
