产品编号: 1304A4

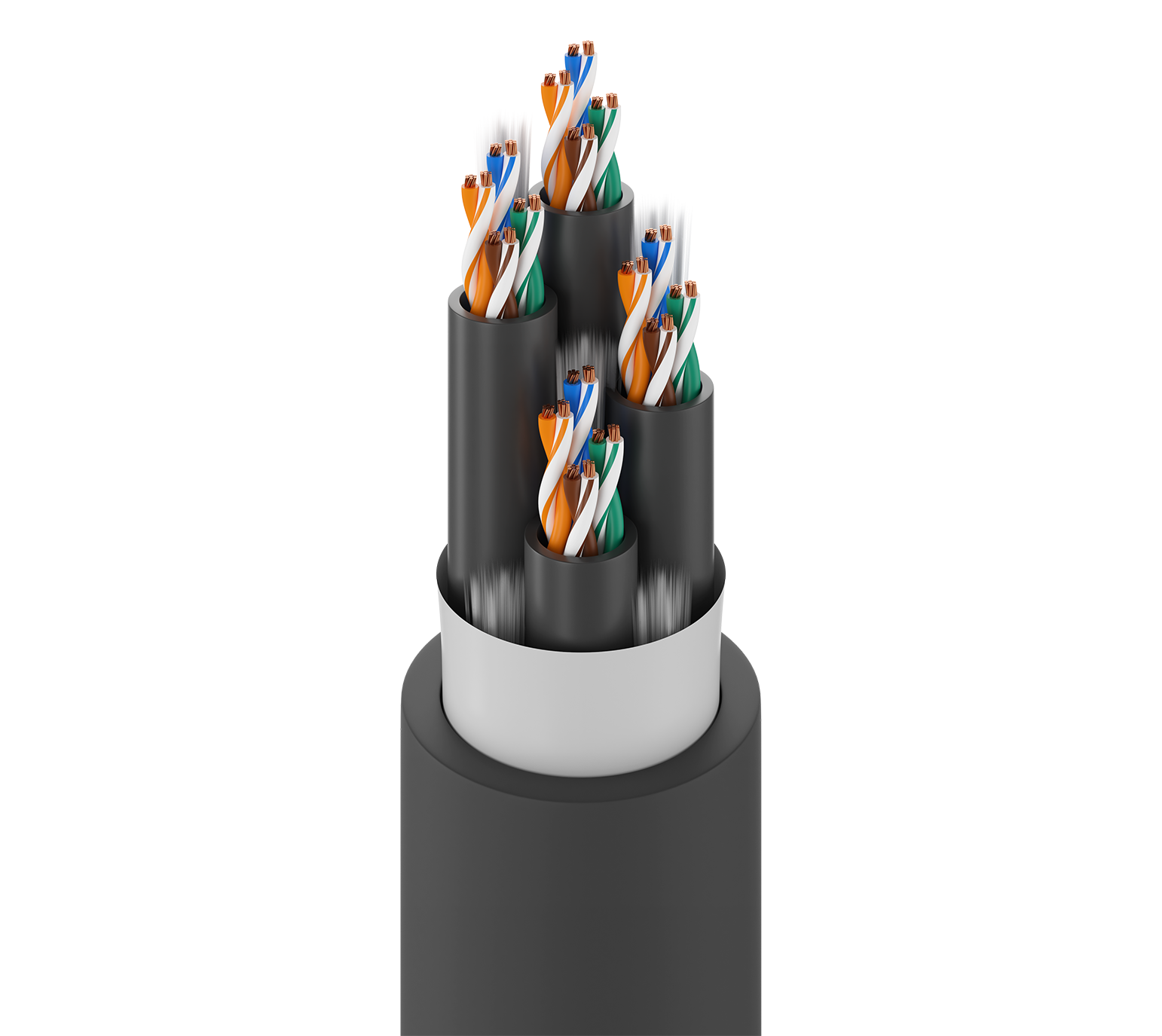

CatSnake® 4-Channel 4 Pr #24 Str BC, U/UTP, Flexible PVC Inner & Outer Jkts

Category 5e, 4 x 4 Pair Cables Bundled, Inner Cables: 4 pair 24 AWG (7x32) Bare Copper, U/UTP, BelFlex® Inner Jackets & Overall Belflex® Jacket

  • 上架时间:
    Global
  • 状态:
    有源
1304A4
  • 1304A4
1 的 1

规格

Expand All

Suitable Applications

Field Deployable Cat 5e Patch, Digital Audio formats such as CobraNet, eSnake, & Ethersound, Live events or studio sound

Conductor

Element Size Stranding Material No. of Pairs
Pair(s) 24 AWG 7x32 BC - Bare Copper 16

Insulation

Element Material Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.043 in (1.1 mm) White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Inner Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.25 in (6.4 mm)

Inner Jacket Table Notes

Four Cat 5e cable each 4pr UTP; Inner Jacket Colors: Black #1, Black #2, Black #3, Black #4

Outer Jacket

Material Material Trade Name Nom. Diameter
PVC - Polyvinyl Chloride Belflex® 0.757 in (19.2 mm)

Overall Cable Diameter (Nominal)

0.757 in (19.2 mm)

Electricals

Element Max. Conductor DCR Max. Capacitance Unbalance
Pair(s) 90 Ohm/km (27 Ohm/1000ft) 66

Delay

Max. Delay Max. Delay Skew Nom. Velocity of Prop. Typical Delay Skew
510 ns/100m 25 ns/100m 70% 15 ns/ft

Voltage

Voltage Rating
(300 V)

Temperature

Operating
-30°C to +75°C

Bend Radius

Stationary Min. Installation Min.
7.6 in (190 mm) 7.6 in (190 mm)

Max. Pull Tension

176 lbs (79.8 kg)

Bulk Cable Weight

210 lbs/1000ft (310 kg/km)

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Burial

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. RJ-45 and Neutrik EtherCon Compatible. Cable passes -40C cold bend.Operating temperatures are subject to length de-rating.

Update and Revision

Revision Number: 0.289 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.289 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color Putup Type Length UPC
1304A4 B59500 Matte Black Reel 500 ft 612825111139
1304A4 B591000 Matte Black Reel 1,000 ft 612825111122
