产品编号: 9921

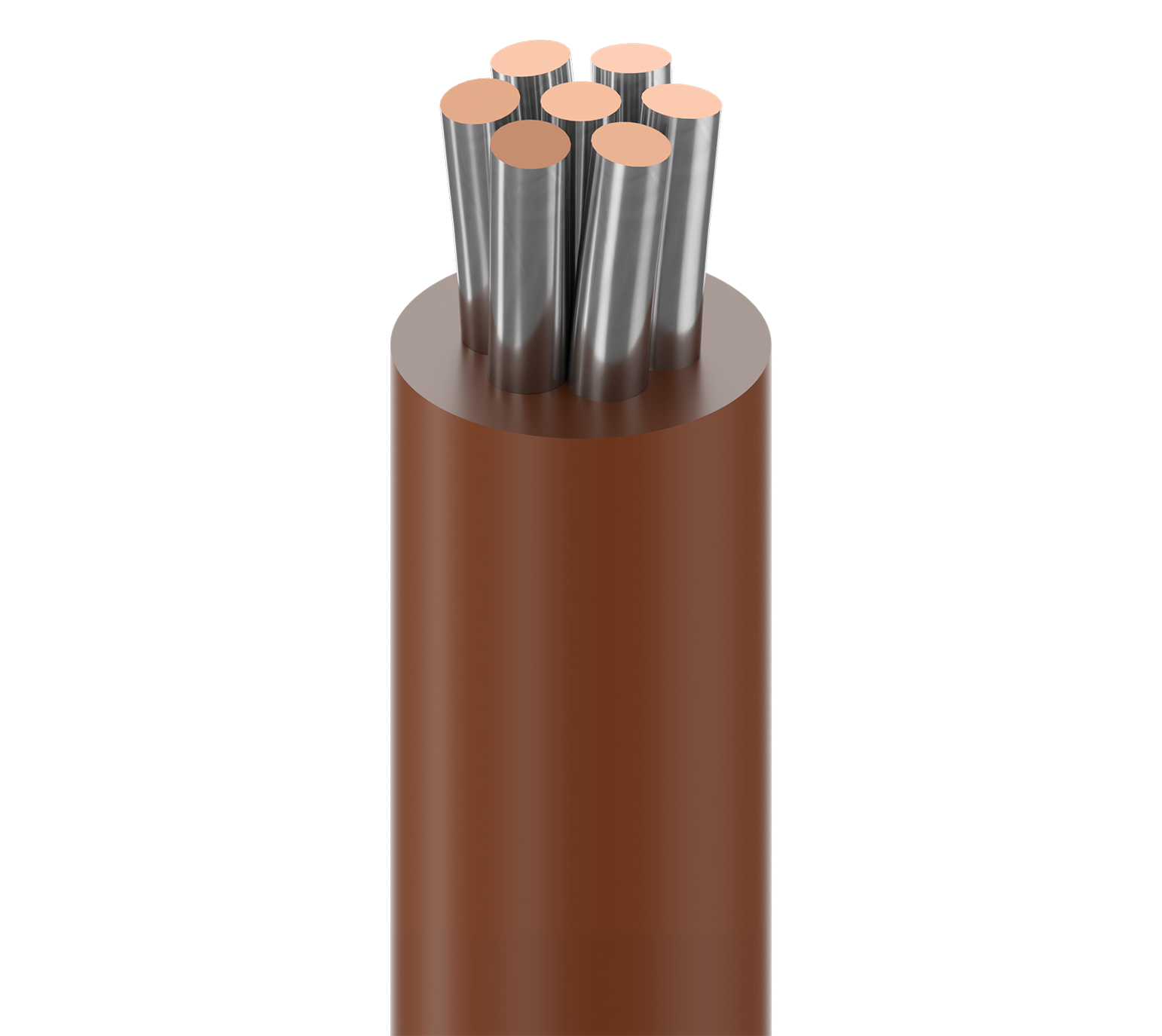

Lead Wire, #22 Str TC, PVC Ins, AWM 1007 AWM 1569

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, PVC Insulation, AWM 1007 AWM 1569 CSA TYPE TR-64 TRSR-64

  • 上架时间:
    Global
  • 状态:
    有源
9921
  • 9921
1 的 1

规格

Expand All

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 1 22 AWG 7x30 TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.062 in (1.6 mm)

Overall Cable Diameter (Nominal)

0.062 in (1.6 mm)

Electricals

Nom. Conductor DCR Max. Current
18.1 Ohm/1000ft Single conductor in free air @ 30ºC: 11 A

Unbalanced Crosstalk

Typical Unbalanced FEXT %
6.2 MHz

High Frequency (Nominal/Typical)

Nom. Insertion Loss (Attenuation)
6.2 dB/100m
6.1 dB/100m

Voltage

UL Voltage Rating
300 V RMS

Temperature

UL Temperature Operating
105°C -20°C To +105°C

Bend Radius

Stationary Min. Installation Min.
0.62 in (16 mm) 0.62 in (16 mm)

Max. Pull Tension

9 lbs (4.1 kg)

Bulk Cable Weight

4 lbs/1000ft

Environmental Suitability

Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1007, AWM 1569

CEC / C(UL) Compliance

TRSR-64

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.512 Revision Date: 09-07-2025

Footnote

P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.512 Revision Date: 09-07-2025

Footnote

P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., C - CRATE REEL PUT-UP.
