Product Number: FI4M012P2

Indoor Plenum OM4 Mini-Distribution 12 Fibers

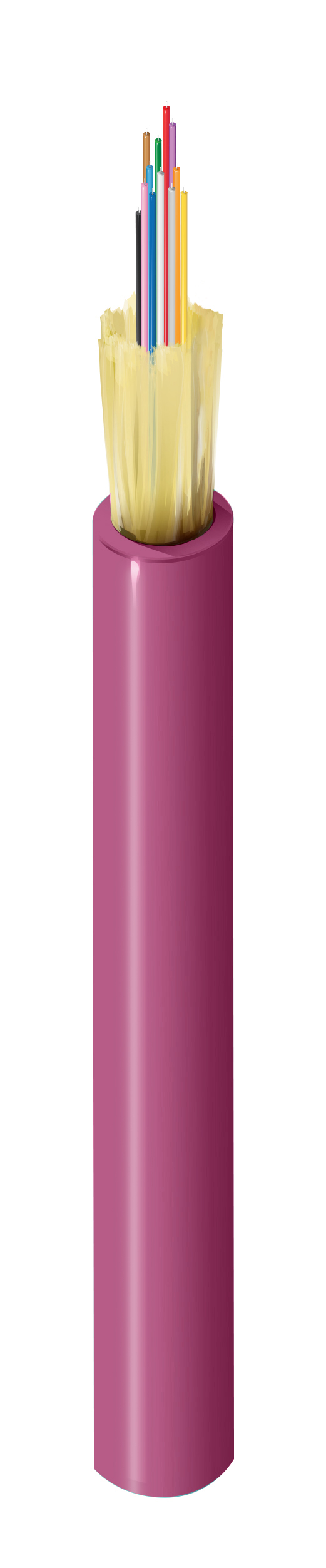

FX Indoor OM4 Mini Distribution 12 Fibers OFNP 3.0 mm Erika Violet Jacket

  • Availability:
    Global
  • Status:
    Active
FI4M012P2
  • FI4M012P2
1 of 1

规格

Expand All

Suitable Applications

Indoor, data center, patching, inside cabinets, workstation equipment connections

Fiber Type

OM4

Fiber Core Diameter

50/125 µm

Fiber Diameter

250 µm

Fiber Count

12

Fiber Color Coding

TIA-598-D

Jacket Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.118 in (3.0 mm)

Outer Jacket Color

Erika Violet

Optical Characteristics

Wavelength 850 nm 1300 nm
Max. Attenuation 3.0 dB/km 1.2 dB/km

Minimum Bend Radius During Installation

20 x Cable OD

Minimum Bend Radius During Operation

10 x Cable OD

Max. Tensile Strength During Installation

220 N (50 lbf)

Max. Tensile Strength During Operation

75 N (17 lbf)

Crush Resistance

35 N/cm

Bulk Cable Weight

5.2 lbs/kft (7.81 kg/km)

Installation Temperature Range

0°C to +60°C

Operating Temperature Range

0°C to +70°C

Storage Temperature Range

-40°C to +70°C

Environmental Suitability

Indoor

Sustainability

CA Prop 65

NEC / UL Compliance

OFNP

CEC / C(UL) Compliance

FT6

ICEA Compliance

S-83-596

Telcordia Compliance

GR-409

Update and Revision

Revision Number: 0.100 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.100 Revision Date: 09-07-2025


Report An Error

零件编号

Item # Color Putup Type UPC
FI4M012P2 Erika Violet Reel 612825288596
