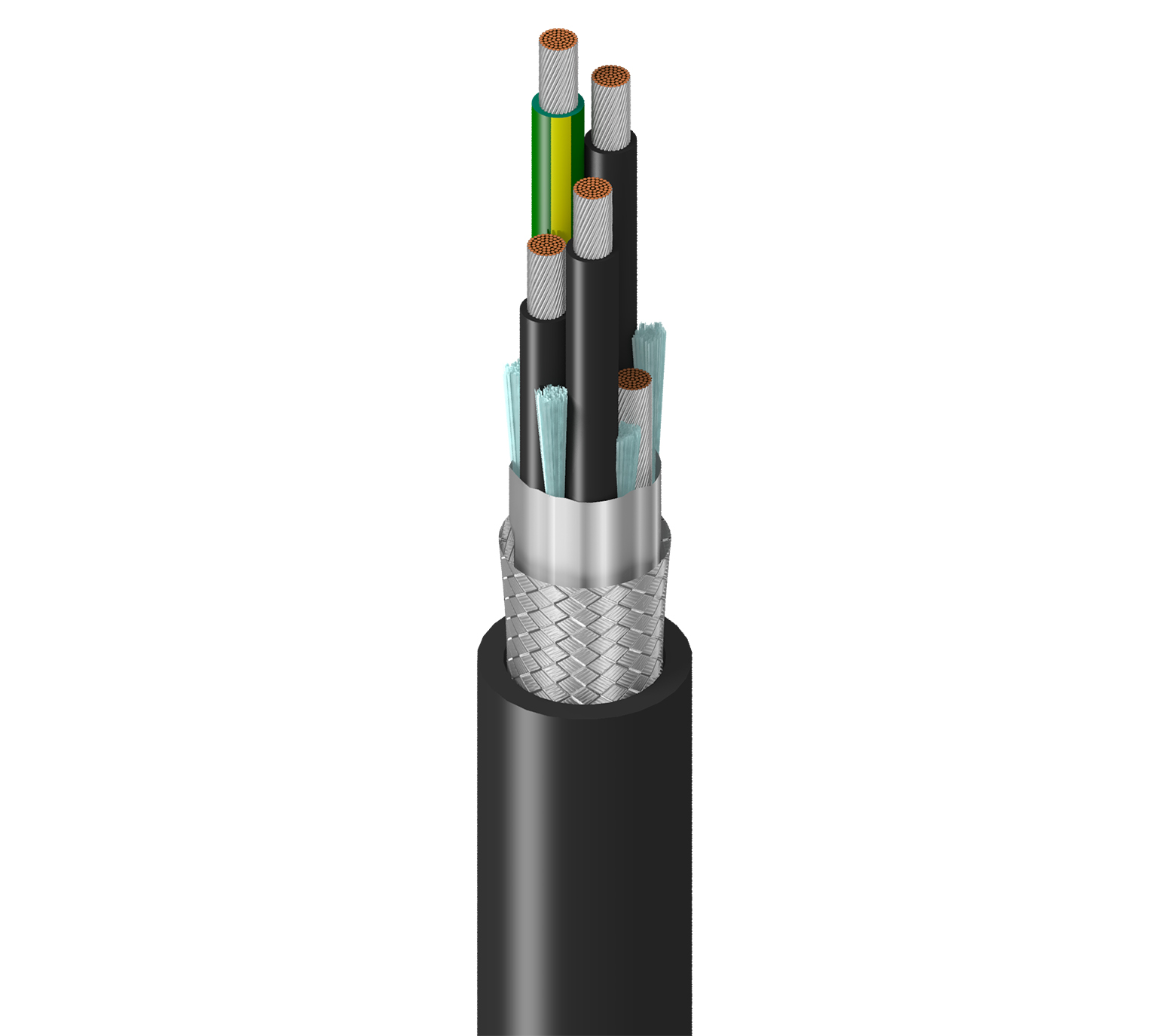

Flex Cable - 29500F

Belden 300% Ground Extra Flexible VFD, 3 Conductor 16AWG (65x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/16AWG Tinned Copper Drain, Black TPE Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR

上架时间:

Global
状态:

有源

规格
零件编号
资源

规格

Expand All

信息

Put-Up Type	Reel

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	16 AWG	65x34	TC - Tinned Copper
Ground Wire	1	16 AWG	65x34	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLPO - Crosslink Polyolefin	0.046 in (1.2 mm)	0.151 in (3.84 mm)	ICEA Chart M4
Ground Wire	PVC - Polyvinyl Chloride	0.046 in (1.2 mm)	0.151 in (3.84 mm)	Green/Yellow Stripe

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Tri-Laminate (Alum+Poly+Alum)	100%	16 AWG (65x34) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	Nom. Thickness	Nom. Diameter	Ripcord
TPE - Thermoplastic Elastomer	0.063 in (1.6 mm)	0.528 in (13.4 mm)	Yes

Overall Cable Diameter (Nominal)	0.528 in (13.4 mm)

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Inductance	Nom. Velocity of Prop.	Max. Current
Conductor(s)	3.941 Ohm/1000ft	54 pF/ft (180 pF/m)	97 pF/ft (320 pF/m)	44 Ohm	0.23 µH/ft (0.75 µH/m)	55%	18 Amps per Conductor at 30ºC
	4.45 Ohm/1000ft (14.6 Ohm/km)						14.4 Amps per Conductor at 30ºC (per NEC)

Nom Outer Shield DCR@Cond DCR1-cnv	1.54 Ohm/1000ft (5.05 Ohm/km)

Voltage

UL Voltage Rating
1000 V (TC-ER, WTTC, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC)

Mechanical Characteristics

Temperature

UL Temperature	Operating
90°C Dry, 90°C Wet	-40°C To +90°C

Bend Radius

Stationary Min.	Installation Min.
6.3 in (160 mm)	6.3 in (160 mm)

Max. Pull Tension	243 lbs (110 kg)
Bulk Cable Weight	171 lbs/1000ft

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 UL Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, WTTC, UL Flexible Motor Supply Cable
CEC / C(UL) Compliance	CIC, TC
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
