产品编号: 538AFJ

访问控制，16c（#18-3pr，#16-4c, #18-6c), 屏蔽，外护套，CMR

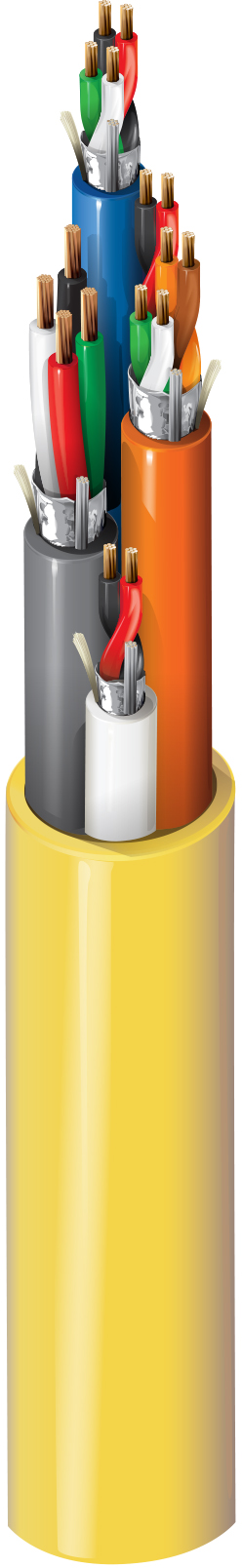

门禁控制电缆，Riser-CMR，3-18 AWG 对，4-16 AWG 导体，4-18 AWG 导体，2-18 AWG 导体，所有导体均为绞合裸铜，带聚烯烃绝缘，每根电缆均具有整体 Beldfoil® 屏蔽和 PVC 护套，整体 PVC 护套

  • 上架时间:
    全球
  • 状态:
    有源
538AFJ
  • 538AFJ
1 的 1

规格

Expand All

适合应用

门禁控制、安全系统、电力限制控制

导体

Element Description Element No. of Elements Size Stranding Material
Card Reader Pair(s) 3 18 AWG 7x26 BC - Bare Copper
Door Contact Conductor(s) 2 18 AWG 7x26 BC - Bare Copper
REX/Spare Conductor(s) 4 18 AWG 7x26 BC - Bare Copper
Lock Power Conductor(s) 4 16 AWG 19x29 BC - Bare Copper

绝缘

Element Description Element Material Nom. Insulation Diameter Color Code
Card Reader Pair(s) PP - Polypropylene Black & Red, White & Green, Brown & Orange
Door Contact Conductor(s) PP - Polypropylene Black, Red
REX/Spare Conductor(s) PP - Polypropylene Black, Red, White, Green
Lock Power Conductor(s) PP - Polypropylene 0.073 in (1.9 mm)

内屏蔽

Element Description Element Shield Type Material Coverage Drainwire Type
Card Reader Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Door Contact Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
REX/Spare Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Lock Power Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

内护套

Element Description Element Material Nom. Diameter Ripcord Color
Card Reader Pair(s) PVC - Polyvinyl Chloride 0.272 in (6.91 mm) Yes Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.168 in (4.27 mm) Yes White
REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.194 in (4.93 mm) Yes Blue
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.220 in (5.59 mm) Yes Gray

外层护套

Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.586 in (14.9 mm) Yes

线缆外廓直径（标称）

0.586 in (14.9 mm)

电气设备

Element Description Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current
Card Reader Pair(s) 6.6 Ohm/1000ft (22 Ohm/km) 13.1 Ohm/1000ft (43.0 Ohm/km) 29 pF/ft (95 pF/m) 52.25 pF/ft (171.4 pF/m) 4 Amps per Conductor at 25ºC
Door Contact Conductor(s) 6.6 Ohm/1000ft (22 Ohm/km) 16.7 Ohm/1000ft (54.8 Ohm/km) 52.5 pF/ft (172 pF/m) 94.5 pF/ft (310 pF/m) 4 Amps per Conductor at 25ºC
REX/Spare Conductor(s) 6.6 Ohm/1000ft (22 Ohm/km) 15.9 Ohm/1000ft (52.2 Ohm/km) 29 pF/ft (95 pF/m) 52.25 pF/ft (171.4 pF/m) 4 Amps per Conductor at 25ºC
Lock Power Conductor(s) 4 Ohm/1000ft (13 Ohm/km) 15.9 Ohm/1000ft (52.2 Ohm/km) 30.5 pF/ft (100 pF/m) 55 pF/ft (180 pF/m) 5 Amps per Conductor at 25ºC

电压

UL Voltage Rating
300 V (UL CMR)

温度

Operating
-5°C to +75°C

最大拉伸张力

253 lb (115 kg)

线缆毛重

181 磅/1000 英尺（269 千克/公里）

环境适应性

室内-立管，室内

阻燃性/遇火反应

UL1666 立管

NEC/UL合规性

《公路运输条例》第 800 条

CEC / C（UL）合规性

CMR

欧洲指令合规性

欧盟 CE 标志、欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

APAC合规性

中国 RoHS II (GB/T 26572-2011)

静压室编号

638AFJ

更新和修订

修订编号：0.114 修订日期：05-31-2024

更新和修订

修订编号：0.114 修订日期：05-31-2024
