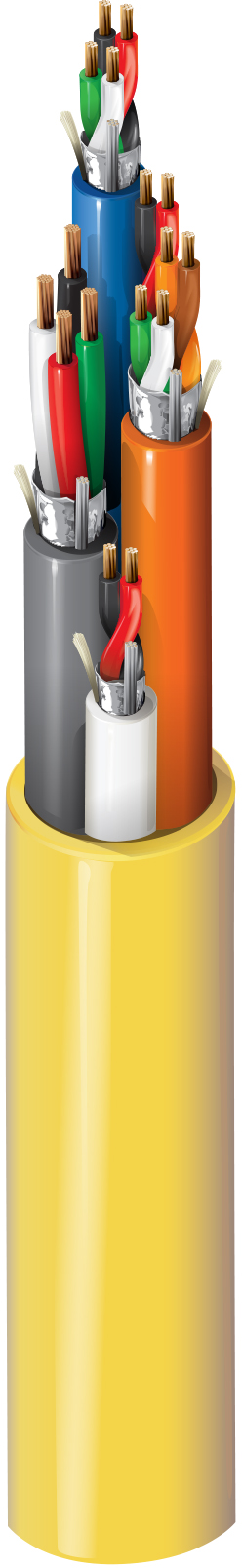

产品编号: 558AFJ

访问控制，16c（#22-3pr，#18-4c, #22-6c), 屏蔽，外护套，CMR

门禁控制电缆，Riser-CMR，3-22 AWG 对，4-18 AWG 导体，4-22 AWG 导体，2-22 AWG 导体，所有导体均为绞合裸铜，带聚丙烯绝缘，每根电缆均具有整体 Beldfoil® 屏蔽和 PVC 护套，整体 PVC 护套

  • 上架时间:
    全球
  • 状态:
    有源
558AFJ
  • 558AFJ
1 的 1

规格

Expand All

适合应用

门禁控制、安全系统、电力限制控制

导体

Element Description Element No. of Elements Size Stranding Material
Card Reader Pair(s) 3 22 AWG 7x30 BC - Bare Copper
Door Contact Conductor(s) 2 22 AWG 7x30 BC - Bare Copper
REX/Spare Conductor(s) 4 22 AWG 7x30 BC - Bare Copper
Lock Power Conductor(s) 4 18 AWG 7x26 BC - Bare Copper

绝缘

Element Description Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Card Reader Pair(s) PP - Polypropylene 0.009 in (0.23 mm) 0.045 in (1.1 mm) Black & Red, White & Green, Brown & Orange
Door Contact Conductor(s) PP - Polypropylene 0.008 in (0.20 mm) 0.045 in (1.1 mm) Black, Red
REX/Spare Conductor(s) PP - Polypropylene 0.008 in (0.20 mm) 0.045 in (1.1 mm) Black, Red, White, Green
Lock Power Conductor(s) PP - Polypropylene 0.009 in (0.23 mm) 0.062 in (1.6 mm)

内屏蔽

Element Description Element Shield Type Material Coverage Drainwire Type
Card Reader Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Door Contact Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
REX/Spare Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Lock Power Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

内护套

Element Description Element Material Nom. Thickness Nom. Diameter Ripcord Color
Card Reader Pair(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.211 in (5.36 mm) Yes Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.132 in (3.35 mm) Yes White
REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.194 in (4.93 mm) Yes Blue
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.194 in (4.93 mm) Yes Gray

外层护套

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.492 in (12.5 mm) Yes

线缆外廓直径（标称）

0.492 in (12.5 mm)

电气设备

Element Description Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current
Card Reader Pair(s) 16.9 Ohm/1000ft 13.9 Ohm/1000ft (45.6 Ohm/km) 24 pF/ft (79 pF/m) 43.25 pF/ft (141.9 pF/m) 4.2 Amps per Conductor @ 25°C
Door Contact Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 16.1 Ohm/1000ft (52.8 Ohm/km) 34.5 pF/ft (113 pF/m) 62 pF/ft (200 pF/m) 6 Amps per Conductor at 25ºC
REX/Spare Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 7.2 Ohm/1000ft (24 Ohm/km) 22.5 pF/ft (73.8 pF/m) 40.5 pF/ft (133 pF/m) 10.5 Amps per Conductor at 25ºC
Lock Power Conductor(s) 6.5 Ohm/1000ft (21 Ohm/km) 7.2 Ohm/1000ft (24 Ohm/km) 27 pF/ft (89 pF/m) 48.5 pF/ft (159 pF/m) 11.2 Amps per Conductor at 25ºC

电压

UL Voltage Rating
300 V

温度

UL Temperature Operating
75°C 0°C to +75°C

弯曲半径

Stationary Min. Installation Min.
4.9 in (120 mm) 4.9 in (120 mm)

最大拉伸张力

220 lb (100 kg)

线缆毛重

113 磅/1000 英尺

环境适应性

室内-立管，室内

可持续发展

产品镜头……，提供环境产品声明 (EPD)

阻燃性/遇火反应

UL 1666 立管，IEC 60332-1-2

CPR合规性

CPR Euroclass：Eca

NEC/UL合规性

《公路运输条例》第 800 条

CEC / C（UL）合规性

CMR

欧洲指令合规性

欧盟 CE 标志、欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

英国监管合规性

UKCA标识

APAC合规性

中国 RoHS II (GB/T 26572-2011)

静压室编号

658AFJ

更新和修订

修订编号：0.492 修订日期：09-07-2025

脚注

C——采用木线盘收线。

更新和修订

修订编号：0.492 修订日期：09-07-2025

脚注

C——采用木线盘收线。

Report An Error

零件编号

货号 颜色 收起类型 长度 UPC 脚注
558AFJ 004A400 黄色 盒内线盘 400 ft 612825428732
558AFJ 0041000 黄色 线盘 1,000 ft 612825164470 C
