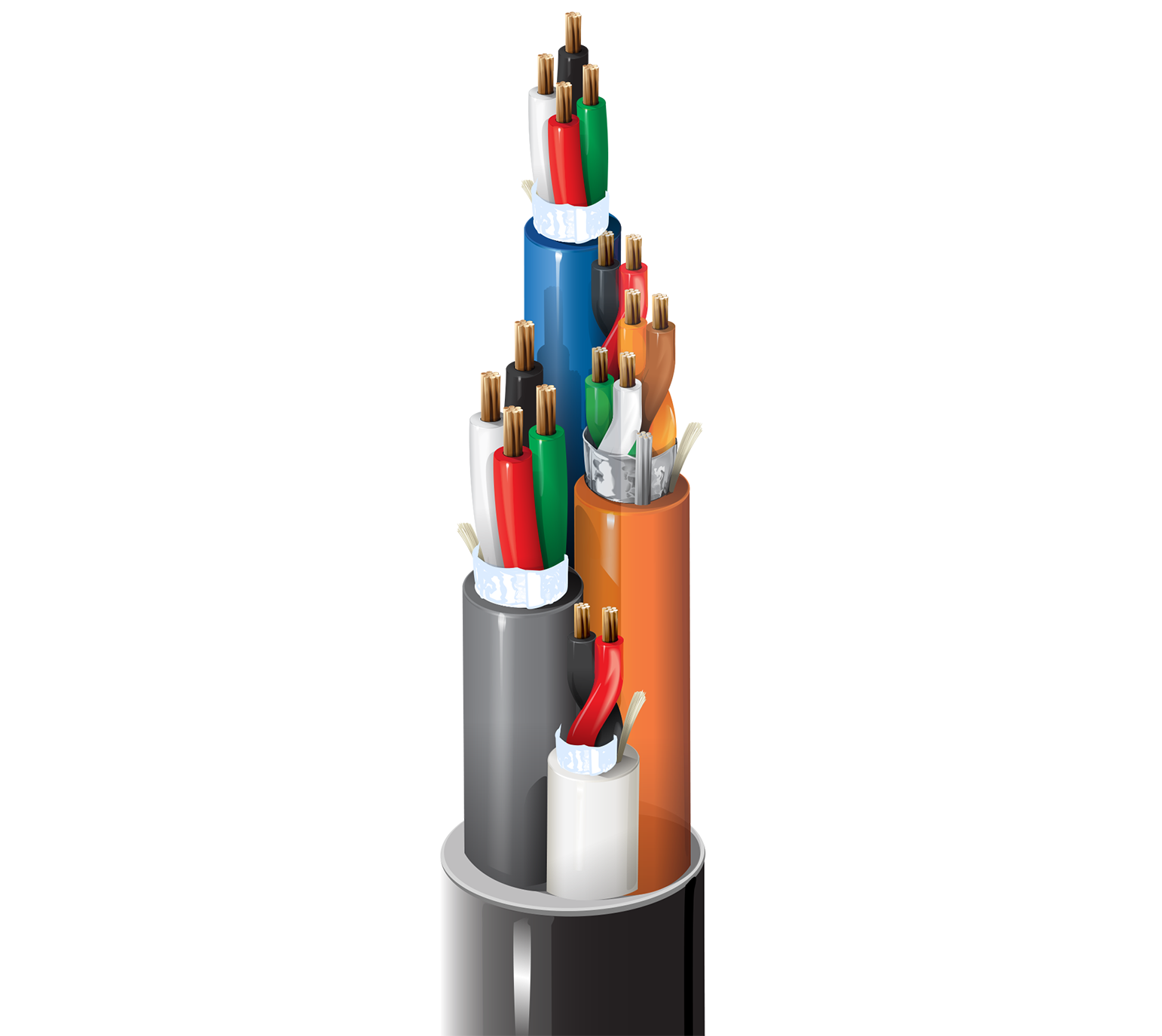

产品编号: 558AM1

室内/室外门禁控制CM级复合材料

门禁控制，16c（#22-6C、18-4c、#22-6c），仅读卡器对屏蔽，室内/室外 CM

  • 上架时间:
    全球
  • 状态:
    有源
558AM1
  • 558AM1
1 的 1

规格

Expand All

适合应用

室内/室外：门禁控制、安全系统、电力限制控制

导体

Element Description Element No. of Conductors Size Stranding Material
Card Reader Conductor(s) 6 22 AWG 7x30 BC - Bare Copper
Door Contact Conductor(s) 2 22 AWG 7x30 BC - Bare Copper
REX/Spare Conductor(s) 4 22 AWG 7x30 BC - Bare Copper
Lock Power Conductor(s) 4 18 AWG 7x26 BC - Bare Copper

绝缘

Element Description Element Material Nom. Thickness Color Code
Card Reader Conductor(s) PVC - Polyvinyl Chloride .010 in (0.25 mm) Black, Red, White, Green, Brown, Blue
Door Contact Conductor(s) PVC - Polyvinyl Chloride .010 in (0.25 mm) Black, Red
REX/Spare Conductor(s) PVC - Polyvinyl Chloride .010 in (0.25 mm) Black, Red, White, Green
Lock Power Conductor(s) PVC - Polyvinyl Chloride .012 in (0.30 mm) Black, Red, White, Green

内屏蔽

Element Description Element Shield Type Material Coverage Drainwire Type
Card Reader Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Door Contact Conductor(s) No Shield
REX/Spare Conductor(s) No Shield
Lock Power Conductor(s) No Shield

隔水

隔水胶带

内护套

Element Description Element Separator Material Nom. Thickness Nom. Diameter Ripcord Color
Card Reader Conductor(s) Waterblocking Tape PVC - Polyvinyl Chloride .025 in (0.64 mm) .226 in (5.74 mm) Yes Orange
Door Contact Conductor(s) Waterblocking Tape PVC - Polyvinyl Chloride .025 in (0.64 mm) .168 in (4.27 mm) Yes White
REX/Spare Conductor(s) Waterblocking Tape PVC - Polyvinyl Chloride .025 in (0.64 mm) .187 in (4.75 mm) Yes Blue
Lock Power Conductor(s) Waterblocking Tape PVC - Polyvinyl Chloride .025 in (0.64 mm) .233 in (5.92 mm) Yes Gray

外层护套

Material Nom. Diameter
PVC - Polyvinyl Chloride .565 in (14.4 mm)

线缆外廓直径（标称）

.565 英寸（14.4 毫米）

电气设备

Element Description Element Max. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield)
Card Reader Conductor(s) 16.3 Ohm/1000ft (53.5 Ohm/km) 55 pF/ft (180 pF/m) 99 pF/ft (320 pF/m)
Door Contact Conductor(s) 16.3 Ohm/1000ft (53.5 Ohm/km) 27 pF/ft (89 pF/m)
REX/Spare Conductor(s) 16.3 Ohm/1000ft (53.5 Ohm/km) 27 pF/ft (89 pF/m)
Lock Power Conductor(s) 6.5 Ohm/1000ft (21 Ohm/km) 34 pF/ft (110 pF/m)

电压

UL Voltage Rating
300 V

温度

UL Temperature Operating
60°C -20°C to +60°C

弯曲半径

Stationary Min. Installation Min.
5.6 in (140 mm) 5.6 in (140 mm)

环境适应性

室内/室外<多分离器/>室内额定（非立管或静压箱）

阻燃性/遇火反应

UL 1685

CPR合规性

CPR Euroclass：Eca

NEC/UL合规性

Article 800, CM

欧洲指令合规性

欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

APAC合规性

中国 RoHS II (GB/T 26572-2011)

静压室编号

658AMJ

更新和修订

修订编号：0.27 修订日期：03-24-2024

更新和修订

修订编号：0.27 修订日期：03-24-2024
