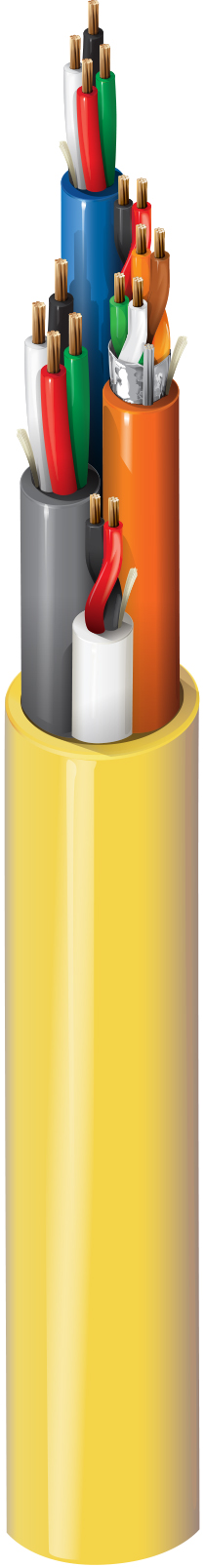

产品编号: 558AMJ

门禁控制，16c（#22-3pr，#18-4c, #22-4c, #22-2c), 仅限读卡器对屏蔽，外壳，CMR）

门禁控制电缆，Riser-CMR，3-22 AWG 对，4-18 AWG 导体，4-22 AWG 导体，2-22 AWG 导体，所有导体均为绞合裸铜，带聚烯烃绝缘，仅读卡器对具有整体 Beldfoil® 屏蔽和 PVC 护套，整体 PVC 护套

  • 上架时间:
    全球
  • 状态:
    有源
558AMJ
  • 558AMJ
1 的 1

规格

Expand All

适合应用

门禁控制、安全系统、电力限制控制

导体

Element Description Element No. of Elements Size Stranding Material
Card Reader Pair(s) 3 22 AWG 7x30 BC - Bare Copper
Door Contact Conductor(s) 2 22 AWG 7x30 BC - Bare Copper
REX/Spare Conductor(s) 4 22 AWG 7x30 BC - Bare Copper
Lock Power Conductor(s) 4 18 AWG 7x26 BC - Bare Copper

绝缘

Element Description Element Material Color Code
Card Reader Pair(s) PP - Polypropylene Black & Red, White & Green, Brown & Orange
Door Contact Conductor(s) PP - Polypropylene Black, Red
REX/Spare Conductor(s) PP - Polypropylene Black, Red, White, Green
Lock Power Conductor(s) PP - Polypropylene

内屏蔽

Element Description Element Shield Type Material Coverage Drainwire Type
Card Reader Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Door Contact Conductor(s) No Shield
REX/Spare Conductor(s) No Shield
Lock Power Conductor(s) No Shield

内护套

Element Description Element Material Nom. Diameter Ripcord Color
Card Reader Pair(s) PVC - Polyvinyl Chloride 0.211 in (5.36 mm) Yes Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.123 in (3.12 mm) Yes White
REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.141 in (3.58 mm) Yes Blue
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.184 in (4.67 mm) Yes Gray

外层护套

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.469 in (11.9 mm)

线缆外廓直径（标称）

0.469 in (11.9 mm)

电气设备

Element Description Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current
Card Reader Pair(s) 16.3 Ohm/1000ft (53.5 Ohm/km) 14.9 Ohm/1000ft (48.9 Ohm/km) 24 pF/ft (79 pF/m) 43.25 pF/ft (141.9 pF/m) 2 Amps per Conductor at 25ºC
Door Contact Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 17 pF/ft (56 pF/m) 2.2 Amps per Conductor at 25ºC
REX/Spare Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 17 pF/ft (56 pF/m) 2.2 Amps per Conductor at 25ºC
Lock Power Conductor(s) 6.5 Ohm/1000ft (21 Ohm/km) 22 pF/ft (72 pF/m) 4 Amps per Conductor at 25ºC

电压

UL Voltage Rating
300 V (UL CMR)

温度

Operating
-5°C to +75°C

最大拉伸张力

200 lb (91 kg)

线缆毛重

104 磅/1000 英尺（155 千克/公里）

环境适应性

室内-立管，室内

阻燃性/遇火反应

UL1666 立管

NEC/UL合规性

《公路运输条例》第 800 条

CEC / C（UL）合规性

CMR

欧洲指令合规性

欧盟 CE 标志、欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

APAC合规性

中国 RoHS II (GB/T 26572-2011)

静压室编号

658AMJ

更新和修订

修订号：0.415 修订日期：11-07-2025

更新和修订

修订号：0.415 修订日期：11-07-2025
