产品编号: 638AFJ

访问控制，16c（#18-3pr，#16-4c, #18-6c), 屏蔽，外护套，CMP

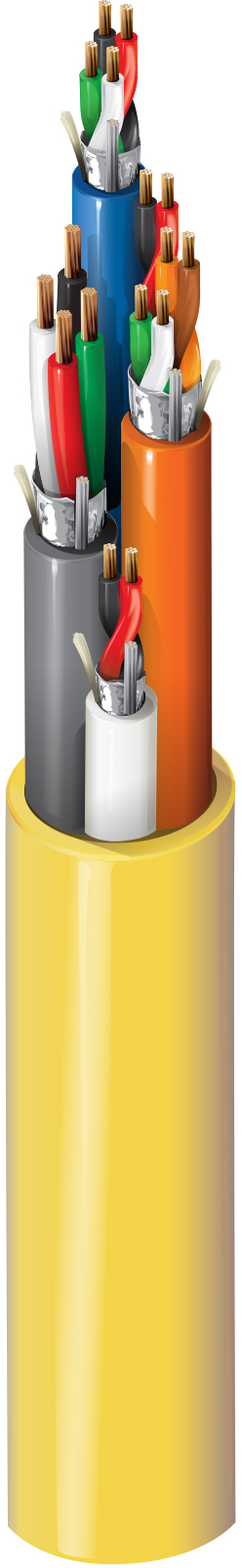

门禁控制电缆，Plenum-CMP，3-18 AWG 对，4-16 AWG 导体，4-18 AWG 导体，2-18 AWG 导体，所有导体均为绞合裸铜，带 Flamarrest® 绝缘层，每根电缆均具有整体 Beldfoil® 屏蔽和 Flamarrest® 护套，整体 Flamarrest® 护套

  • 上架时间:
    全球
  • 状态:
    有源
638AFJ
  • 638AFJ
1 的 1

规格

Expand All

适合应用

门禁控制、安全系统、电力限制控制

导体

Element Description Element No. of Elements Size Stranding Material
Card Reader Pair(s) 3 18 AWG 7x26 BC - Bare Copper
Door Contact Conductor(s) 2 18 AWG 7x26 BC - Bare Copper
REX/Spare Conductor(s) 4 18 AWG 7x26 BC - Bare Copper
Lock Power Conductor(s) 4 16 AWG 19x29 BC - Bare Copper

绝缘

Element Description Element Material Nom. Insulation Diameter Color Code
Card Reader Pair(s) PVC - Polyvinyl Chloride Black & Red, White & Green, Brown & Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride Black, Red
REX/Spare Conductor(s) PVC - Polyvinyl Chloride Black, Red, White, Green
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.075 in (1.9 mm)

内屏蔽

Element Description Element Shield Type Material Coverage Drainwire Type
Card Reader Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Door Contact Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
REX/Spare Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Lock Power Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

内护套

Element Description Element Material Nom. Diameter Ripcord Color
Card Reader Pair(s) PVC - Polyvinyl Chloride 0.288 in (7.32 mm) Yes Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.168 in (4.27 mm) Yes White
REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.197 in (5.00 mm) Yes Blue
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.224 in (5.69 mm) Yes Gray

外层护套

Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.582 in (14.8 mm) Yes

线缆外廓直径（标称）

0.582 in (14.8 mm)

电气设备

Element Description Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current
Card Reader Pair(s) 6.6 Ohm/1000ft (22 Ohm/km) 13.1 Ohm/1000ft (43.0 Ohm/km) 40 pF/ft (130 pF/m) 72 pF/ft (240 pF/m) 4 Amps per Conductor at 25ºC
Door Contact Conductor(s) 6.6 Ohm/1000ft (22 Ohm/km) 16.7 Ohm/1000ft (54.8 Ohm/km) 70 pF/ft (230 pF/m) 126 pF/ft (413 pF/m) 4 Amps per Conductor at 25ºC
REX/Spare Conductor(s) 6.6 Ohm/1000ft (22 Ohm/km) 15.9 Ohm/1000ft (52.2 Ohm/km) 42 pF/ft (140 pF/m) 76 pF/ft (250 pF/m) 4 Amps per Conductor at 25ºC
Lock Power Conductor(s) 4 Ohm/1000ft (13 Ohm/km) 15.9 Ohm/1000ft (52.2 Ohm/km) 45 pF/ft (150 pF/m) 81 pF/ft (270 pF/m) 5 Amps per Conductor at 25ºC

电压

UL Voltage Rating
300 V (UL CMP)

温度

Operating
0°C to +75°C

最大拉伸张力

253 lb (115 kg)

线缆毛重

181 磅/1000 英尺（269 千克/公里）

环境适应性

室内 - 静压室，室内

阻燃性/遇火反应

NFPA 262

NEC/UL合规性

《民事诉讼法》第 800 条

CEC / C（UL）合规性

CMP

欧洲指令合规性

欧盟 CE 标志、欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

APAC合规性

中国 RoHS II (GB/T 26572-2011)

非静压室编号

538AFJ

更新和修订

修订编号：0.108 修订日期：05-31-2024
