产品编号: 658AFJ

访问控制，16c（#22-3pr，#18-4c, #22-6c), 屏蔽，外护套，CMP

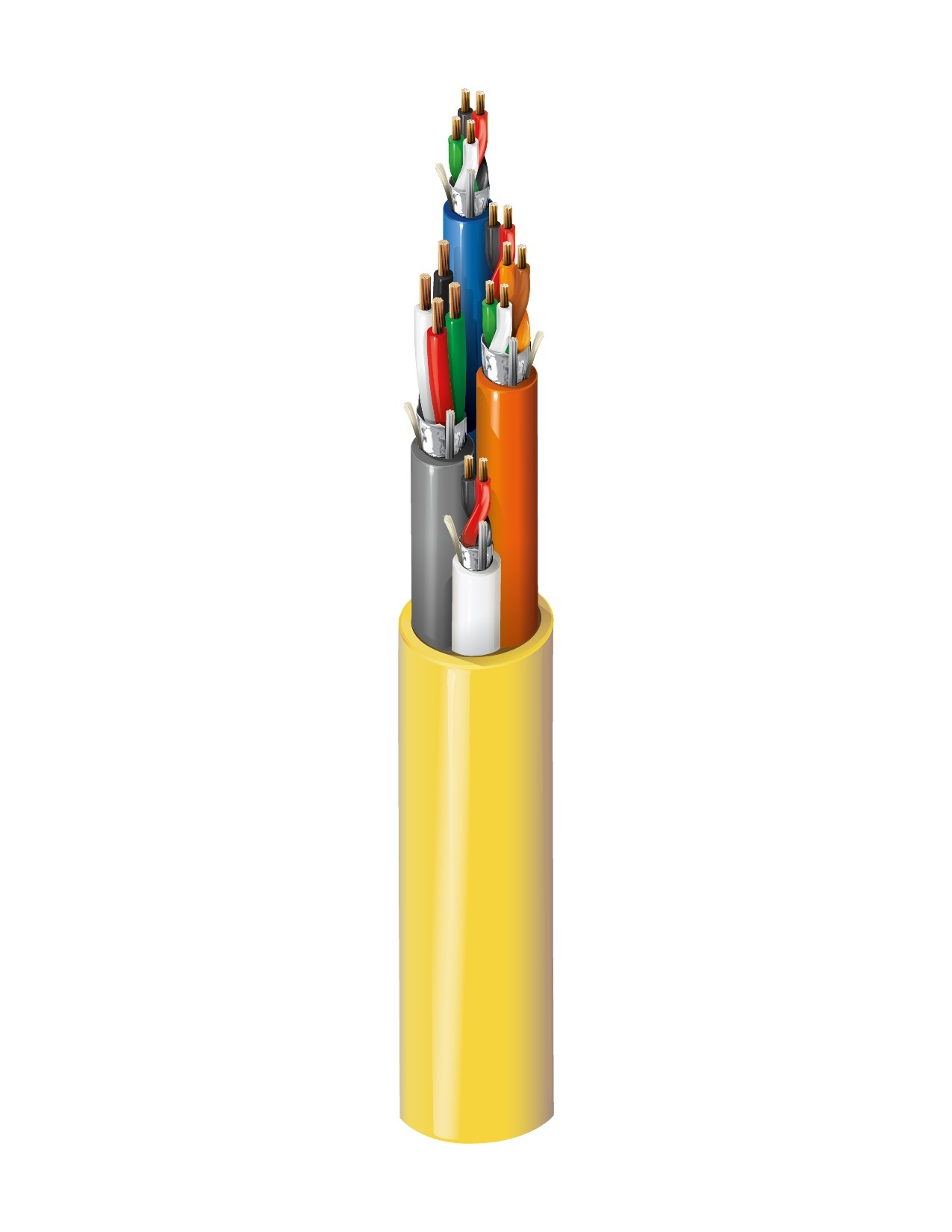

门禁控制电缆，Plenum-CMP，3-22 AWG 对，4-18 AWG 导体，4-22 AWG 导体，2-22 AWG 导体，所有导体均采用 Flamarrest® 绝缘的绞合裸铜，每根电缆均具有整体 Beldfoil® 屏蔽和 Flamarrest® 护套，整体 Flamarrest® 护套

  • 上架时间:
    全球
  • 状态:
    有源
658AFJ
  • 658AFJ
1 的 1

规格

Expand All

适合应用

门禁控制、安全系统、电力限制控制

导体

Element Description Element No. of Elements Size Stranding Material
Card Reader Pair(s) 3 22 AWG 7x30 BC - Bare Copper
Door Contact Conductor(s) 2 22 AWG 7x30 BC - Bare Copper
REX/Spare Conductor(s) 4 22 AWG 7x30 BC - Bare Copper
Lock Power Conductor(s) 4 18 AWG 7x26 BC - Bare Copper

绝缘

Element Description Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Card Reader Pair(s) PVC - Polyvinyl Chloride 0.009 in (0.23 mm) 0.047 in (1.2 mm) Black & Red, White & Green, Brown & Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.009 in (0.23 mm) 0.047 in (1.2 mm) Black, Red
REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.009 in (0.23 mm) 0.047 in (1.2 mm) Black, Red, White, Green
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.010 in (0.25 mm) 0.066 in (1.7 mm)

内屏蔽

Element Description Element Shield Type Material Coverage Drainwire Type
Card Reader Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Door Contact Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
REX/Spare Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Lock Power Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

内护套

Element Description Element Material Nom. Thickness Nom. Diameter Ripcord Color
Card Reader Pair(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.216 in (5.49 mm) Yes Orange
Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.128 in (3.25 mm) Yes White
REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.193 in (4.90 mm) Yes Blue
Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.193 in (4.90 mm) Yes Gray

外层护套

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.463 in (11.8 mm) Yes

线缆外廓直径（标称）

0.463 in (11.8 mm)

电气设备

Element Description Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current
Card Reader Pair(s) 16.3 Ohm/1000ft 16.19 Ohm/1000ft (53.12 Ohm/km) 33 pF/ft (110 pF/m) 60 pF/ft (200 pF/m) 2.2 Amps per Conductor at 25ºC
Door Contact Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 18.38 Ohm/1000ft (60.30 Ohm/km) 55 pF/ft (180 pF/m) 99 pF/ft (320 pF/m) 2.2 Amps per Conductor at 25ºC
REX/Spare Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 19.44 Ohm/1000ft (63.78 Ohm/km) 33 pF/ft (110 pF/m) 59 pF/ft (190 pF/m) 2.2 Amps per Conductor at 25ºC
Lock Power Conductor(s) 6.5 Ohm/1000ft (21 Ohm/km) 17.42 Ohm/1000ft (57.15 Ohm/km) 42 pF/ft (140 pF/m) 76 pF/ft (250 pF/m) 4 Amps per Conductor at 25ºC

标称外屏蔽 DCR@Cond DCR1-cnv

18.54 欧姆/1000 英尺（60.83 欧姆/公里）

电压

UL Voltage Rating
300 V (CMP)

温度

UL Temperature Operating
75°C 0°C to +75°C

弯曲半径

Stationary Min. Installation Min.
4.63 in (118 mm) 4.63 in (118 mm)

最大拉伸张力

157 lb (71.2 kg)

线缆毛重

108 磅/1000 英尺

环境适应性

室内 - 静压室，室内

可持续发展

产品镜头……，提供环境产品声明 (EPD)

阻燃性/遇火反应

NFPA 262、UL 910（阻燃）、FT6

CPR合规性

CPR Euroclass：Eca

NEC/UL合规性

《民事诉讼法》第 800 条

CEC / C（UL）合规性

CMP

欧洲指令合规性

欧盟 CE 标志、欧盟指令 2015/863/EU（RoHS 2 修正案）、欧盟指令 2011/65/EU (RoHS 2)、欧盟指令 2012/19/EU (WEEE)

英国监管合规性

UKCA标识

APAC合规性

中国 RoHS II (GB/T 26572-2011)

非静压室编号

558AFJ

更新和修订

修订编号：0.540 修订日期：09-07-2025

更新和修订

修订编号：0.540 修订日期：09-07-2025
