产品编号: 5100FE

Security & Sound, 2 Conductor 14 AWG, BC, Shielded, CL3R, FPLR

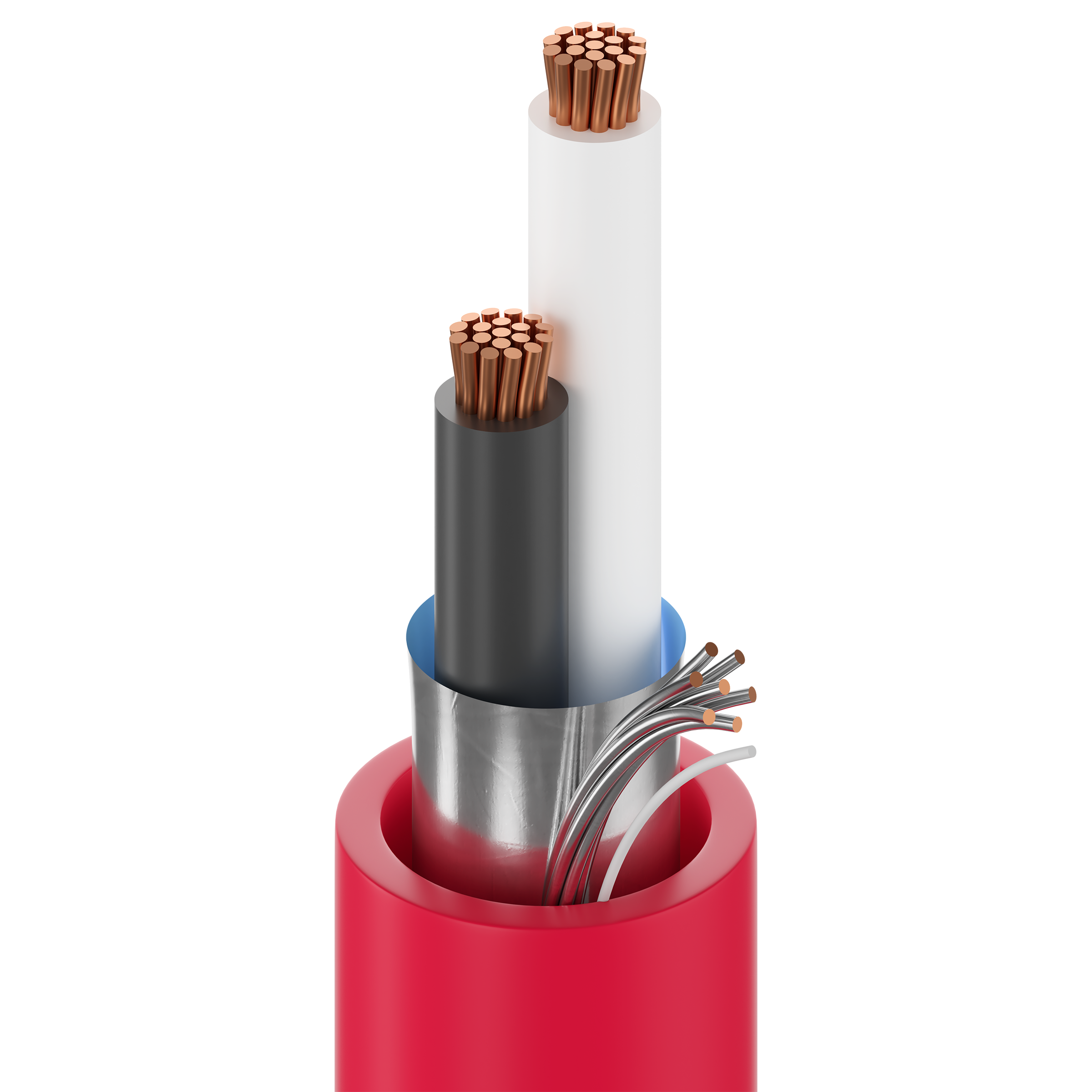

Security & Commercial Audio Cable, Riser-CL3R-FPLR, 2-14 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

  • 上架时间:
    Global
  • 状态:
    有源
5100FE
  • 5100FE
1 的 1

规格

Expand All

Suitable Applications

Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 2 14 AWG 19x26 BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.011 in (0.28 mm) 0.092 in (2.3 mm) Black, White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.222 in (5.64 mm) Yes

Overall Cable Diameter (Nominal)

0.222 in (5.64 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Inductance Max. Current
Conductor(s) 2.54 Ohm/1000ft 54 pF/ft (180 pF/m) 97.25 pF/ft (319.1 pF/m) 0.15 µH/ft (0.49 µH/m) 25 Amps per conductor @ 30°C

Nom Outer Shield DCR@Cond DCR1-cnv

10 Ohm/1000ft (33 Ohm/km)

Voltage

UL Voltage Rating
300 V (CL3R, FPLR)

Temperature

UL Temperature Operating
75°C -20°C to +75°C

Bend Radius

Stationary Min. Installation Min.
2.2 in (56 mm) 2.2 in (56 mm)

Max. Pull Tension

104.1 lbs (47.22 kg)

Bulk Cable Weight

37 lbs/1000ft

Environmental Suitability

Indoor - Riser, Indoor

Flammability / Reaction to Fire

UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 760, CL3R, FPLR

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6100FH

Update and Revision

Revision Number: 0.530 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.530 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

零件编号

Item # Color Putup Type Length UPC/EAN Footnote
5100FE.00152 Chrome Reel 152 m 8719605007704
5100FE.00305 Chrome Reel 305 m 8719605007728
5100FE.001000 Chrome Reel 1,000 m 8719605007698
5100FE 008500 Gray Reel 500 ft 612825156222
5100FE 0081000 Gray Reel 1,000 ft 612825156246 C
5100FE 008U1000 Gray UnReel 1,000 ft 612825423591
5100FE 008Z1000 Gray ReelTuff Box 1,000 ft 612825156260
5100FE.003000 Gray Reel 3,000 m 8719605007711
5100FE 0021000 Red Reel 1,000 ft 612825423584 C
5100FE 002Z1000 Red ReelTuff Box 1,000 ft 612825156239
