产品编号: 7962A

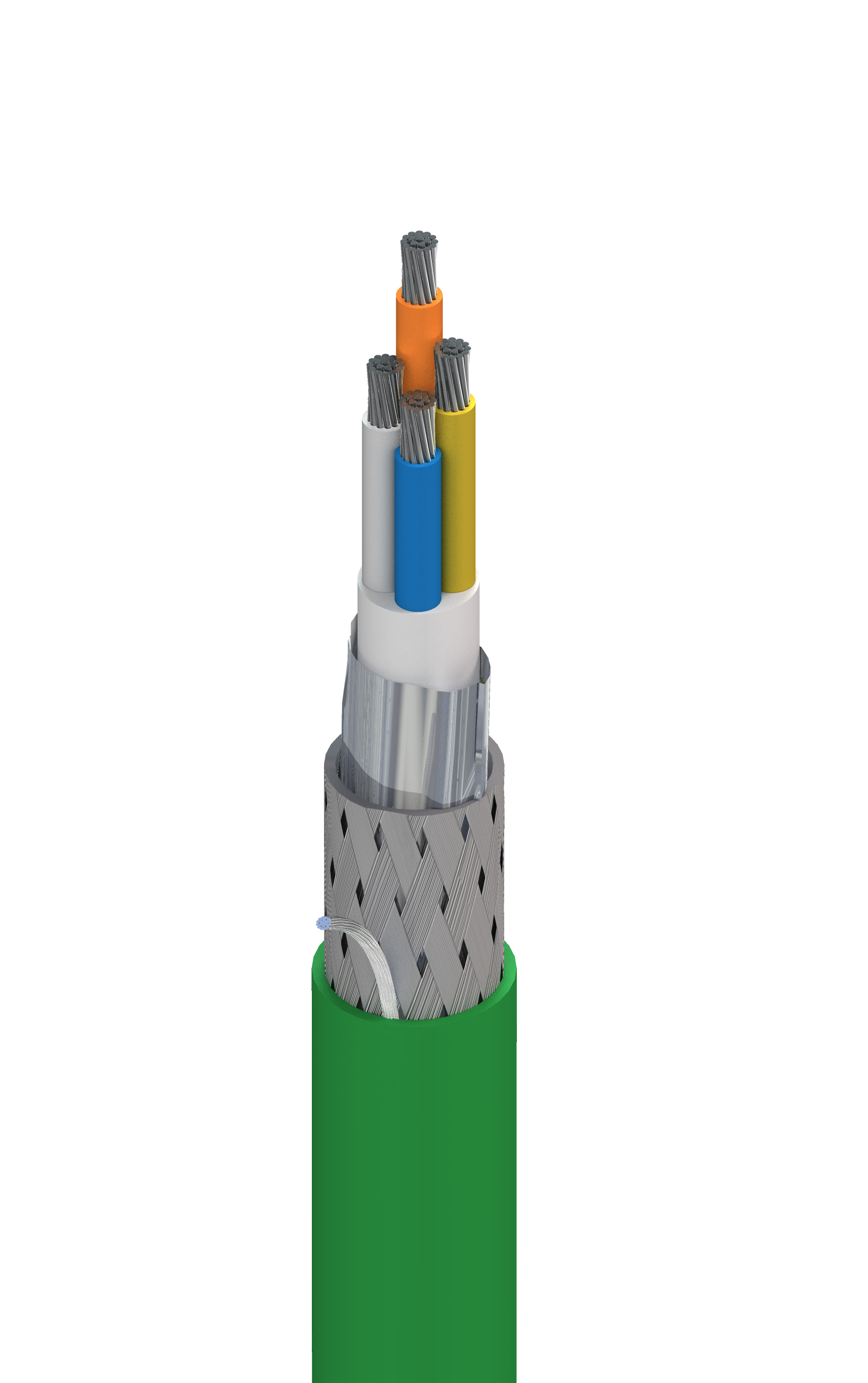

DataTuff® Cat 5e, Quad (2 Pr) #22 Str TC, PO Ins, OS+TC Brd, TPE Jkt, CM CMX-Outdoor

Industrial Ethernet Cat 5e, Quad (2 Pair) 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, TPE Outer Jacket, CM CMX-Outdoor

  • 上架时间:
    Global
  • 状态:
    有源
7962A
  • 7962A
1 的 1

规格

Expand All

Suitable Applications

PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Conductor

Element Size Stranding Material
Quad(s) 22 AWG 19x34 TC - Tinned Copper

Insulation

Material Color Code
PO - Polyolefin White, Blue, Yellow, Orange

Inner Jacket

Material Nom. Diameter
PE - Polyethylene 0.169 in (4.29 mm)

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%

Outer Jacket

Material Nom. Diameter Ripcord
TPE - Thermoplastic Elastomer 0.276 in (7.01 mm) No

Overall Cable Diameter (Nominal)

0.276 in (7.01 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
57 Ohm/km (17 Ohm/1000ft) 150 pF/ft

Delay

Max. Delay Nom. Velocity of Prop.
552 ns/100m 70%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.6 65.3 62.3 63.2 63.8 60.8 23 100 ± 20.2 105 ±10
4 4.8 56.3 53.3 56.3 51.7 48.7 23 100 ± 14.2 100 ±10
8 6.8 51.8 48.8 46.2 45.7 42.7 23 100 ± 11.3 100 ±10
10 7.6 50.3 47.3 43.9 43.8 40.8 25 100 ± 11.3 100 ±10
16 9.7 47.3 44.3 35.2 39.7 36.7 25 100 ± 11.3 100 ±10
20 10.8 45.8 42.8 36.5 37.7 34.7 25 100 ± 11.3 100 ±10
25 12.2 44.3 41.3 34.2 35.8 32.8 25.5 100 ± 11.3 100 ±10
31.25 13.7 42.9 39.9 31.3 33.9 30.9 23.6 100 ± 13.2 100 ±10
62.5 19.8 38.4 35.4 21.6 27.8 24.8 21.5 100 ± 16.9 100 ±10
100 25.6 35.3 32.3 17.1 23.8 20.8 20.1 100 ± 20.0 100 ±10

Voltage

UL Voltage Rating
300 V (CM, CMX-Outdoor), 600 V (AWM 20626)

Temperature

UL Temperature Operating Installation Storage
75°C -40°C To +80°C -20°C To +60°C -40°C To +80°C

Bend Radius

Stationary Min.
2.560 in (65.02 mm)

Max. Pull Tension

55 lbs (25 kg)

Bulk Cable Weight

45 lbs/1000ft (67 kg/km)

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test

NEC / UL Compliance

Article 800, CM, CMX-Outdoor, ITC, PLTC

AWM Compliance

AWM 20626

CEC / C(UL) Compliance

CMX-Outdoor

NEMA Compliance

NEMA WC-63.1

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-6

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Operating Temperature subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. Limits below 4 MHz are for information only.

Update and Revision

Revision Number: 0.578 Revision Date: 10-08-2025

Update and Revision

Revision Number: 0.578 Revision Date: 10-08-2025


Report An Error

零件编号

Item # Color Putup Type Length UPC/EAN
7962A+0085 Green Reel 85 m 8719605196156
7962A.00305 Green Reel 305 m 8719605016812
7962A.00610 Green Reel 610 m 8719605016829
7962A 1SW1000 Green, RAL 6018 612825367024
7962A 1SW2000 Green, RAL 6018 612825367031
