产品编号: 5504G1

Security & Sound, #22-1pr, #22-4c TC, Shielded Pair, CM, Water-Blocked

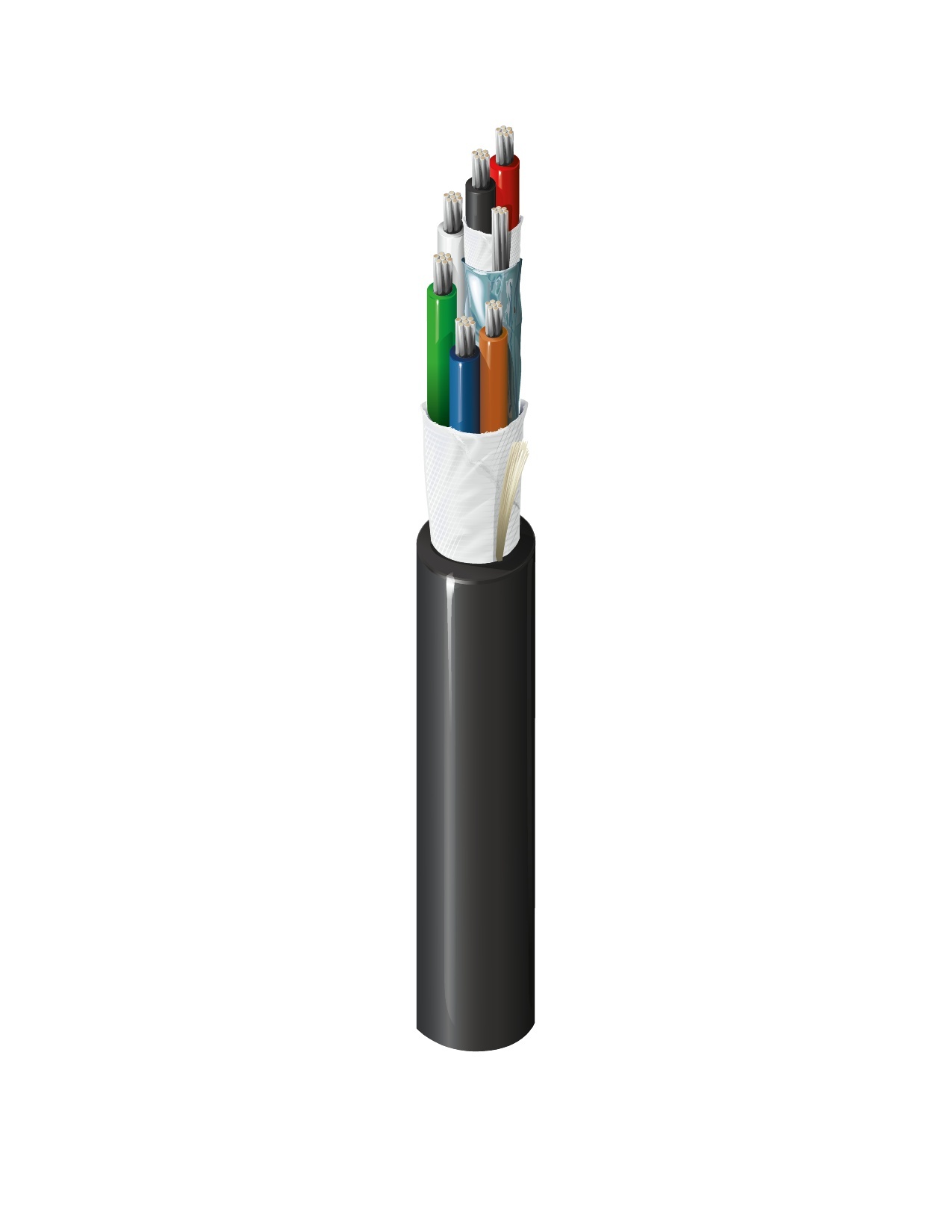

Security & Sound Cable, Rated-CM, 1-22 AWG stranded tinned copper pair with PVC insulation and Beldfoil® shield, 4-22 AWG stranded tinned copper pair with PVC insulation, overall waterblocking tape and PVC jacket with ripcord

  • 上架时间:
    Global
  • 状态:
    有源
5504G1
  • 5504G1
1 的 1

规格

Expand All

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 4 22 7x30 TC - Tinned Copper
Pair(s) 1 22 7x30 TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.051 in (1.3 mm) White, Green, Brown, Blue
PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.051 in (1.3 mm) Black & Red

Inner Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

Waterblocking

Waterblock Tape

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.025 in (0.64 mm) 0.259 in Yes

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Inductance Max. Current
Conductor(s) 17.85 Ohm/1000ft 44.5 pF/ft (146 pF/m) 80.1 pF/ft (263 pF/m) 0.18 µH/ft (0.59 µH/m) 2.2 Amps per Conductor at 25ºC
Pair(s) 18.2 Ohm/1000ft (59.7 Ohm/km)

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
150°C -20°C To +105°C

Bend Radius

Stationary Min. Installation Min.
2.59 in (65.8 mm) 2.59 in

Max. Pull Tension

60.1 lbs (27.3 kg)

Bulk Cable Weight

33 lbs/1000ft

Environmental Suitability

Indoor, Outdoor

Flammability / Reaction to Fire

UL1685 UL Loading, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.327 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.327 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

零件编号

Item # Color UPC Footnote
5504G1 0101000 Black 612825163787 C
